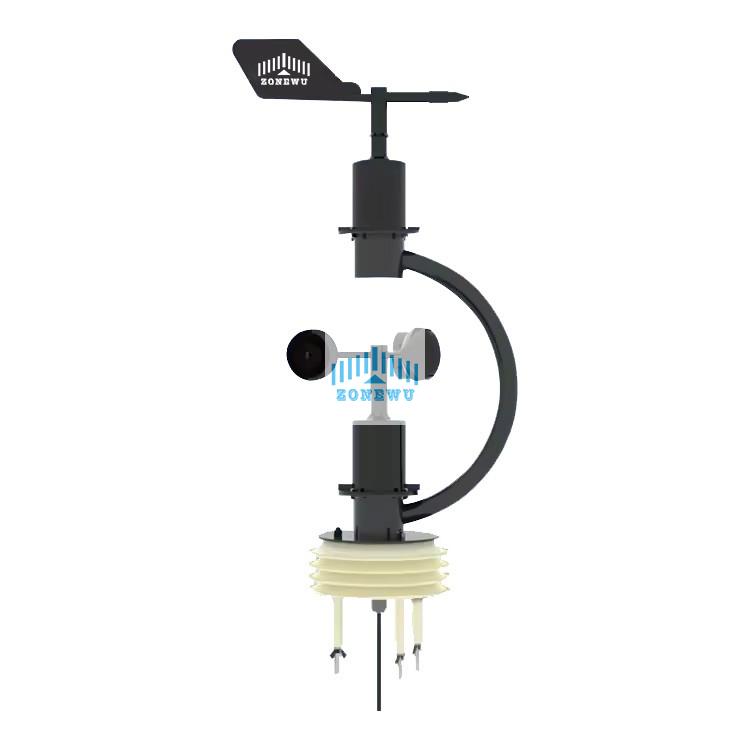

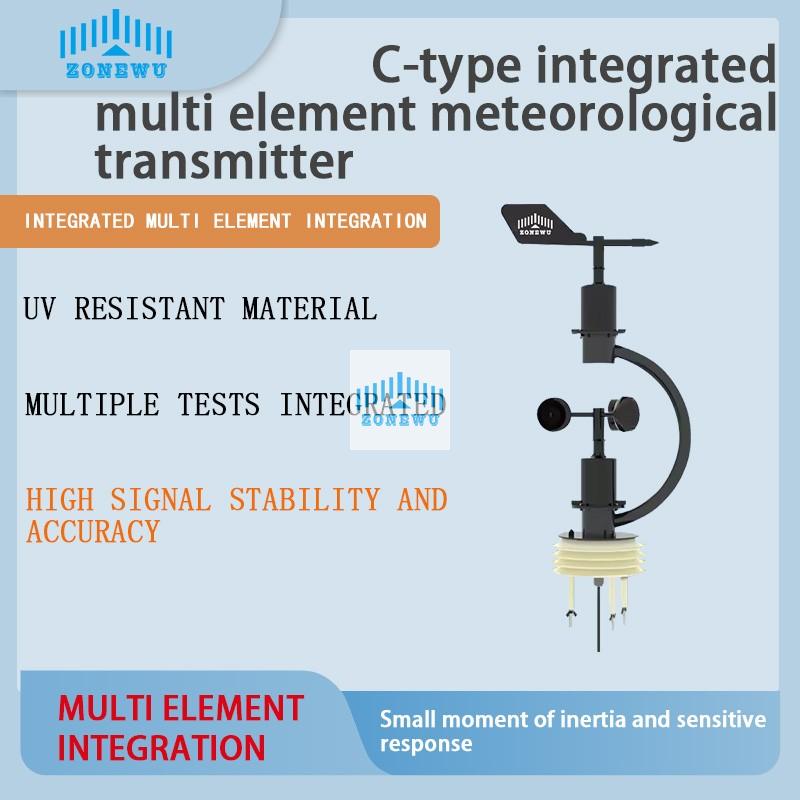

C-type integrated multi element meteorological transmitter

C-type integrated multi element meteorological transmitter

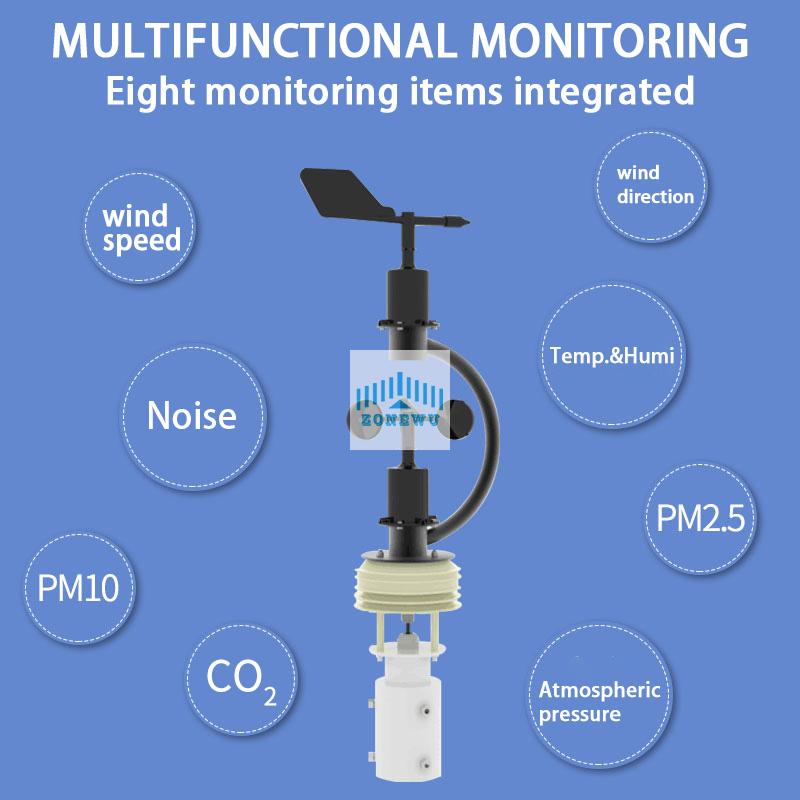

This product is widely suitable for various occasions that require measuring environmental temperature and humidity, noise, air quality, carbon dioxide, atmospheric pressure, etc. It is safe and reliable, has a beautiful appearance, is easy to install, and is durable.

C-type integrated multi element meteorological transmitter4.jpg

Specifications

Attribute
Customized support	OEM, ODM, OBM
Name	Greenhouse automated wireless all in one weather station
Description	modbus weather station
Output signal	RS485
Operation temperature	-40℃~+60℃
Response time	0.2s

Power supply	10-30VDC
Max. power consumption	RS485 Output	0.8W
Measuring range	Wind speed	0~60m/s
	wind direction	8 directions
	humidity	0%RH~99%RH
	temperature	-40℃~+120℃
	Atmospheric pressure	0-120Kpa
	noise	30dB~120dB
	PM10 PM2.5	0-1000ug/m3
	CO2	0-5000ppm
Accuracy	Wind speed	±(0.2+0.03V)m/s(60%RH,25℃)
	humidity	±3%RH(60%RH,25℃)
	temperature	±0.5℃（25℃）
	Atmospheric pressure	±0.15Kpa@25℃ 101Kpa
	noise	±0.5dB
	PM10 PM2.5	±3%FS(@100μg/m3,25℃,50%RH)
	CO2	±(50ppm+ 3%F·S) (25℃)
