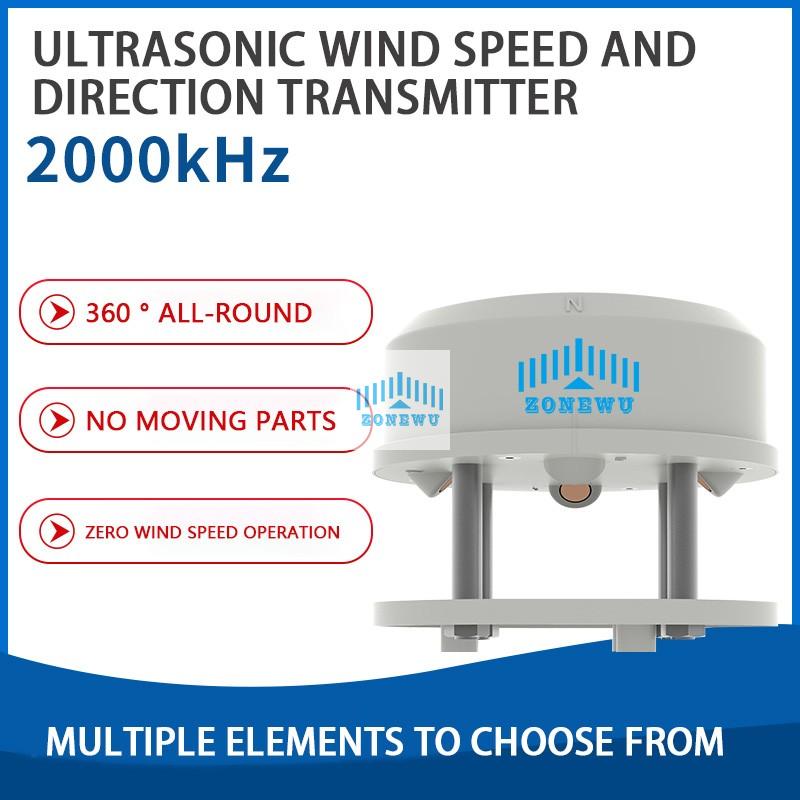

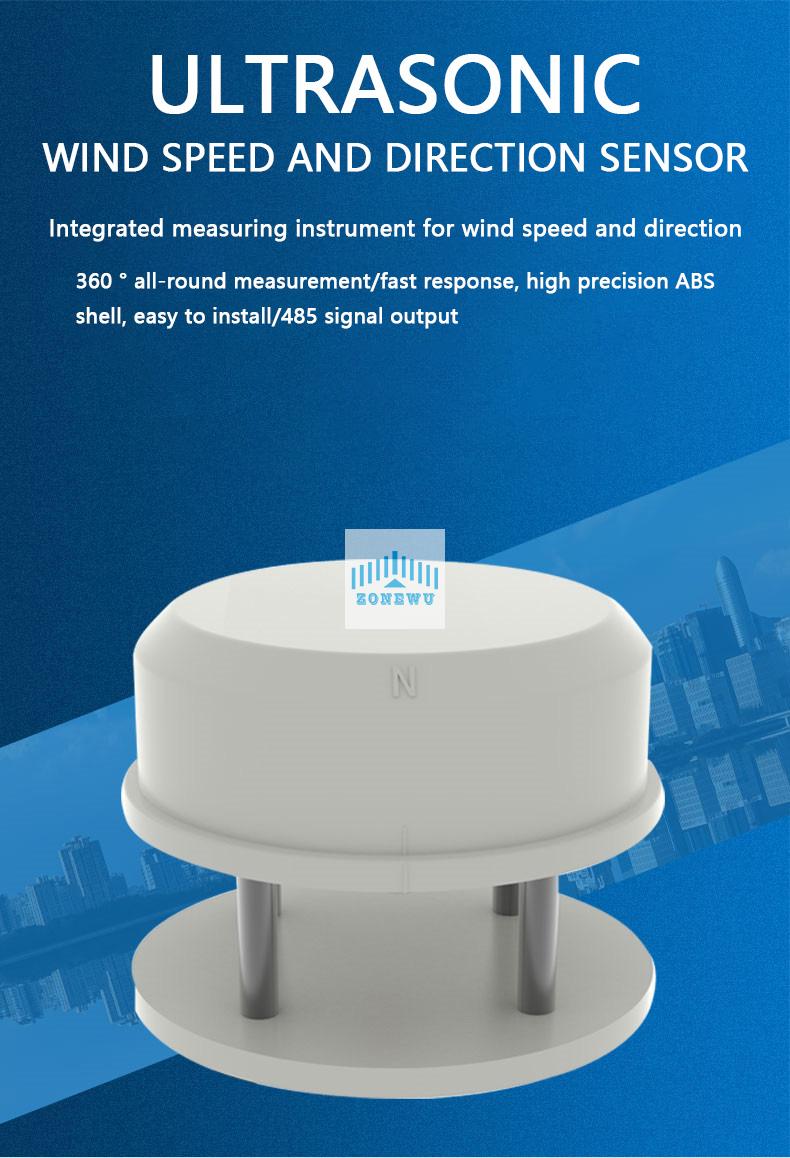

Ultrasonic wind speed and direction transmitter (2000kHz)

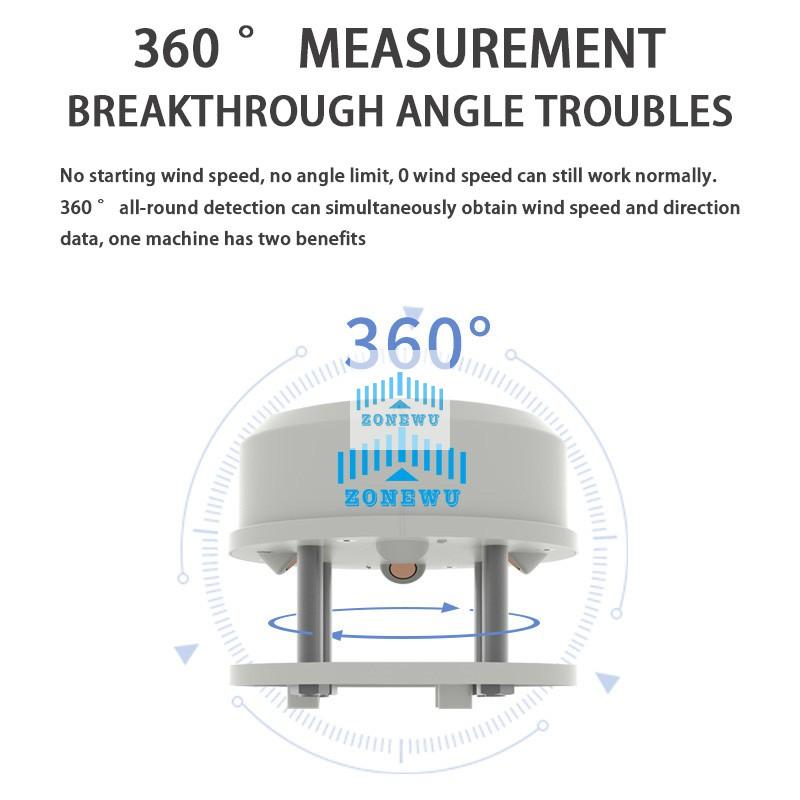

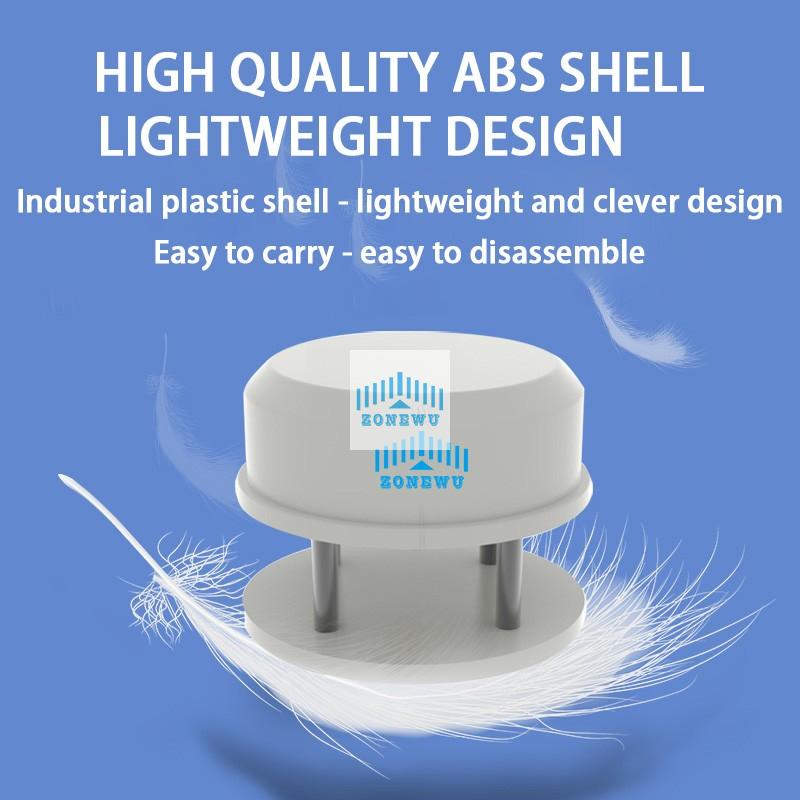

The ultrasonic wind speed and direction sensor is a wind speed and direction measurement instrument developed based on the principle of ultrasound. It uses the transmitted sound wave pulse to measure the time difference at the receiving end to calculate wind speed and direction. This sensor can simultaneously measure instantaneous values of wind speed and direction. The device with built-in electronic compass selection no longer requires orientation during installation, only needs to ensure horizontal installation. The entire machine shell is made of high-quality ABS material, which is lightweight, has no moving parts, is sturdy and durable, and does not require maintenance or on-site calibration

Ultrasonic wind speed and direction transmitter1.jpg

Ultrasonic wind speed and direction transmitter2.jpg

Carbon gathering wind direction sensor5.jpg

Specifications






Attribute

Customized support

OEM, ODM, OBM

Name

Ultrasonic wind speed and direction transmitter

Keywords

wind speed and direction transmitter

Output signal

RS485/4-20mA/0-5V/0-10V

Working temperature

-40-60 , 0-95% RH (non condensation)

Response time

1s

Wind Speed Measurement

Range

0-60m/s (customizable)

Resolution

± (0.2m/s ± 0.02 * V) (V is the actual wind speed) (60% RH, 25 )

Resolution ratio

0.01 m/s

Wind Direction Measurement

Range

0~359°

Resolution

±3°(60%RH,25℃)

Resolution ratio

1°



Physical Characteristics

Power Supply

10-30VDC

Material

ABS Plastic

Installation

Nstallation of bracket
