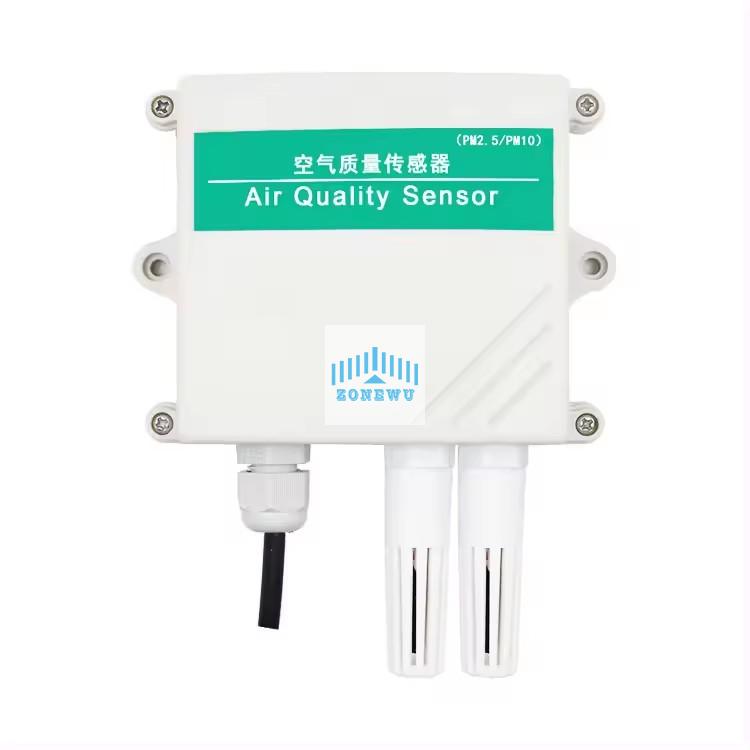

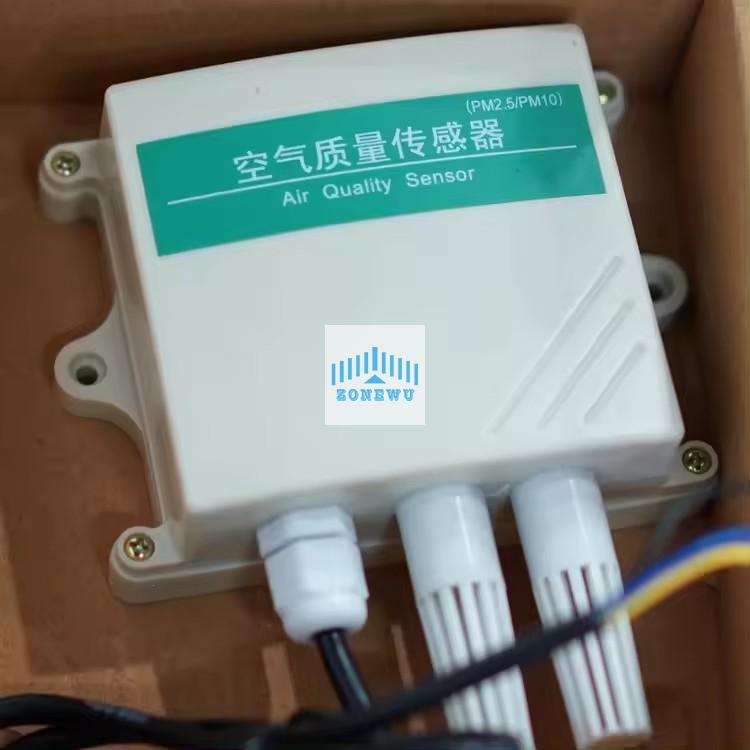

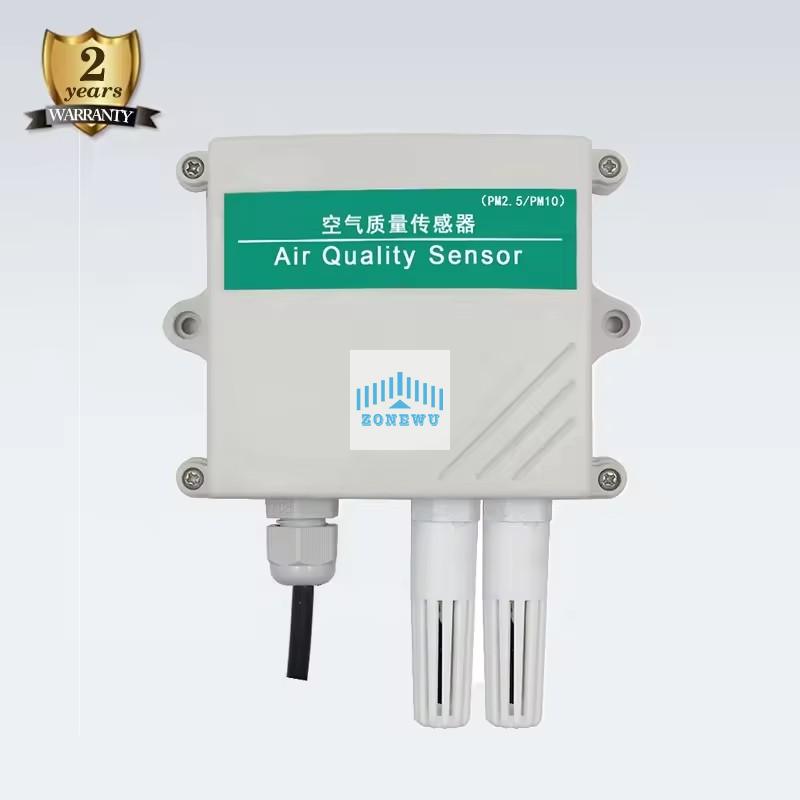

PM2.5/PM10 Sensor

The PM2.5/PM10 sensor is an industrial grade universal particle concentration transmitter that adopts the principle of laser scattering measurement. It uses a unique dual frequency data acquisition technology to screen and obtain the number of particles with equivalent particle size per unit volume, and uses a scientifically unique algorithm to calculate the mass concentration of particles with equivalent particle size per unit volume. It can be used in outdoor meteorological stations, dust monitoring, libraries, archives, etc Industrial plants and other places that require PM2.5 or PM10 concentration monitoring

Specifications

Attribute
Customized support	OEM, ODM, OBM
Name	data acquisition 0-10V pm2.5 pm 10 output air quality sensor
Keywords	pm2.5 pm 10 output air quality sensor

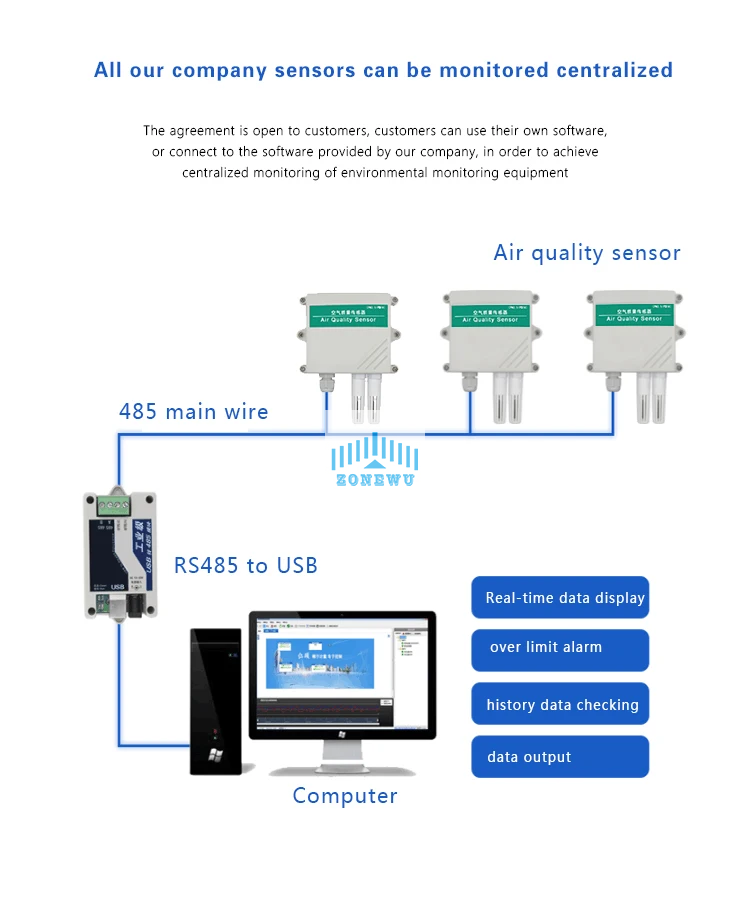

Output signal	RS485/4-20mA/0-5V/0-10V
Application	Pm 2.5 pm10 pm1.0 sensor
Responding Speed	≤90S
Warm up time	≤2min
Noise Measurement
Range	0-1000 ug / m³
Resolution	1 ug / m³
Pm2.5 Accuracy	0.1dBParticle counting efficiency: 50% @ 0.3 μ m. 98% @>=0.5 μ M. PM2.5 accuracy: ± 3% FS (@ 0~100) μ G/m3, 25 ℃, 50% RH)Particle counting efficiency: 50% @ 0.3 μ m. 98% @>=0.5 μ M. PM2.5 accuracy: ± 3% FS (@ 0~100) μ G/m3, 25 ℃, 50% RH)
Physical Characteristics
Power Supply	10-30VDC

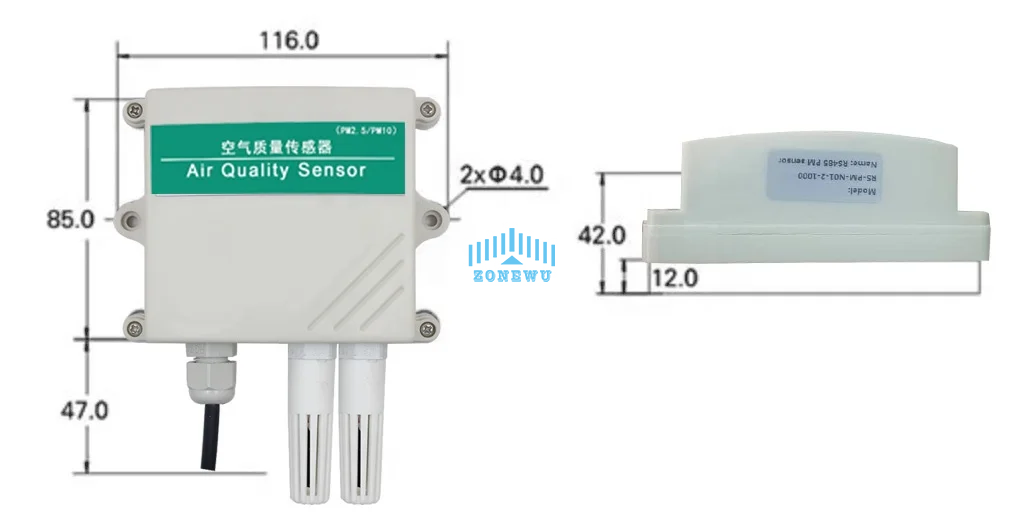

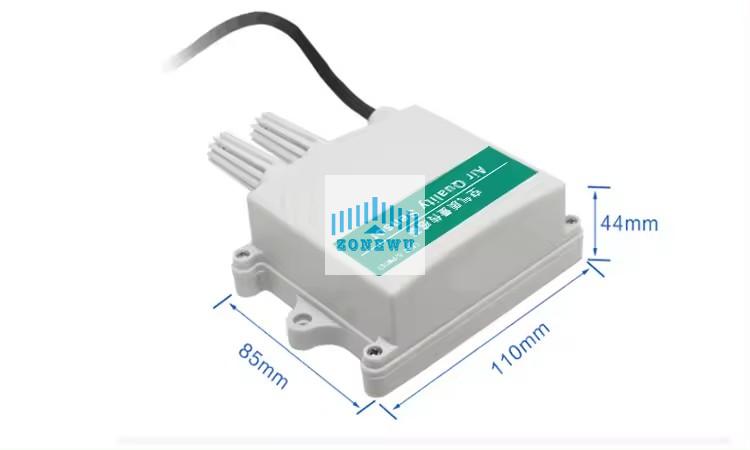

Dimensions	110x85x44 mm
Material	ABS Plastic
Installation	Wall Mounting
