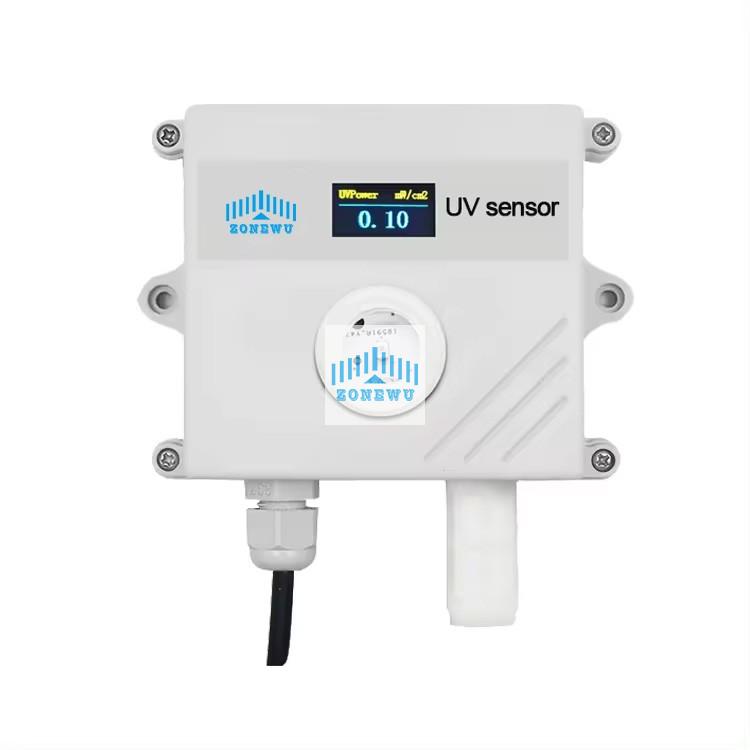

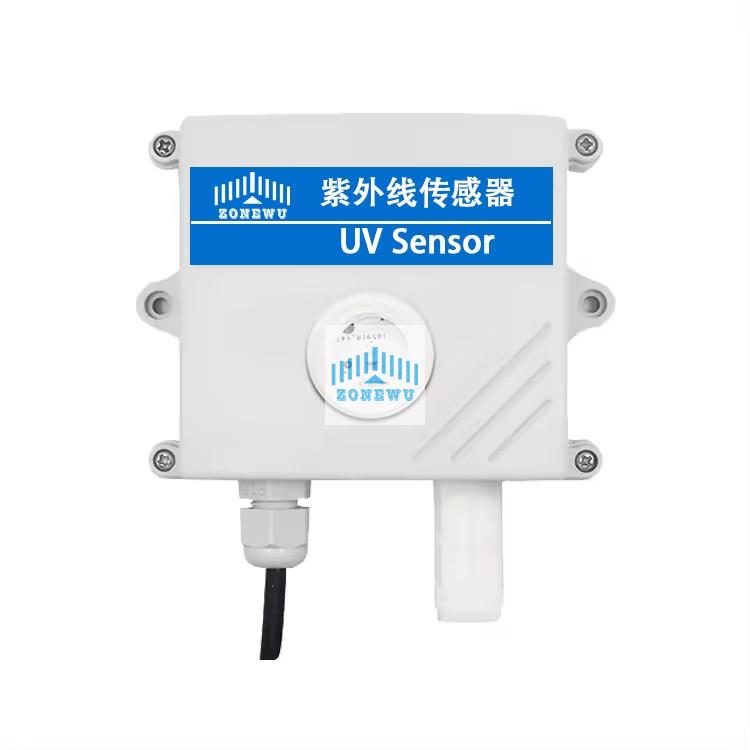

UV Sensor

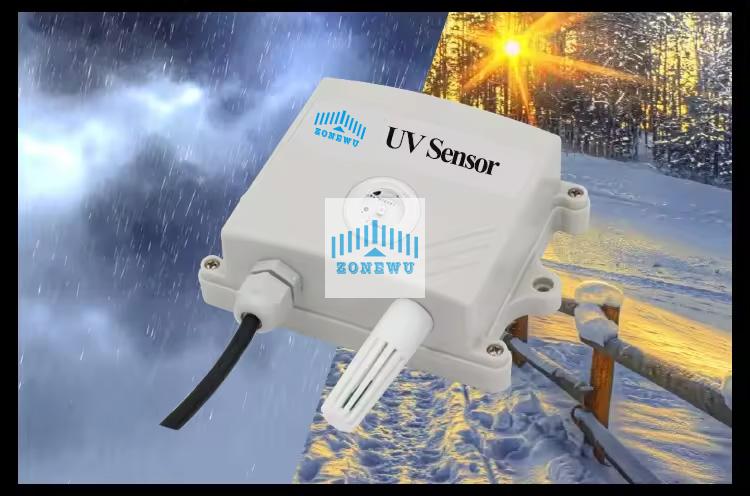

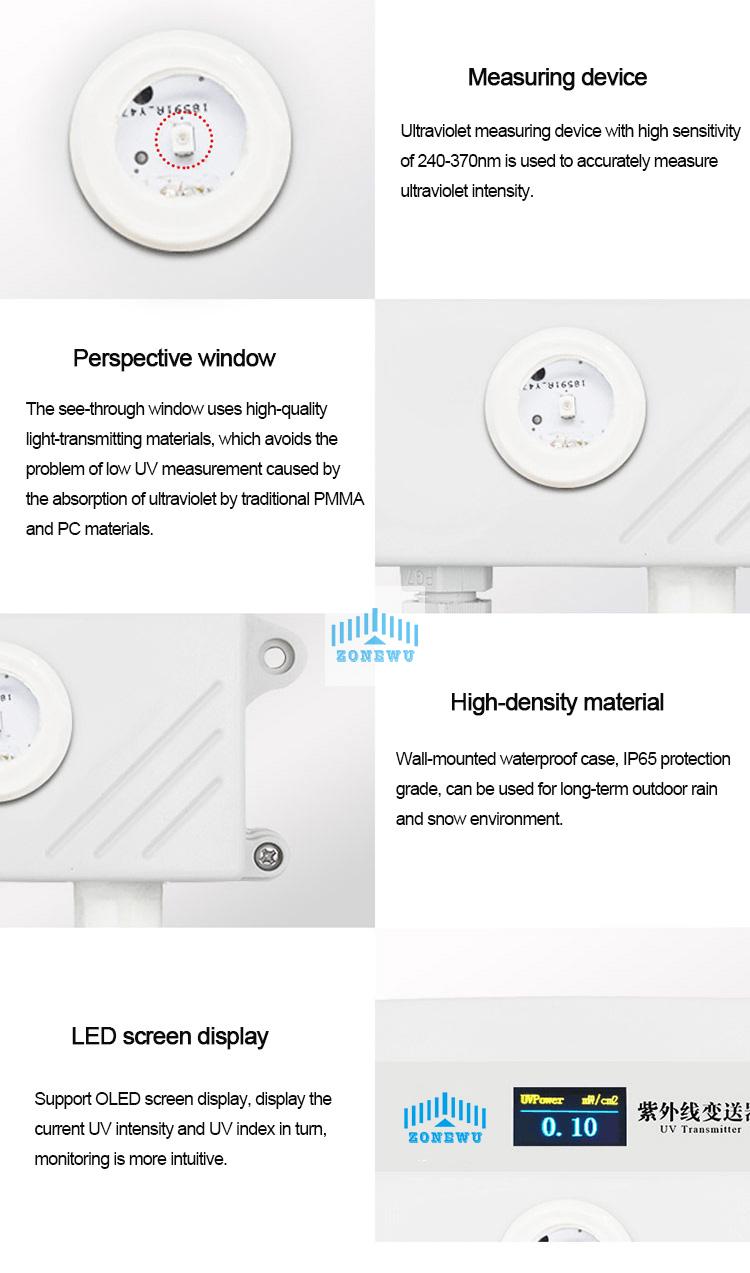

This product is based on the principle of converting ultraviolet rays into measurable electrical signals using photosensitive elements. The product integrates temperature and humidity sensors, providing more comprehensive measurement data. The product shell is a wall mounted high protection level shell, with a protection level of IP65 and rain and snow resistance.

UV Sensor5.jpg

UV Sensor7.jpg

Detecting Images

UV Sensor3.jpg

UV Sensor8.jpg

Specifications

Attribute
Customized support	OEM, ODM, OBM
Name	UV Temperature and Humidity Transmitter digital UV sensor RS485
Measuring wavelength range	Wavelength 240-370 nm
Output signal	4-20mA/0-5V/0-10V/RS485
Operation temperature	-40℃~+60℃
Response time	≤1s
UV moisture
Range	0-15 mW/ cm²
Repeatability	0.01 mW/cm²
Detection accuracy	±10%FS(@365nm,60%RH,25℃)
Physical Characteristics
Power Supply	5-30VDC
Probe material	ABS Plastic

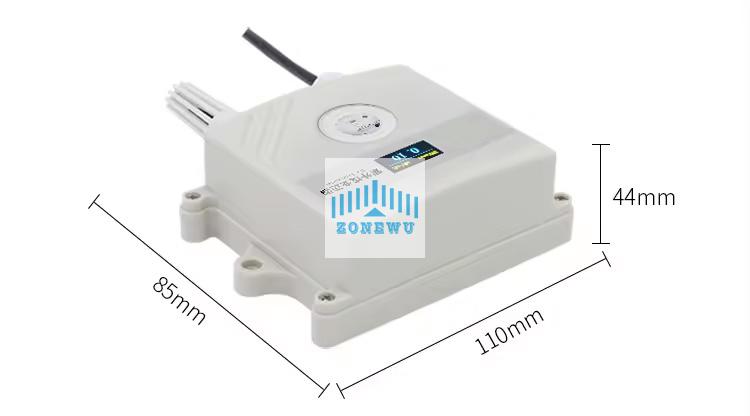

Physical dimensions	1108544mm
