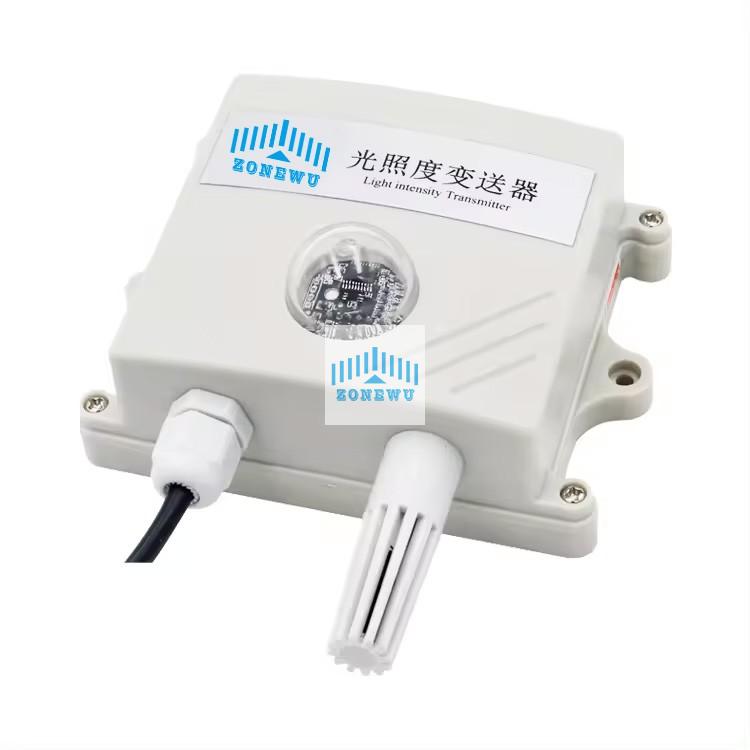

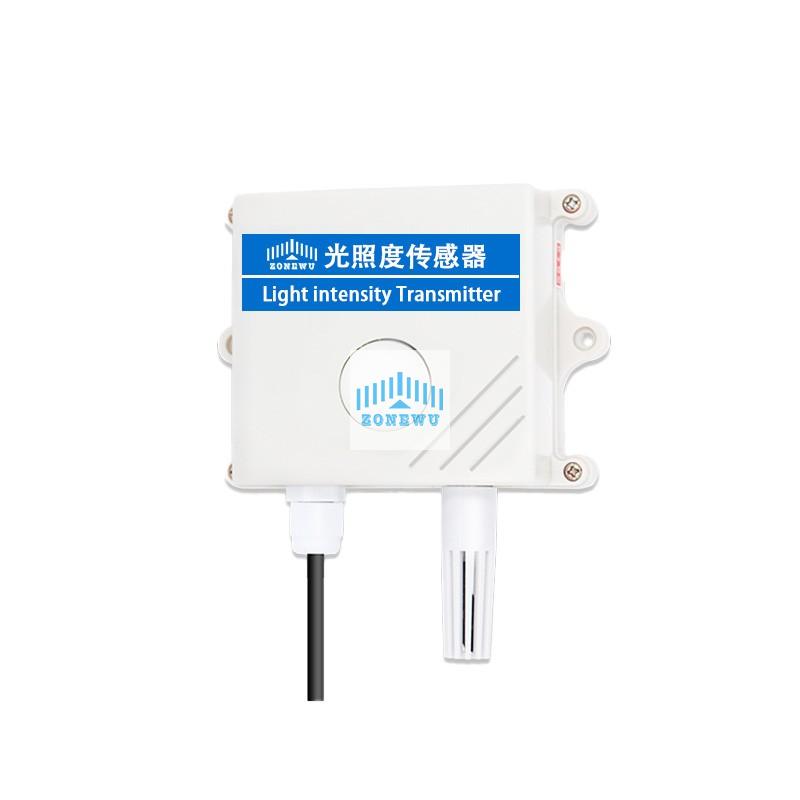

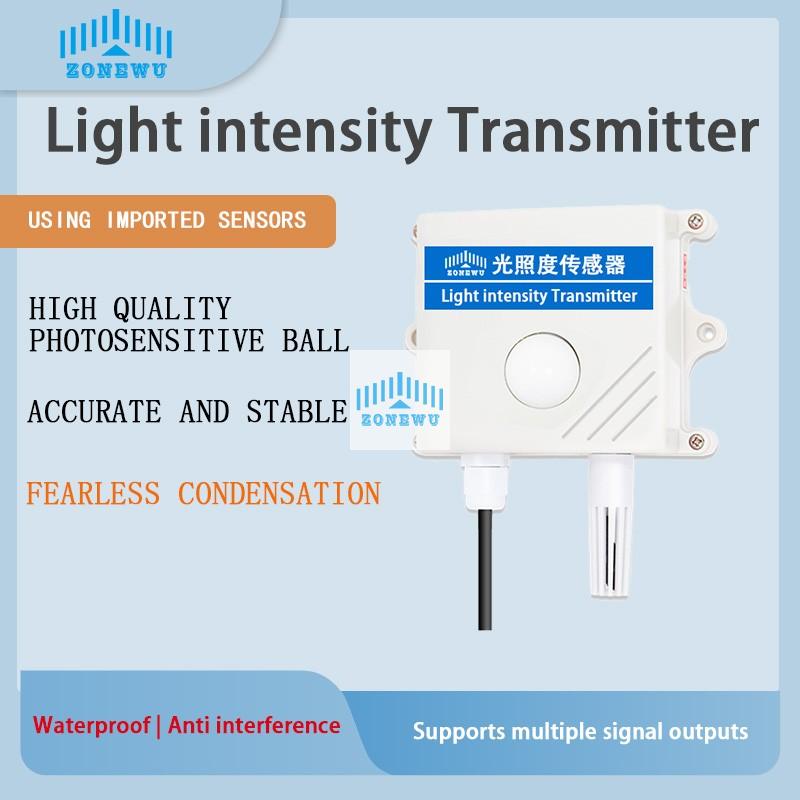

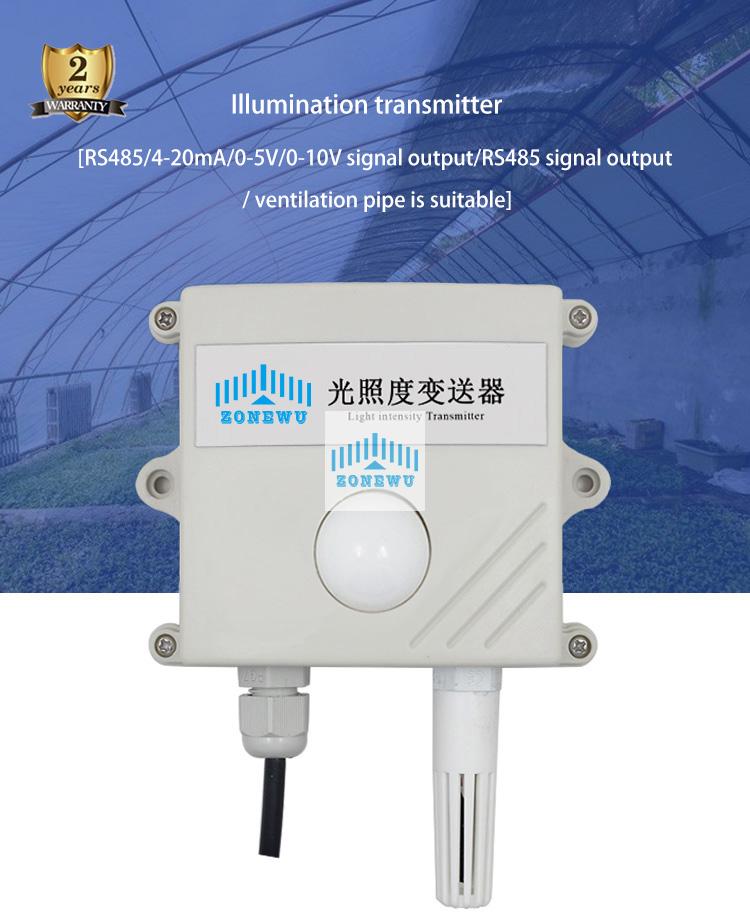

RS485 industrial grade light intensity Transmitter

RS485 industrial grade light intensity Transmitter

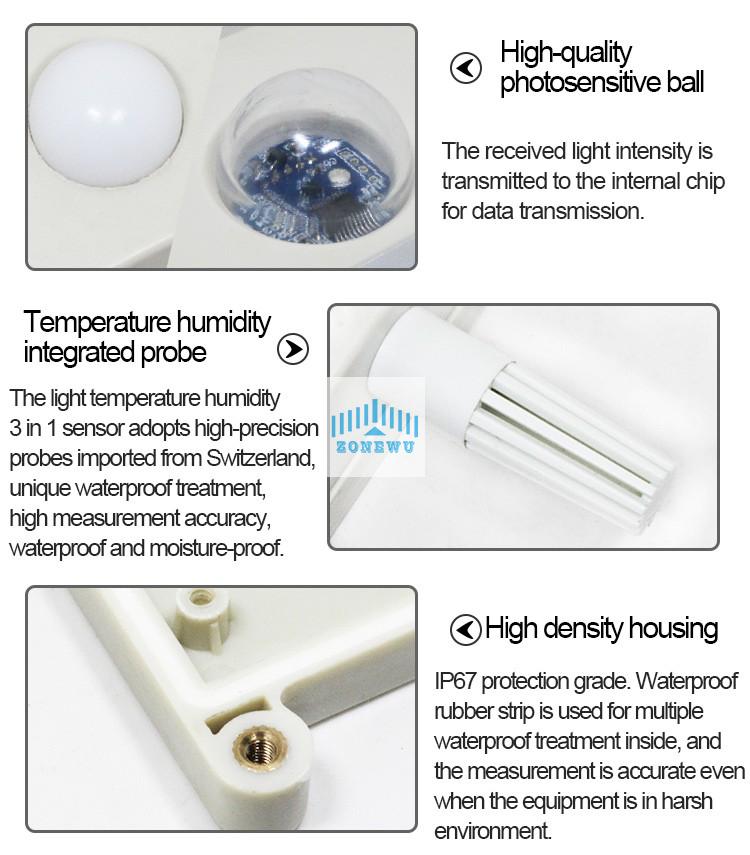

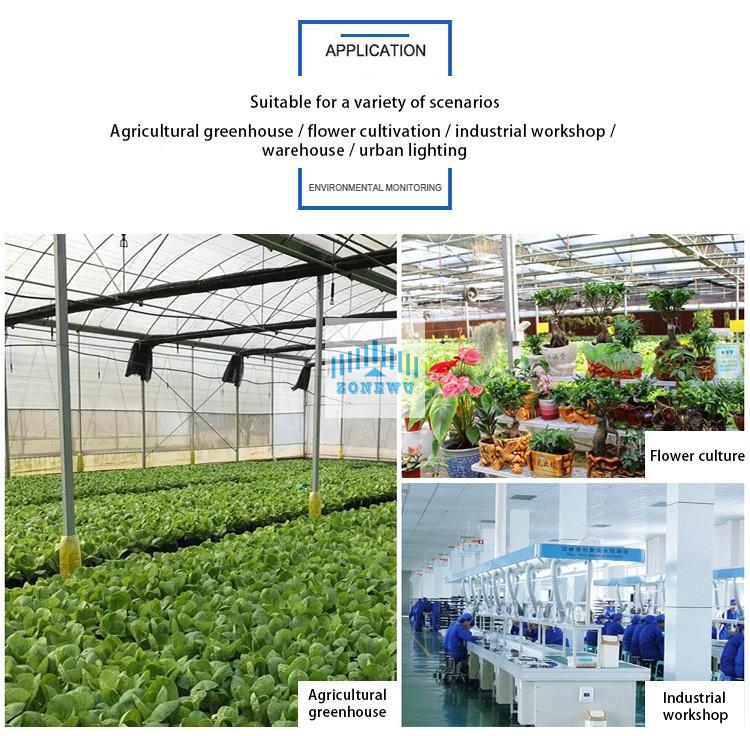

Our illuminance sensor is widely applied in agricultural greenhouses or flower cultivation where needs the temperature and humidity monitor or light intensity .The three parts about input power supply, temperature measurement unit and signal output of sensor are completely isolated. Safe and reliable, beautiful appearance, easy installation.

Light transmitter6.jpg

Light transmitter7-1.jpg

Specifications

Attribute
Customized support	OEM, ODM, OBM
Name	Digital lux meter smart sensor outdoor lux light sensor with rs485
Keywords	illumination tester
Output signal	4-20mA/0-5V/0-10V/RS485
Operation temperature	-40℃~+60℃
Response time	≤1s
Light intensity moisture
Range	0-65535Lux;0-200000Lux
Long-term stability	≤5%/y
Detection accuracy	±7%(25℃)
Physical Characteristics
Power Supply	10-30VDC
Probe material	ABS Plastic

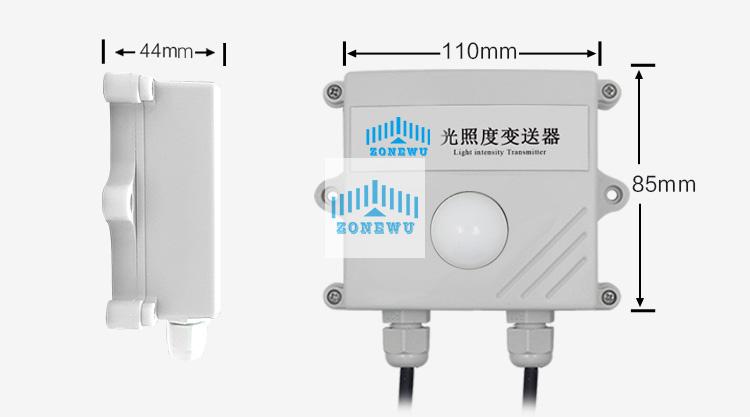

Physical dimensions	1108544mm
