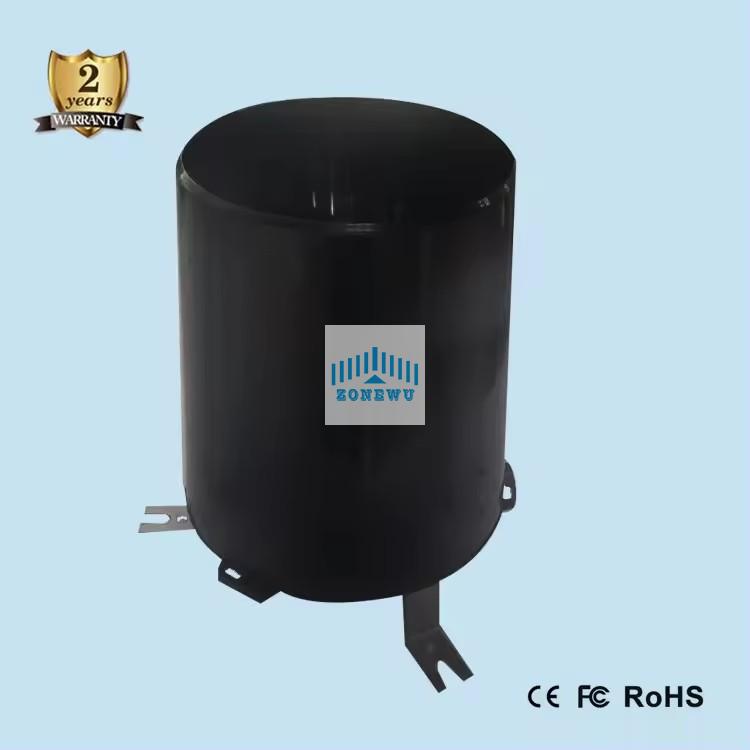

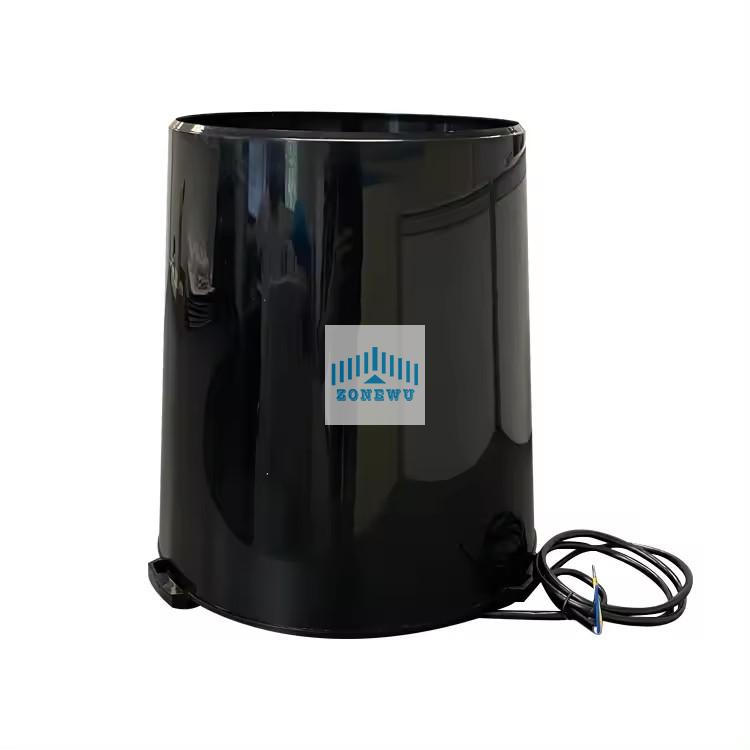

Tipping bucket rain sensor

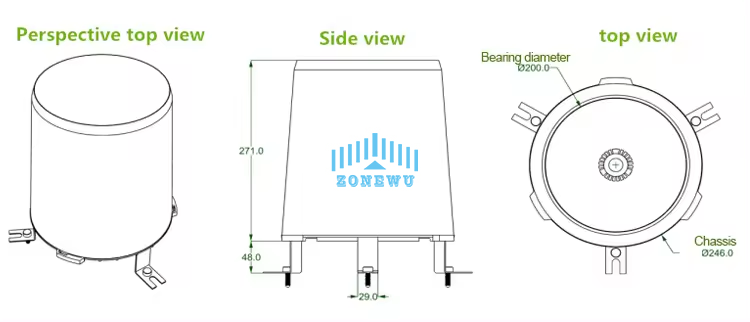

Detecting Images

1. Small size, easy to install; high precision and good stability

2. Good linearity, long transmission distance and strong anti-interference ability

3. Design the mesh at the funnel to prevent debris and other debris from blocking the downstream flow.

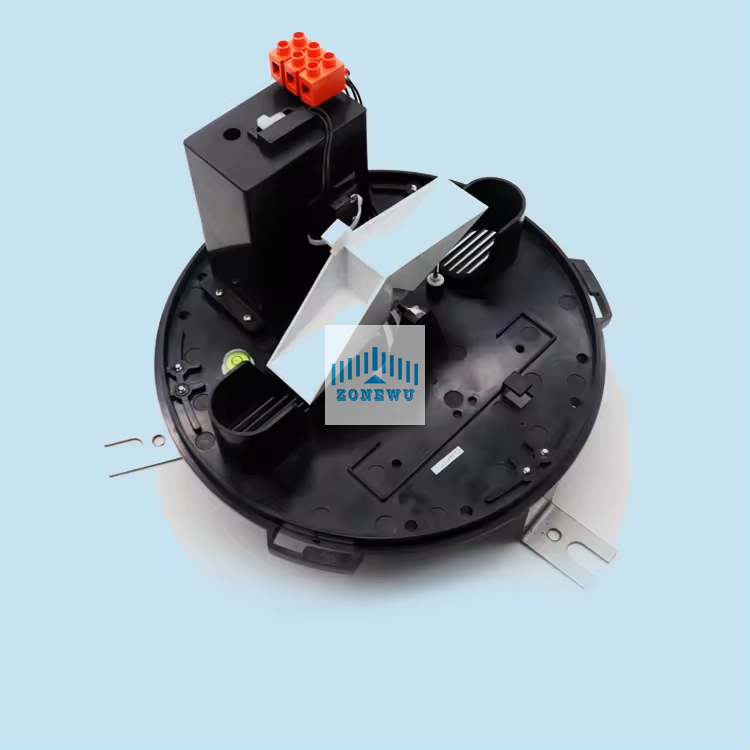

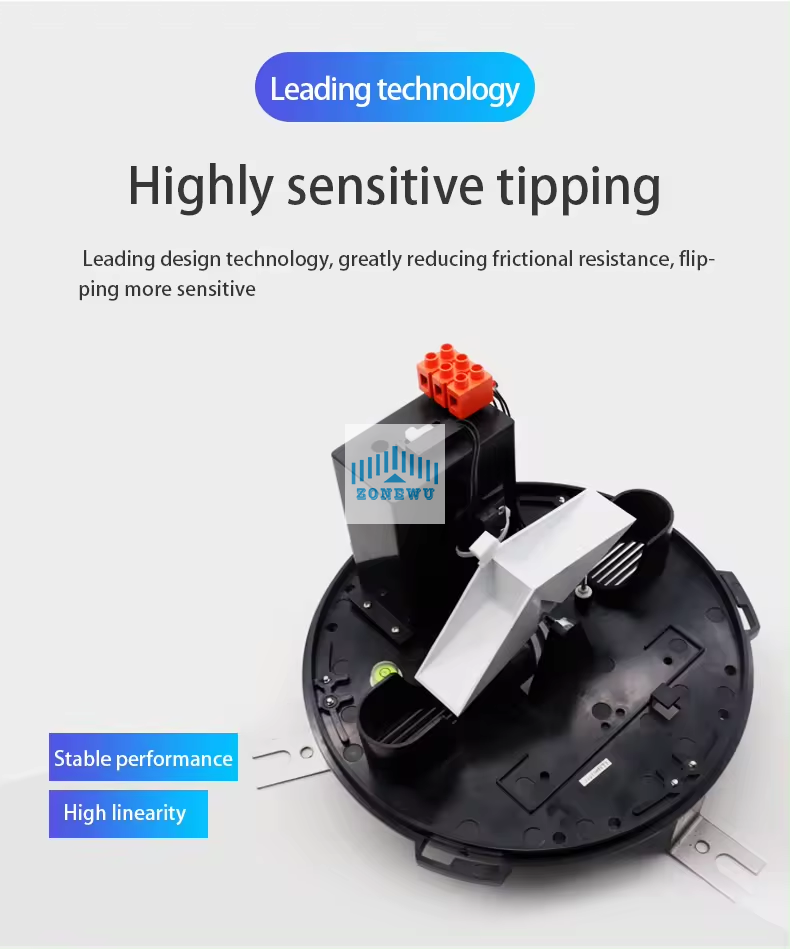

4.The tipping part support system is well-made and the friction torque is small, so the tipping part is turned over sensitively, the performance is stable, and the work is reliable.

5. The instrument casing is made of ABS engineering plastic, which can not be rusted and has good appearance quality.

6. The rain inlet is made of ABS engineering plastic, which has high finish and small error caused by water retention.

7. There is a horizontal adjustment bubble inside the chassis, which can help the bottom angle to adjust the equipment to the best level.

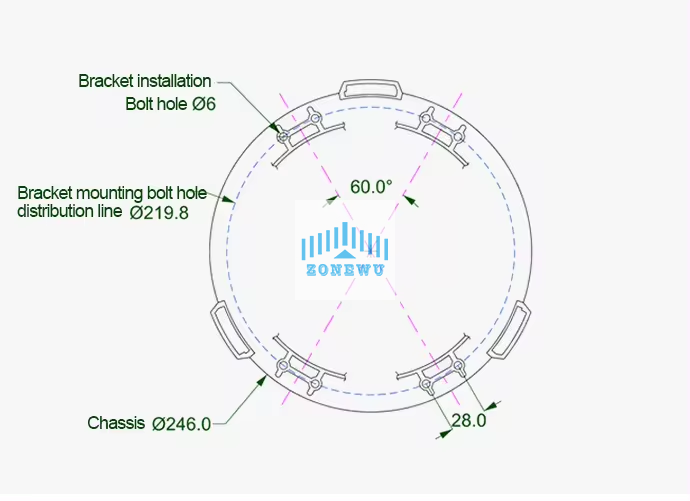

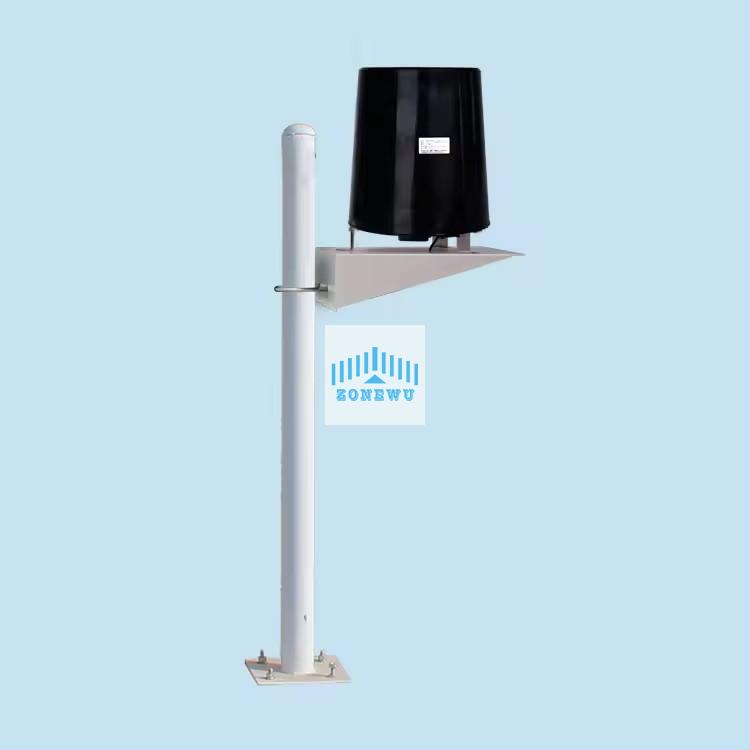

Fixed by screws, there are three supporting feet on the lower part of the base. Use bolts to observe the position of the horizontal bubble, and fix the base tightly on the pre-built platform to keep the whole instrument at the best level and ensure the rainfall data. The accuracy. The three legs are fixedly mounted on the plane, and each of the three corners has a top wire, which can be balanced by the top wire. When installing on the ground, it should be installed on a higher terrain and should not be immersed in water due to rain. It can also be used for bracket mounting.

Specifications
