Infrared optical rainfall transmitter

Industrial grade optical rain gauges accurately and reliably measure rainfall and intensity. This is a maintenance free optical rainfall sensor that can be used for various rainfall monitoring and control applications. Unlike traditional mechanical rain sensors, optical rain sensors are smaller in size, more sensitive, more reliable, and more intelligent.

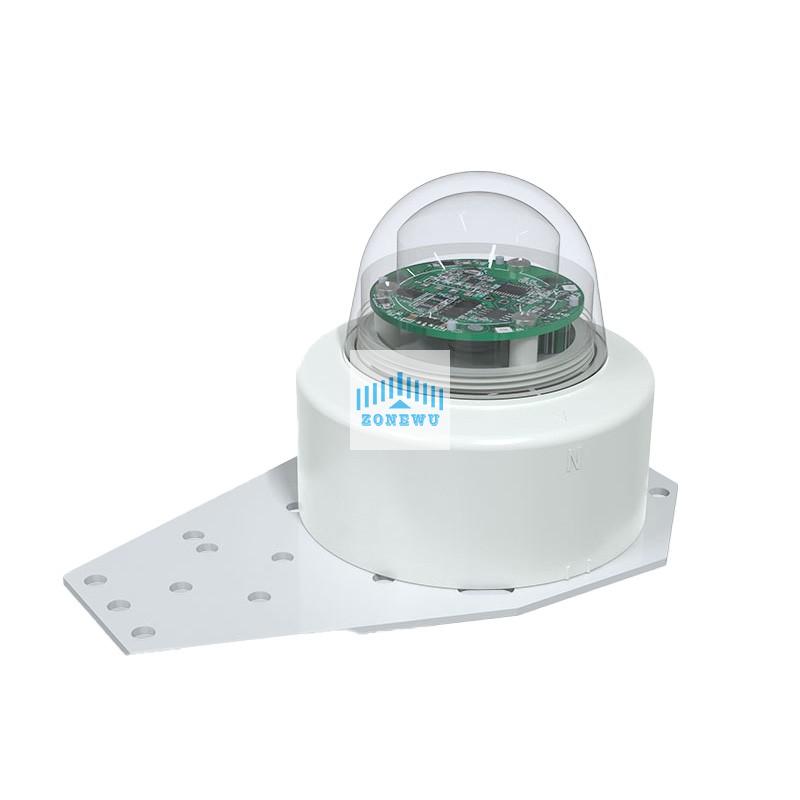

Infrared Light Rainfall Sensor5.jpg

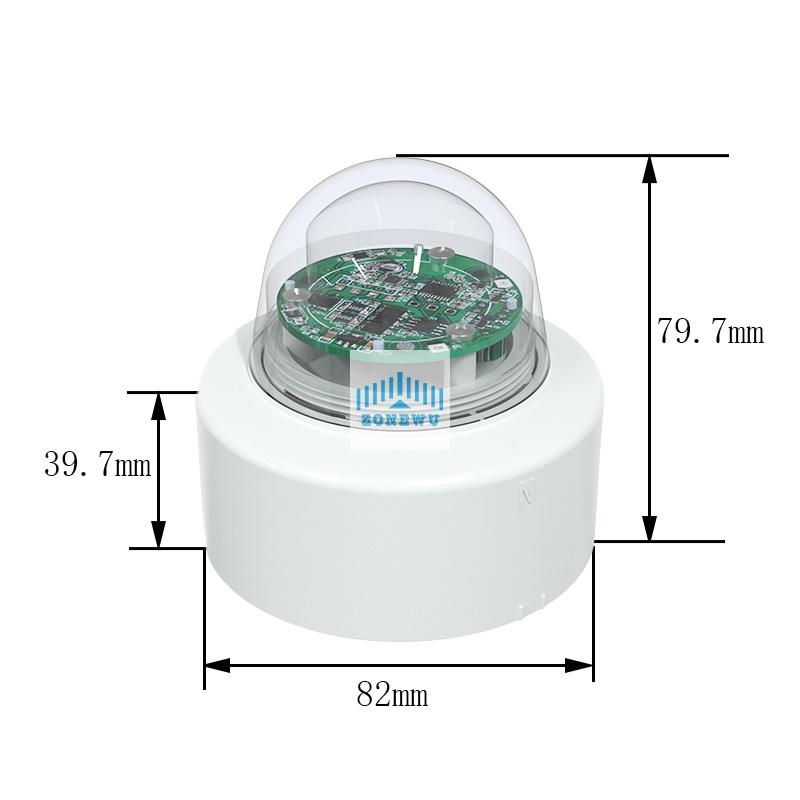

Sense of rain diameter	6CM
Power supply	10~30V DC
Power consumption	≤0.24W (12V DC, current ≤ 20mA)
Resolution	Standard 0.1mm
Accuracy	±5%
Max. instantaneous rainfall	24mm/min

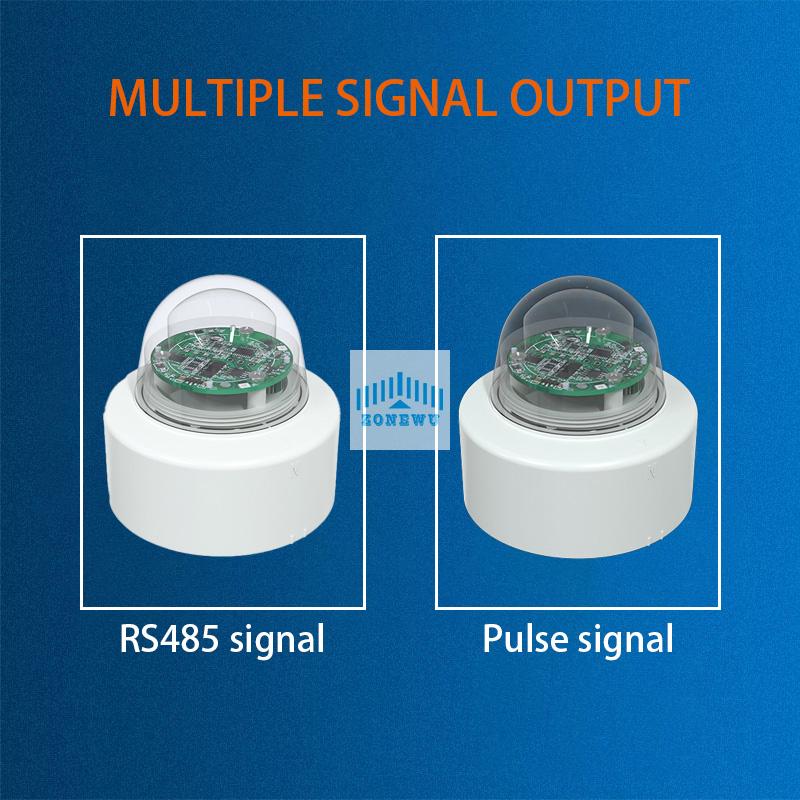

Output signal	Pulse/rs485
Operating temperature	-40~60℃
Operating humidity	0~99%RH (no condensation)
Working pressure range	Standard atmospheric pressure ±10%

Detecting Images

10-30VDC Infrared Light Rainfall Sensor Auto OEM Rain Sensor Optical Rain Gauge Meter features:

1. Small size, light weight, simple installation 2. Low power consumption design, save energy 3. High reliability, can work normally in high temperature and high humidity environment 4. Easy to maintain design, not easy to be blocked by fallen leaves 5. Optical measurement, accurate measurement 6. Pulse and RS485 two output modes for optional

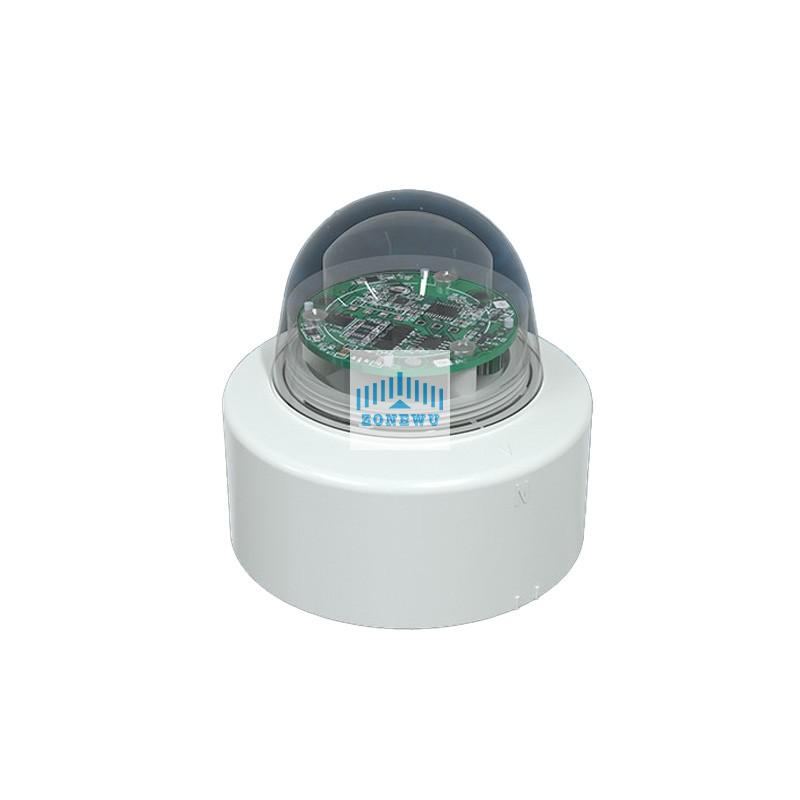

Infrared Light Rainfall Sensor3.jpg

Infrared Light Rainfall Sensor4.jpg

Specifications

Attribute
Customized support	OEM, ODM, OBM
Name	Optical rain sensor
Description	rain gauge sensor
Output signal	RS485/Pulse
Operation temperature	-40℃~+60℃
Sense of rain diameter	6cm
Sensor parameters
Max. instantaneous rainfall	24mm/min
Resolution ratio	0.1mm
Detection accuracy	±5%
Physical Characteristics
Power Supply	10-30VDC
Probe material	ABS
