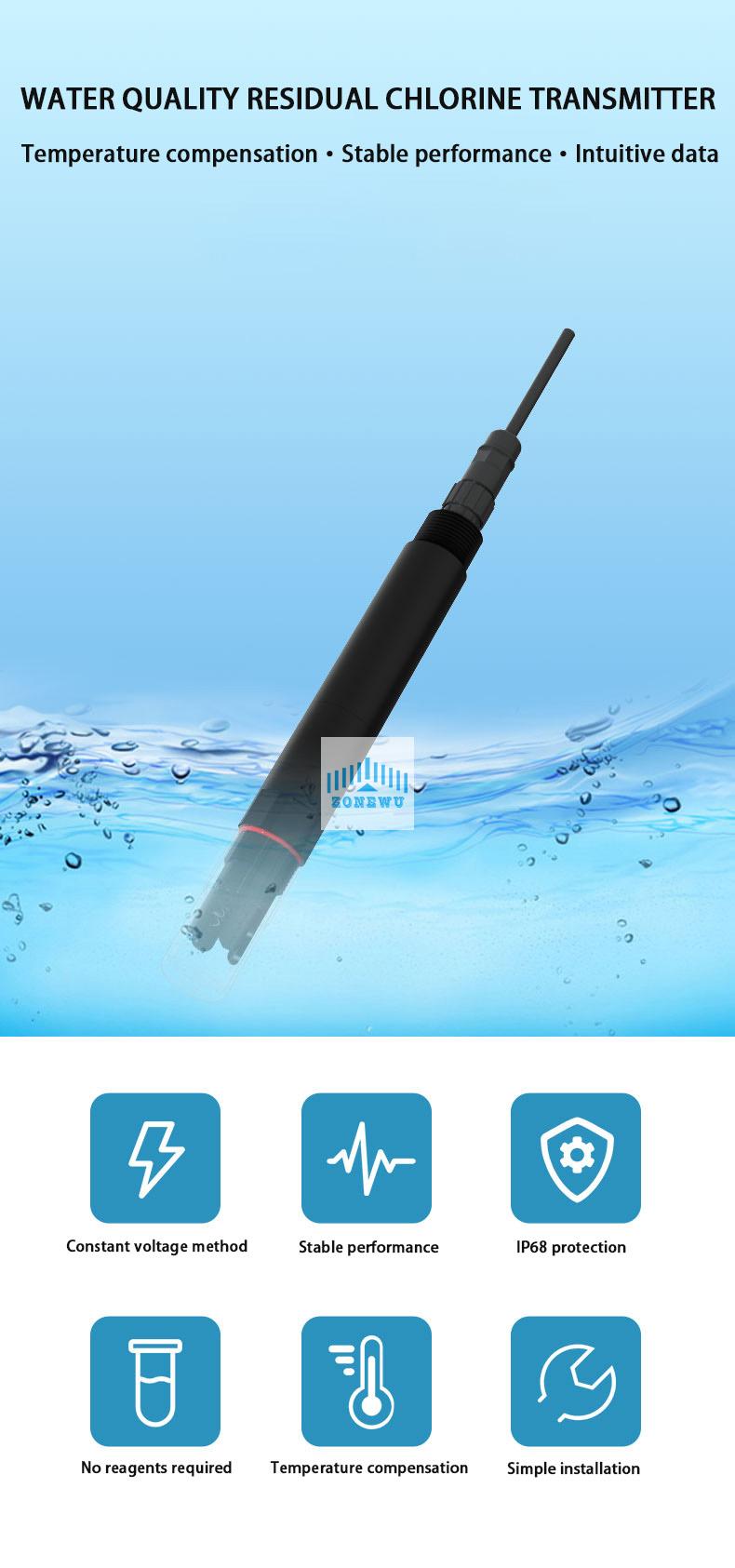

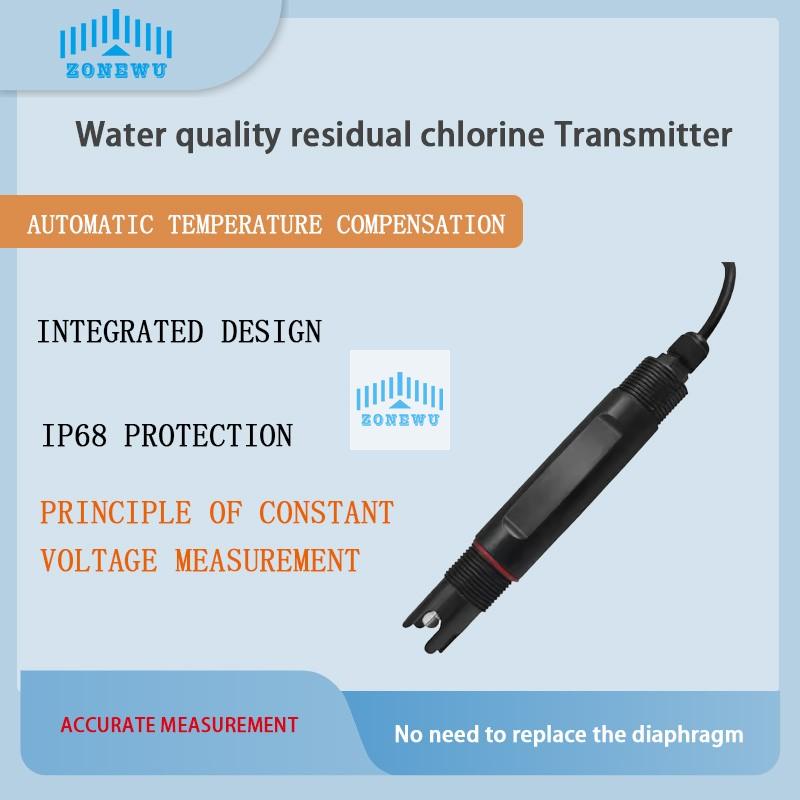

Water quality residual chlorine transmitter

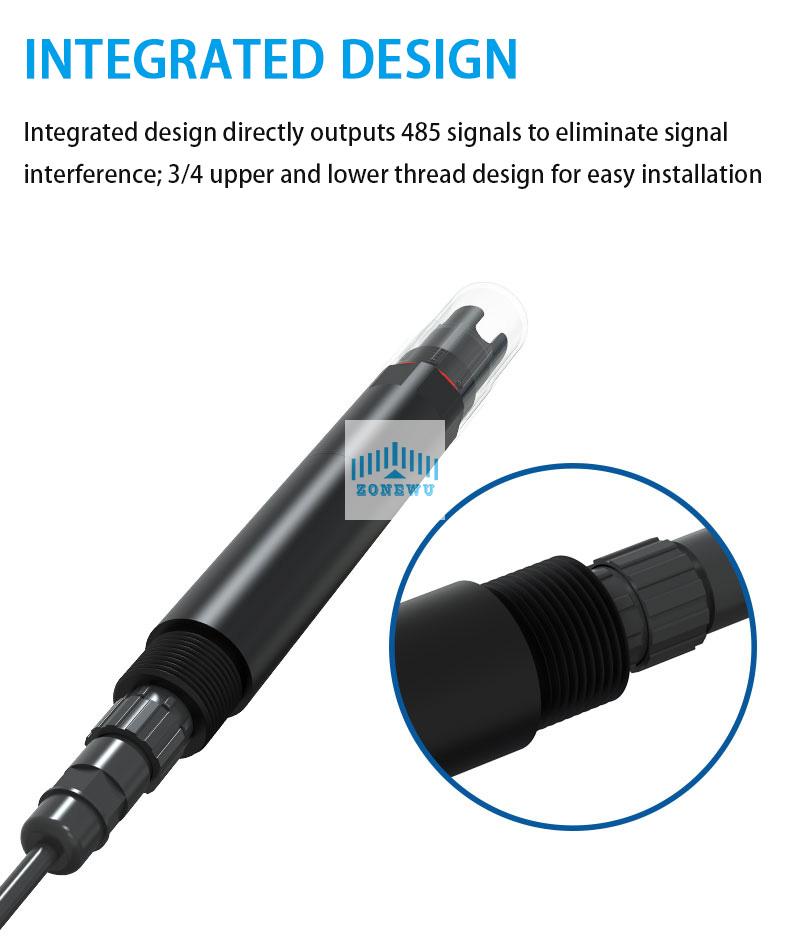

This product is a device for measuring residual chlorine concentration (hypochlorous acid, hypochlorite ion concentration) in water bodies. The integrated design directly outputs 485 signals to eliminate signal interference. The use of a three electrode system has advantages such as high measurement accuracy, long working life, and no need for frequent calibration.

Water quality residual chlorine sensor5.jpg

Specifications

Attribute
Customized support	OEM, ODM, OBM
Name	Water quality residual chlorine transmitter
Description	Industrial water residual chlorine transmitter
Output signal	RS485
Consumption	0.19W
Wire length	Default 5m (10m, 15m, 20m can be customized)
Sensor parameters

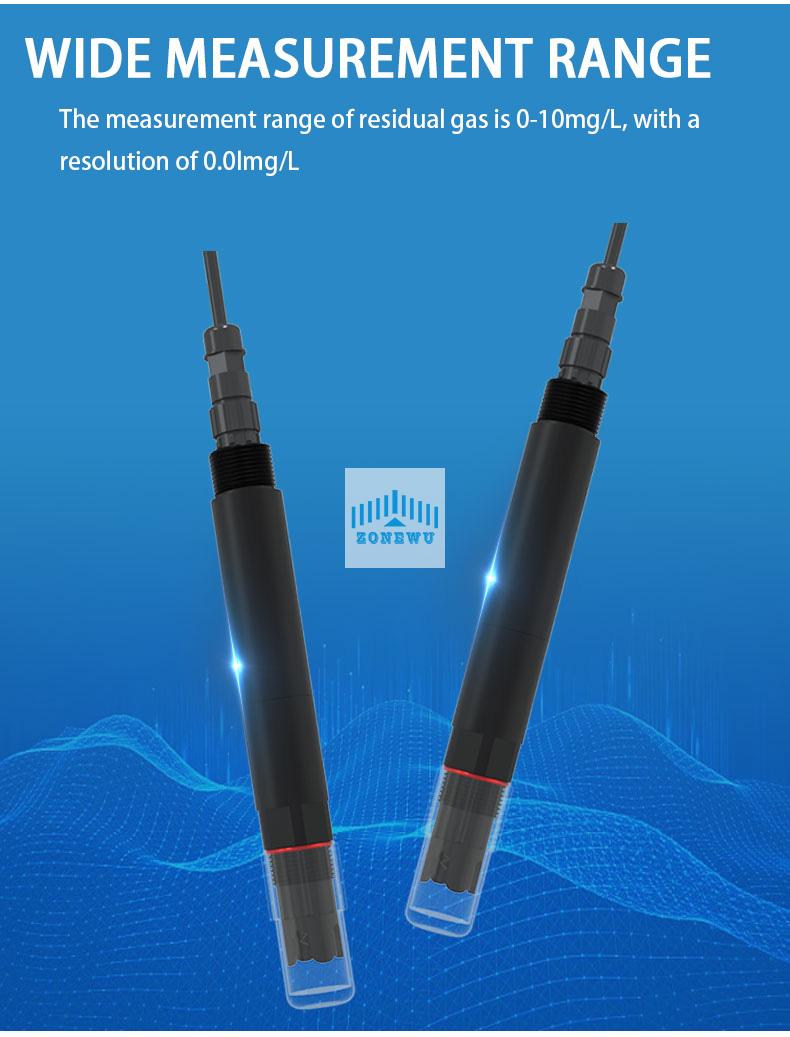

Measuring range	0-2mg/L，0-10mg/L，0-20mg/L
Resolution	0.01mg/L
Accuracy	±5%FS
Physical Characteristics
Power Supply	7-30V
Probe material	Corrosion resistant plastic
