Electric Conductivity Probe K1 K10 EC Sensor

Electric Conductivity Probe K1 K10 EC Sensor

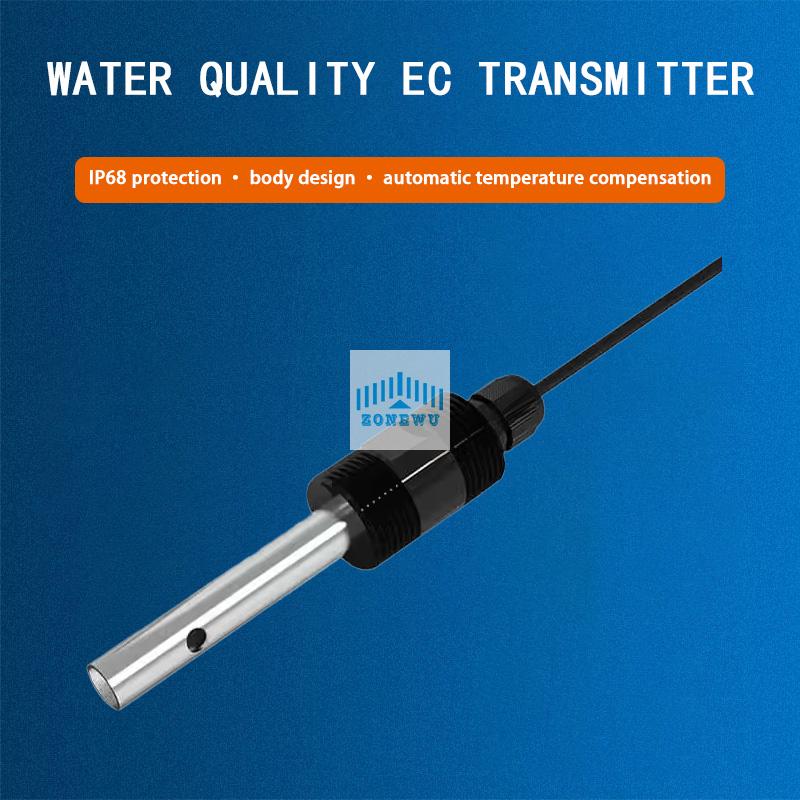

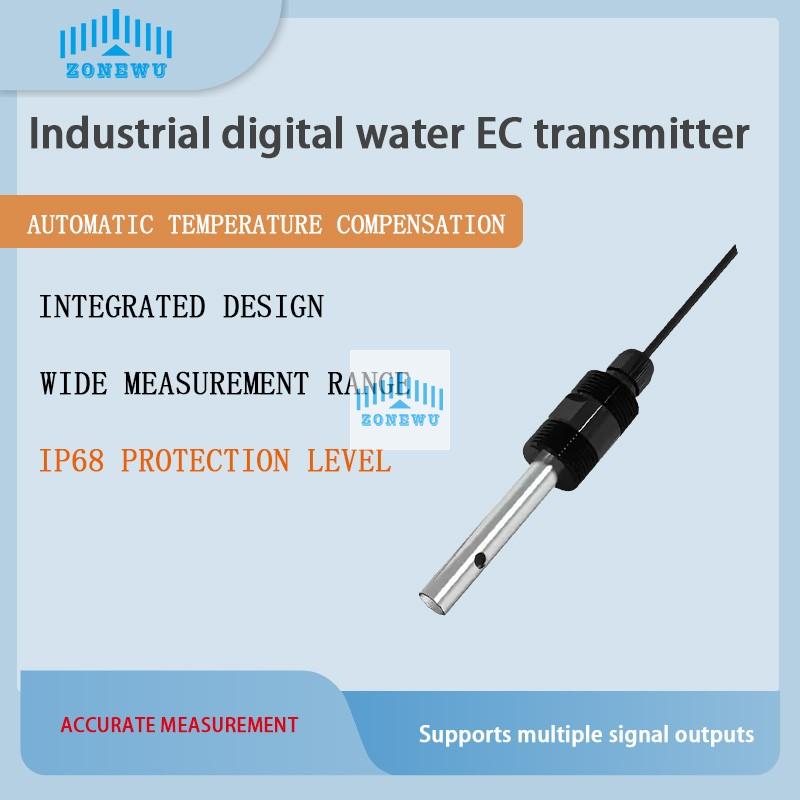

This EC Sensor is a water conductivity sensor for measuring the conductivity of a solution. It has an automatic temperature compensation function that can compensate the conductivity of the current temperature to the specified temperature. It can be widely used in continuous monitoring of the conductivity value of aqueous solutions such as section water quality, breeding, sewage treatment, environmental protection, pharmaceuticals, food and tap water.

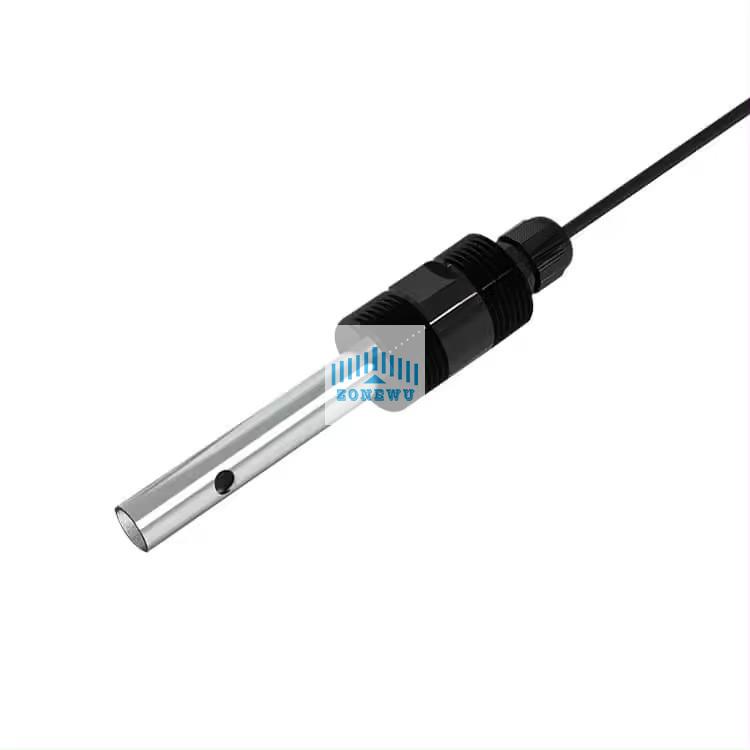

Electric Conductivity Probe K1 K10 EC Sensor5.jpg

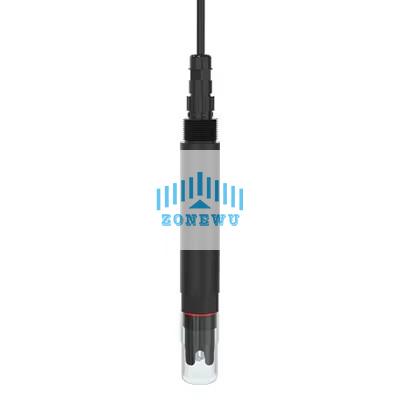

Electric Conductivity Probe K1 K10 EC Sensor6.jpg

Detailed Images

Power supply	DC 7~30V

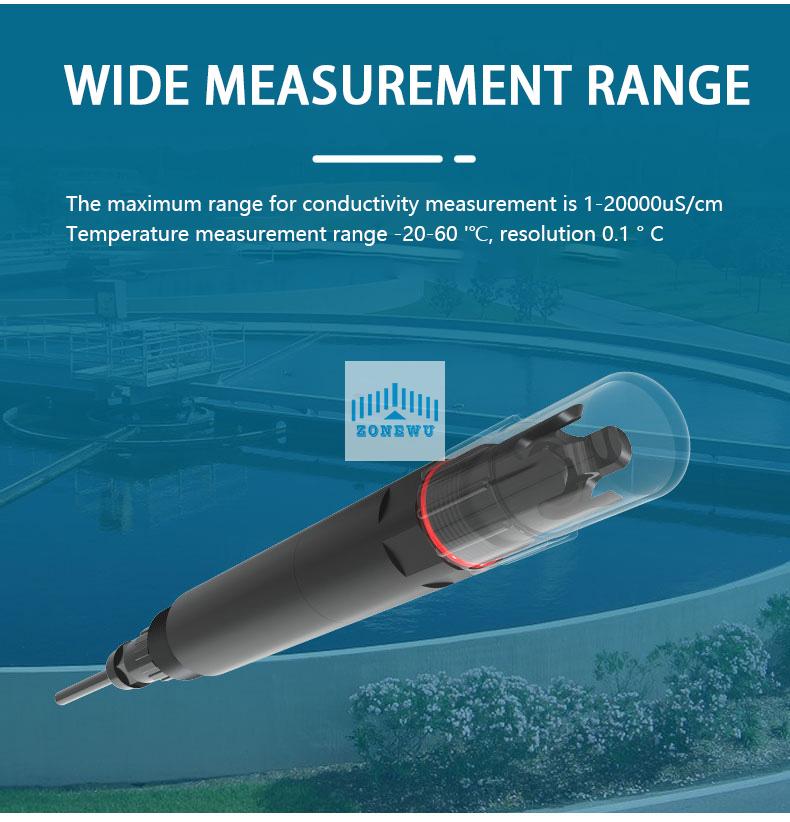

EC range type one	1~2000μS/cm, Resolution: 0.1μS/cm
EC range type two	10~20000μS/cm, Resolution: 1μS/cm
Conductivity measurement error	±1%FS
Temperature measurement range	-20~100℃; resolution: 0.1℃
Temperature measurement error	±0.5℃

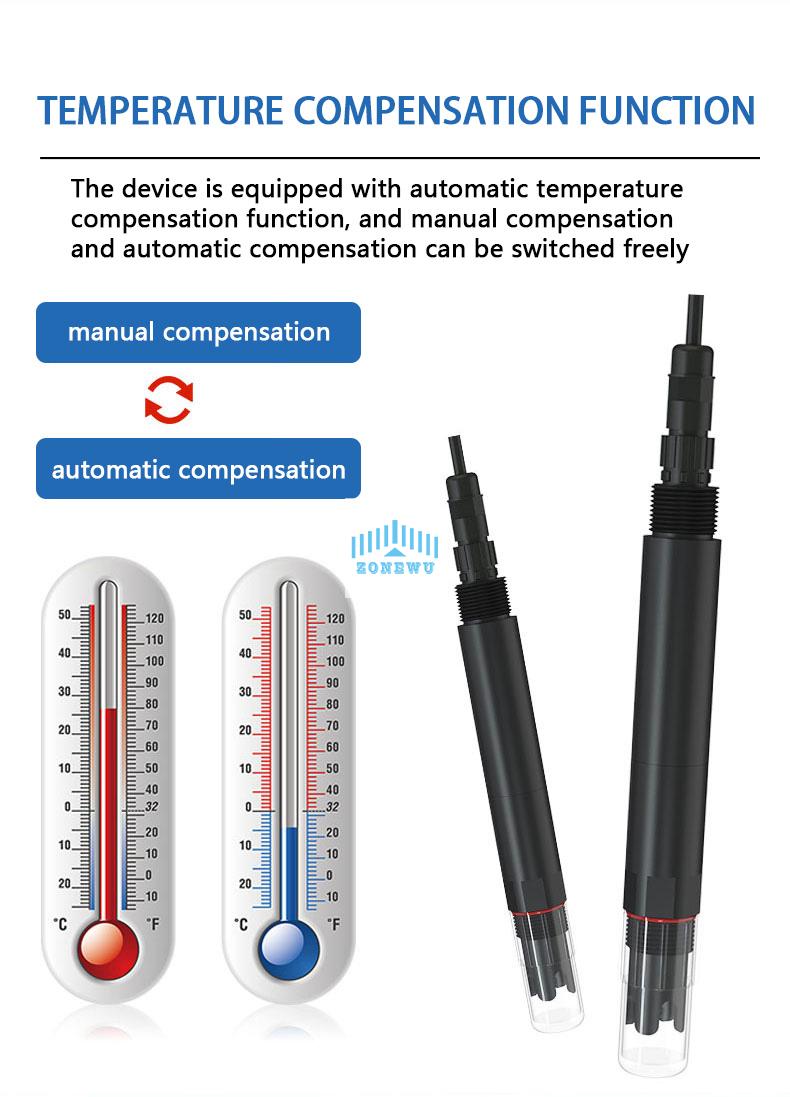

Temperature compensation range	-20~100℃ (default compensation temperature is 25℃)
Temperature compensation coefficient	default 0.02
Equipment working environment	temperature: -20-60℃ relative humidity:＜85%
Electrode wire length	default 5m (10m, 15m, 20m can be customized)

Specifications

Attribute
Customized support	OEM, ODM, OBM
Name	Electric Conductivity Probe K1 K10 EC Sensor
Description	Industrial water EC transmitter
Output signal	4~20mA/0~5V/0~10V/RS485
Consumption	0.4W
Wire length	Default 5m (10m, 15m, 20m can be customized)
Sensor parameters
Measuring range	1~2000μS/cm
Resolution	0.1μS/cm
Accuracy	±1%FS

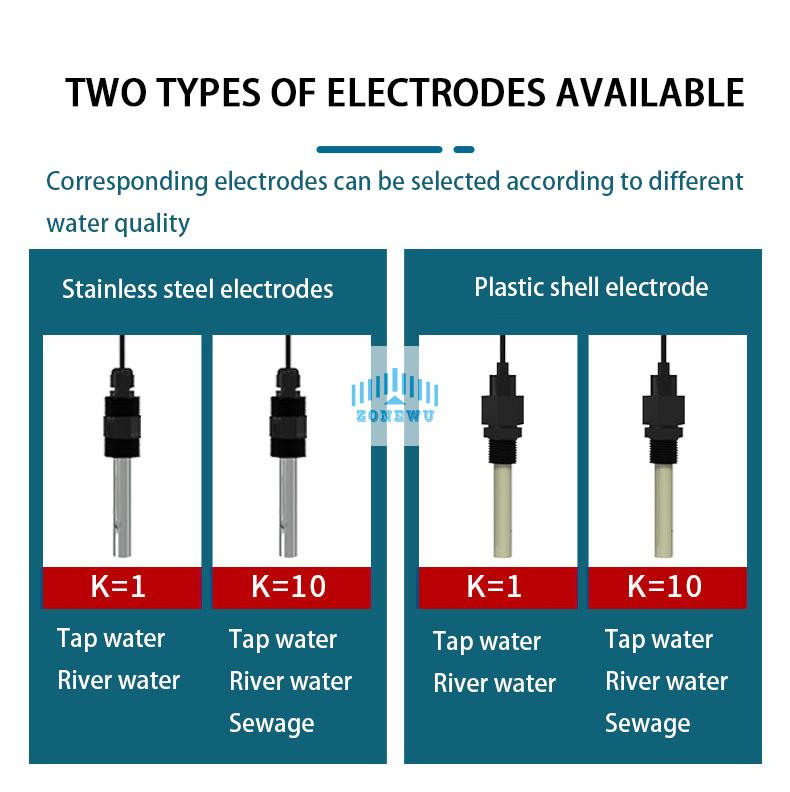

Salinity measurement range	K=1：0~1000ppm；K=10：0~11476pp
TDS measurement range	K=1：0~1100ppm；K=10：0~13400ppm
Physical Characteristics
Power Supply	10-30V
