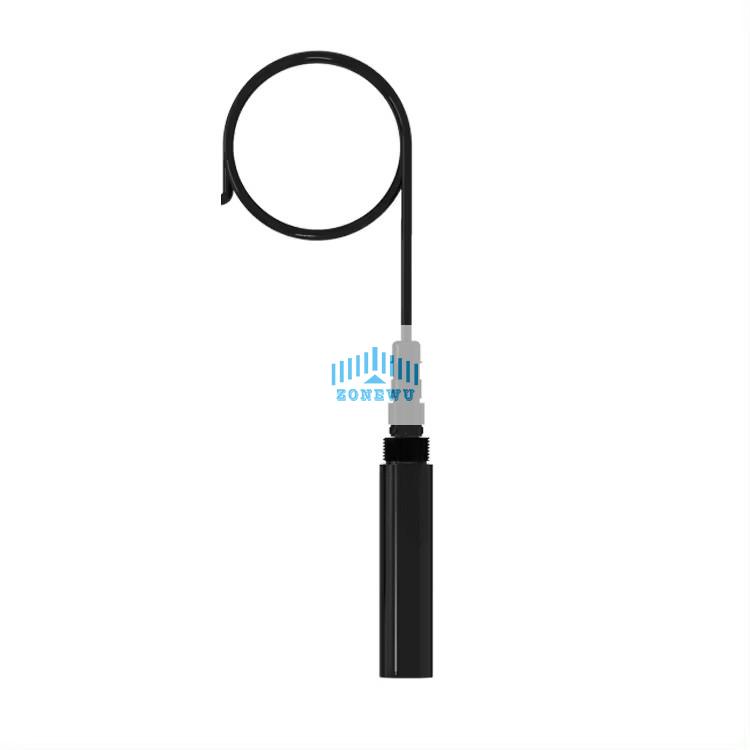

Industrial digital water quality turbidity transmitter

Industrial digital water quality turbidity transmitter

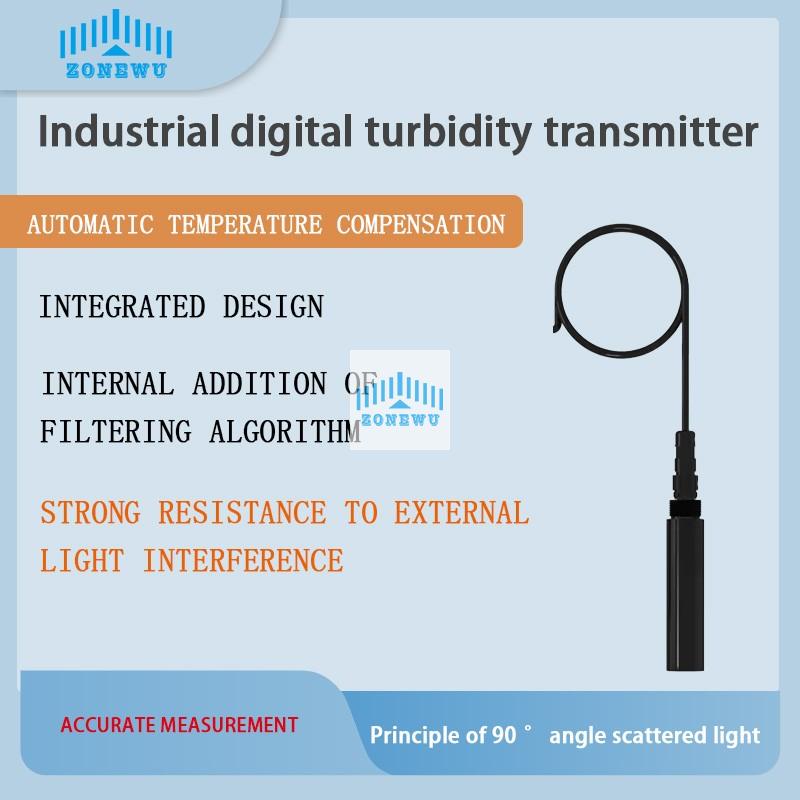

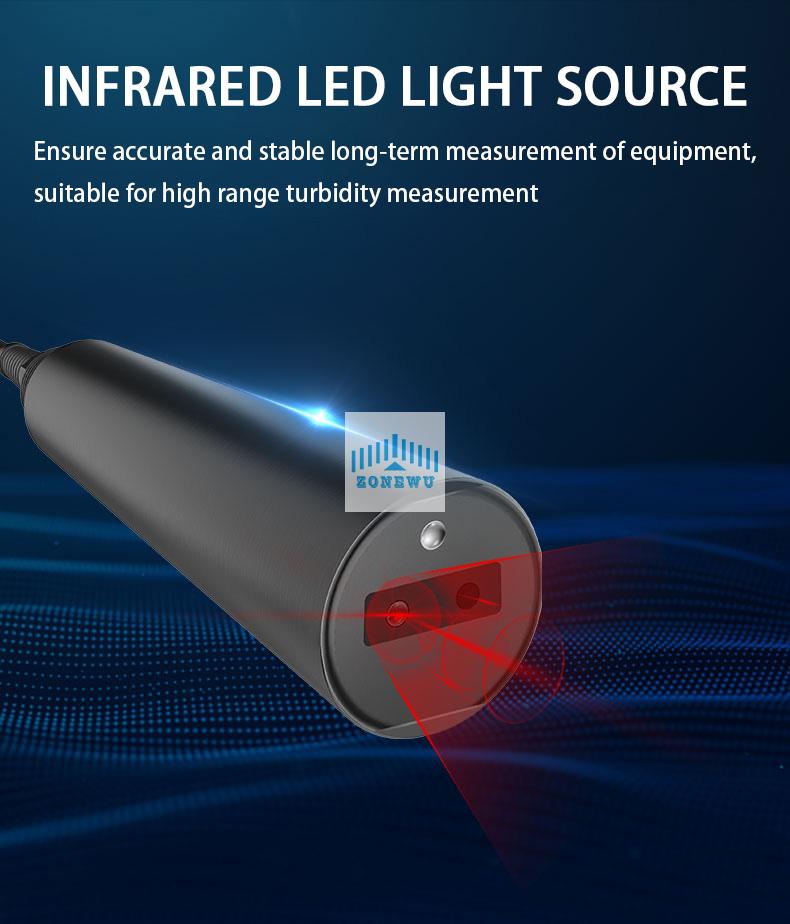

This product is a basic conventional water quality monitoring digital turbidity transmitter; Adopting the mature 90 ° scattering light principle from abroad, using the design method of infrared LED light source and fiber optic transmission light path; Internally added filtering algorithm with strong resistance to external light interference. Built in temperature transmitter, capable of automatic temperature compensation, suitable for long-term online monitoring of environmental use.

Power supply	DC 10~30V
Power consumption	0.2W
Response time	≤30sec
Equipment working condition	0~40℃
Measuring range	0~50NTU, 0~200NTU, 0~1000NTU, 0~4000NTU
Accuracy	±5%FS (25°C); ±0.5°C
Resolution	0~50NTU is 0.01NTU 0~200NTU is 0.1NTU 0~1000NTU is 0.1NTU 0~4000NTU is 1NTU Temperature: 0.1°C
Communication interface	RS485; standard MODBUS-RTU protocol; communication baud rate: default 4800 (1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 can be set)

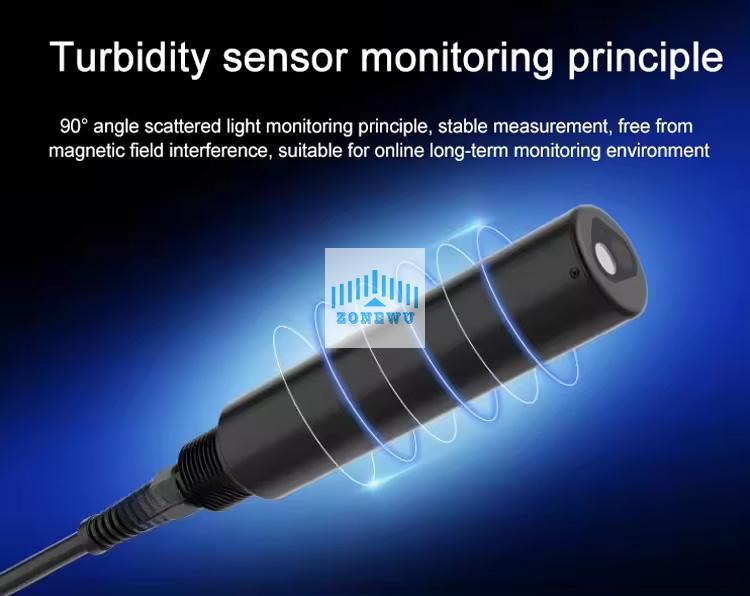

Measuring principle	90° light scattering method
Using life	2 years in normal use
Protect class	IP68
Electrode wire length	default 5m (customizable)

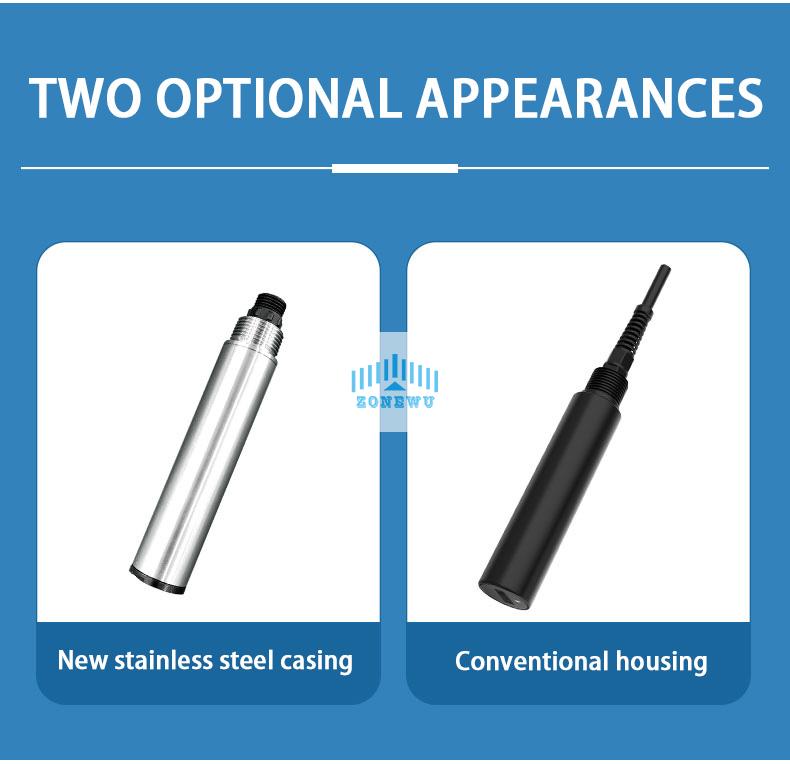

Shell material	corrosion-resistant plastic

Specifications

Attribute
Customized support	OEM, ODM, OBM
Name	Portable Turbidity Meter Online Turbidity Sensor
Description	Industrial water Turbidity transmitter
Output signal	RS485
Consumption	0.2W
Wire length	Default 5m (10m, 15m, 20m can be customized)
Sensor parameters
Measuring range	0~50NTU/0~200NTU/0~1000NTU/0~4000NTU
Resolution	0.01NTU/0.1NTU/0.1NTU/1NTU
Accuracy	±5%FS(25℃); ±0.5℃
Physical Characteristics
Power Supply	10-30V
Probe material	Corrosion resistant plastic
