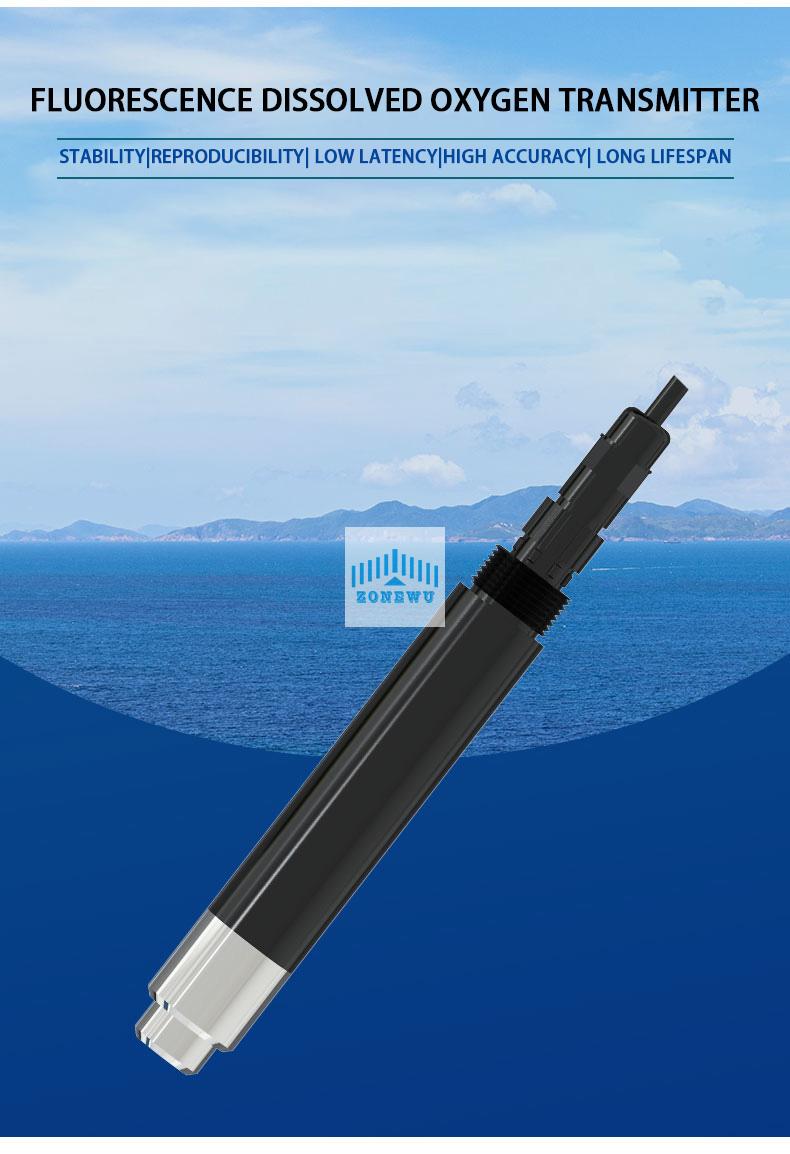

This product is a device for measuring the concentration of dissolved oxygen in solutions, using the principle of fluorescence measurement. It does not consume oxygen and does not require electrolyte. Built in temperature transmitter with automatic temperature compensation function. The calibration function provides a simpler and more convenient calibration method. The use of imported quality fluorescent film can be widely used in industries such as water treatment, aquaculture, and environmental monitoring.
Attribute | |
Customized support | OEM, ODM, OBM |
Name | Measurement of dissolved oxygen using water DO sensor |
Description | Industrial water DO transmitter |
Output signal | RS485 |
Consumption | 0.2W |
Wire length | Default 5m (10m, 15m, 20m can be customized) |
Sensor parameters | |
Measuring range | 0-20mg/L (0-200% saturation) |
Resolution | 0.01mg/L;0.1%;0.1℃ |
Accuracy | ±3%FS;±0.5℃(25℃) |
Physical Characteristics | |
Power Supply | 10-30V |
Probe material | Polyoxymethylene (POM), stainless steel |
