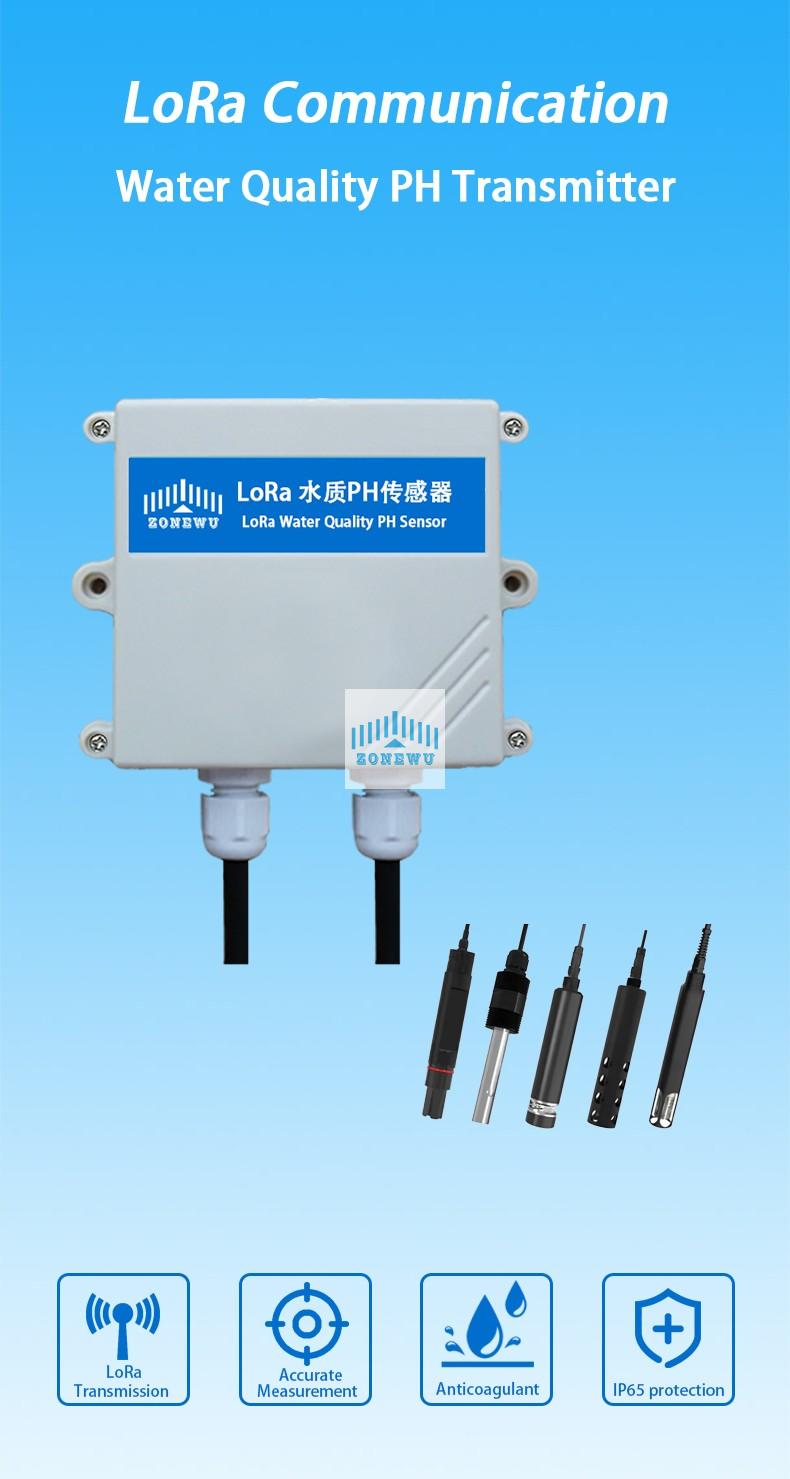

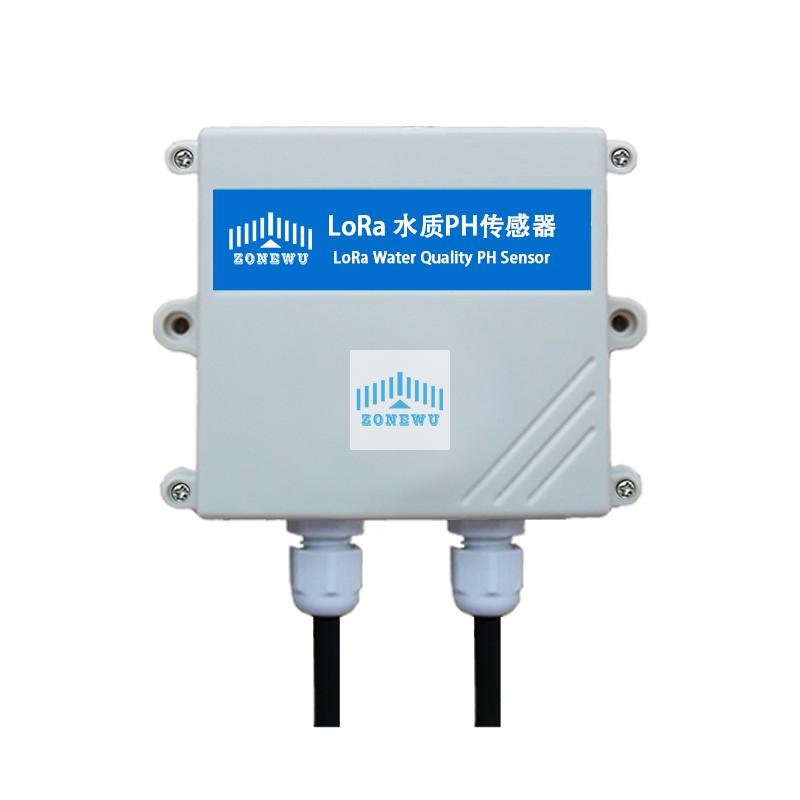

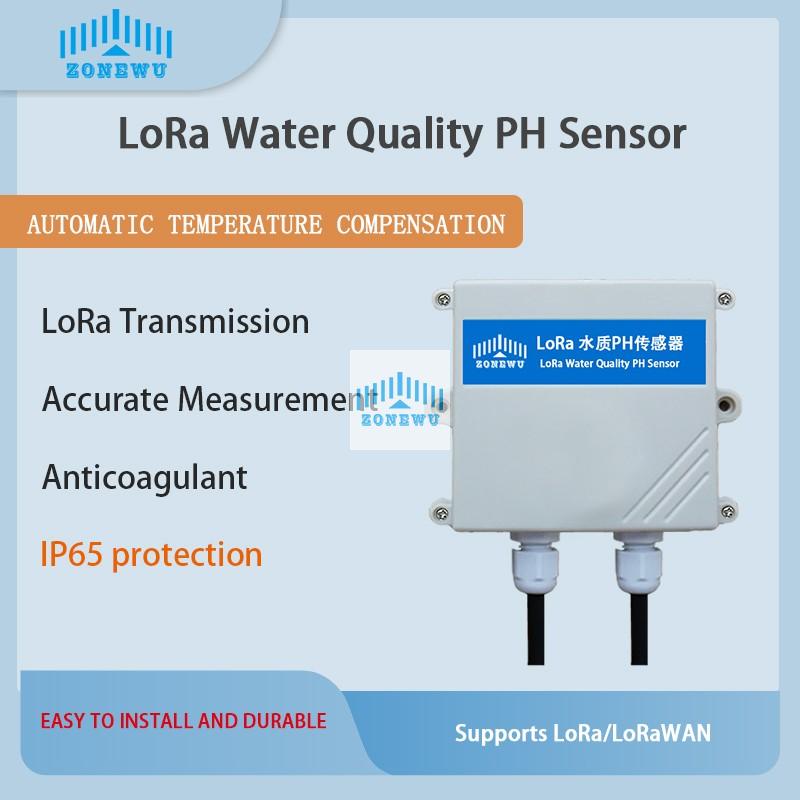

LoRaWAN water quality pH sensor

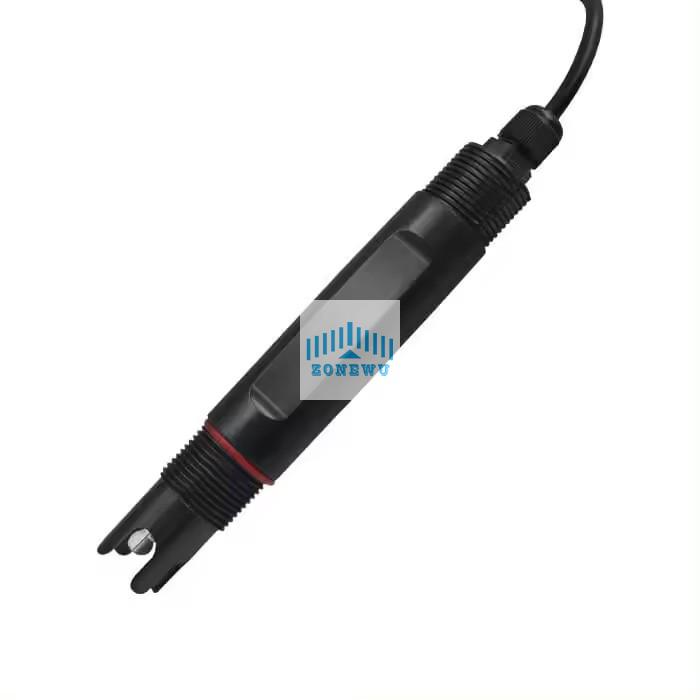

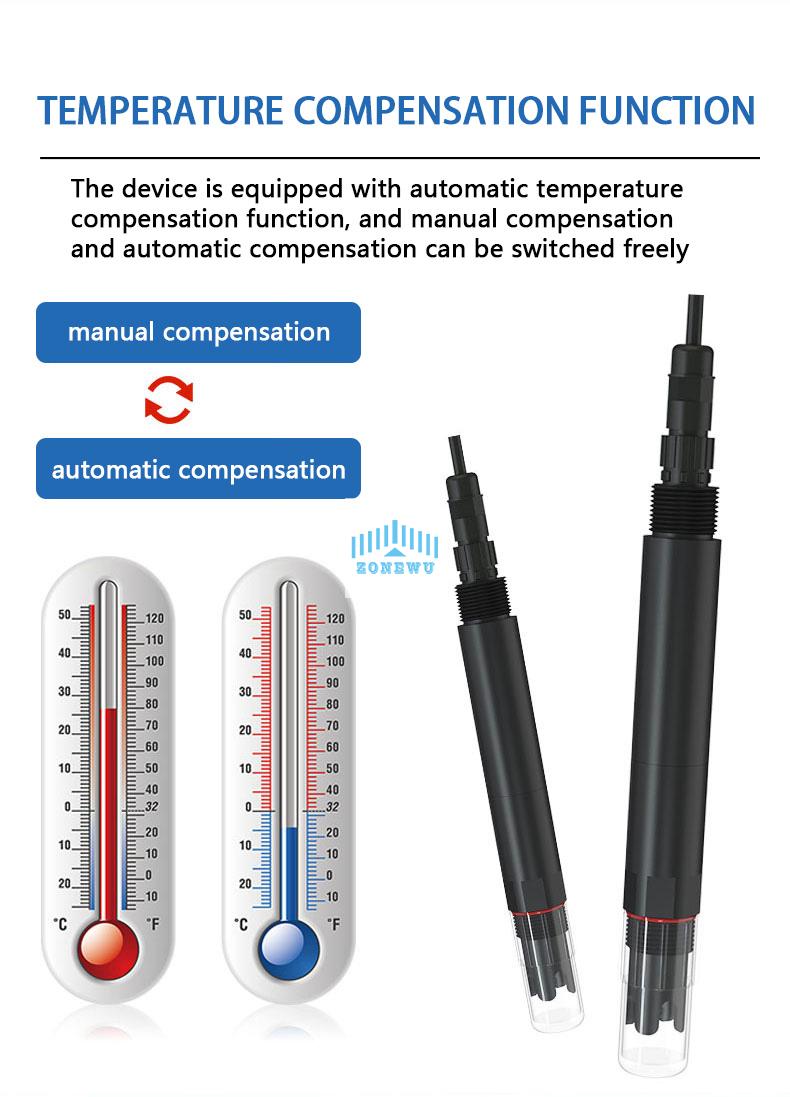

The LoRa water quality pH sensor is an industrial liquid pH sensor used to measure the pH value of a solution. It has automatic temperature compensation function. Automatic temperature compensation and manual temperature compensation can be switched freely. Suitable for industrial wastewater, domestic wastewater, agriculture, aquaculture and other scenarios in non corrosive weak acid and weak alkali environments. Supports LoRa TDMA ad hoc networks and standard LoRaWAN protocols.

Specifications

Attribute
Customized support	OEM, ODM, OBM
Name	Industrial LoRa water quality PH sensor
Description	water quality sensor

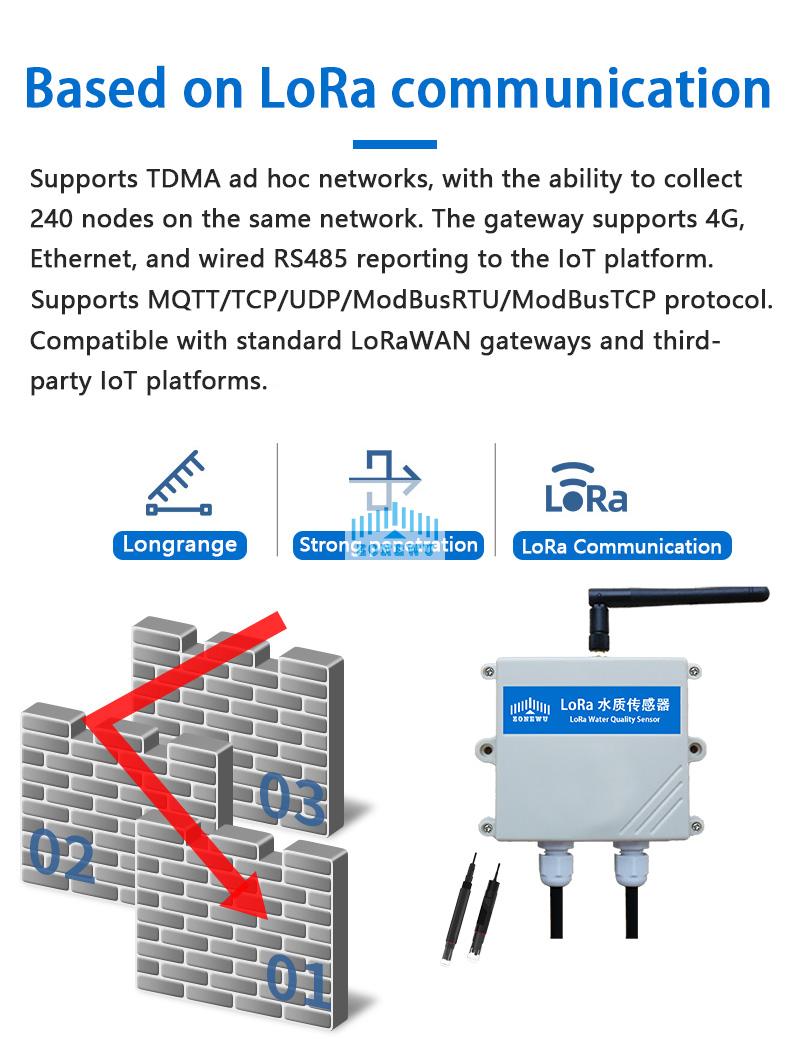

Communication Protocol	LoRaWAN,LoRa TDMA Networking
Frequency	CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4
Tx Power	20dBm (915) / 16dBm (868) / 17dBm (470)
Mode	OTAA/ABP Class A
Sensor parameters

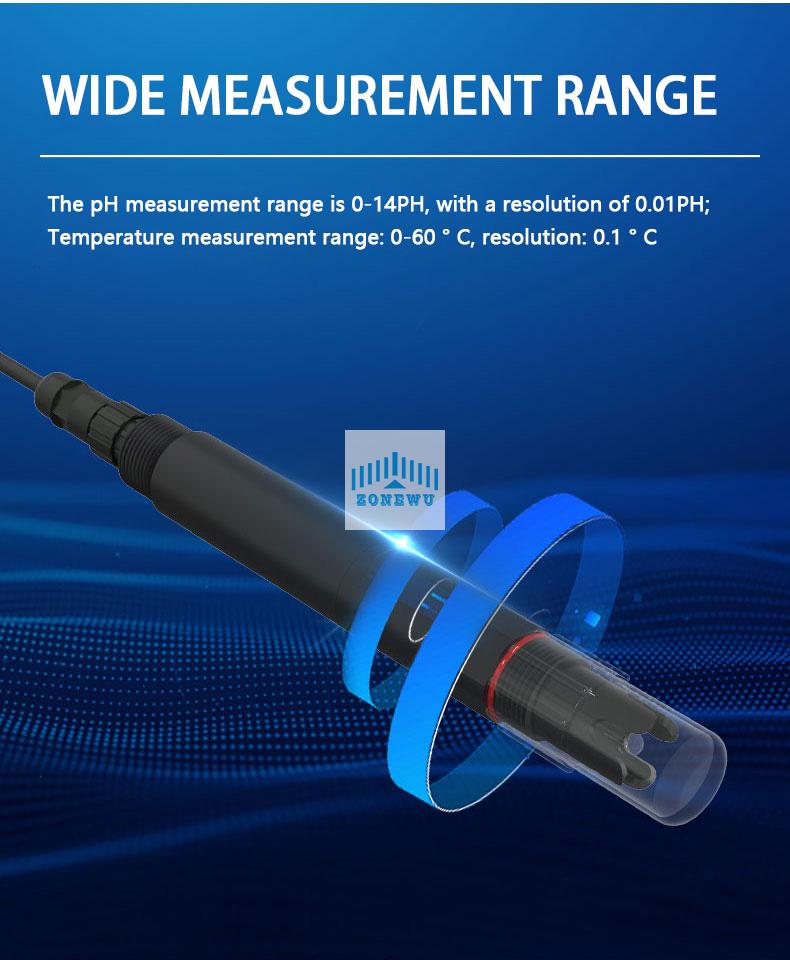

Measuring range	0~14.00pH
pH measurement error	±0.15pH
Repeatability error	±0.02pH
Physical Characteristics
Power Supply	12/24VDC
Operating Temperature	-30°C to 70°C
Dimensions	90x85x40 mm

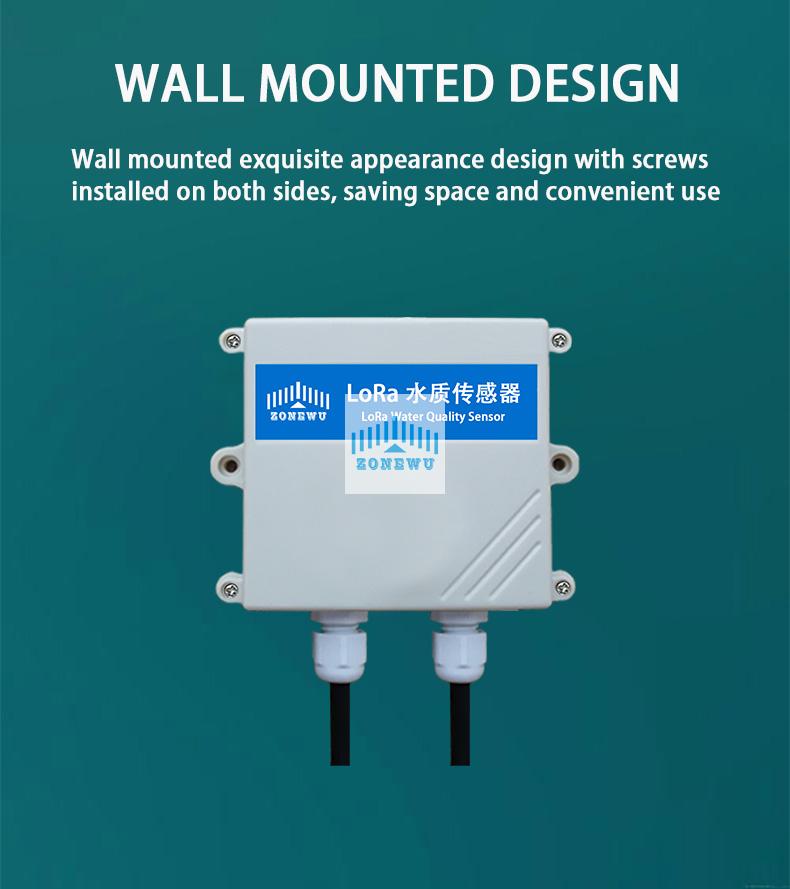

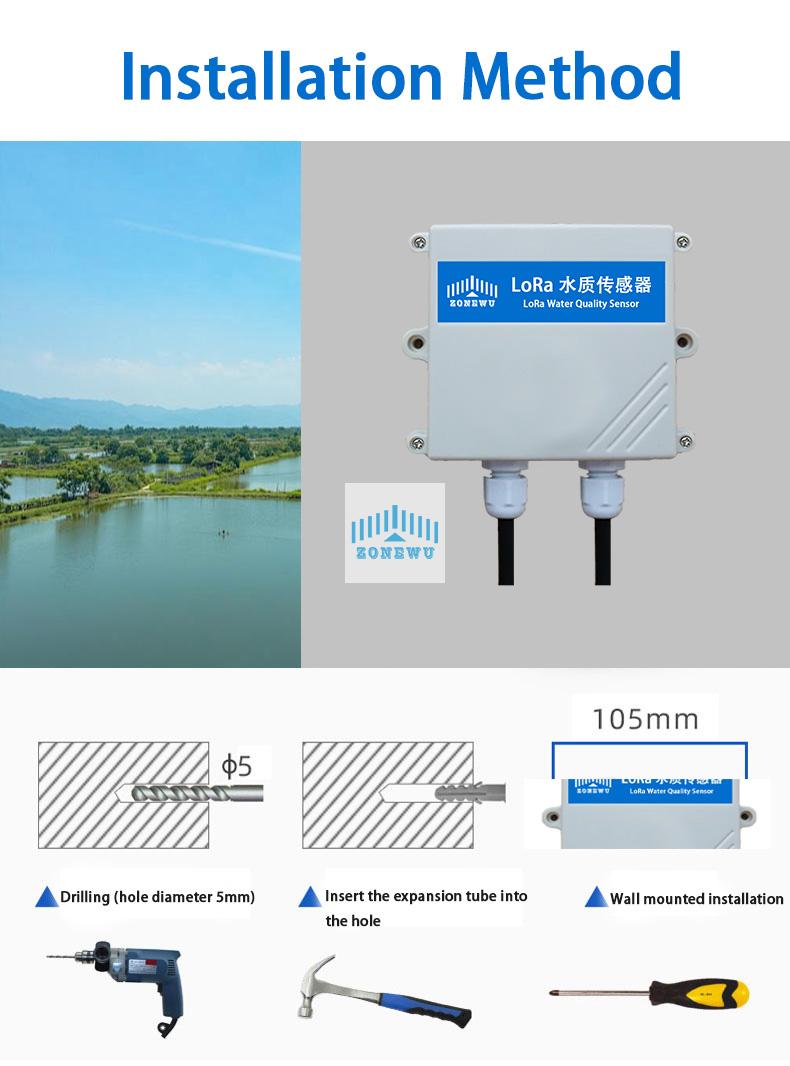

Installation	Wall Mounting
