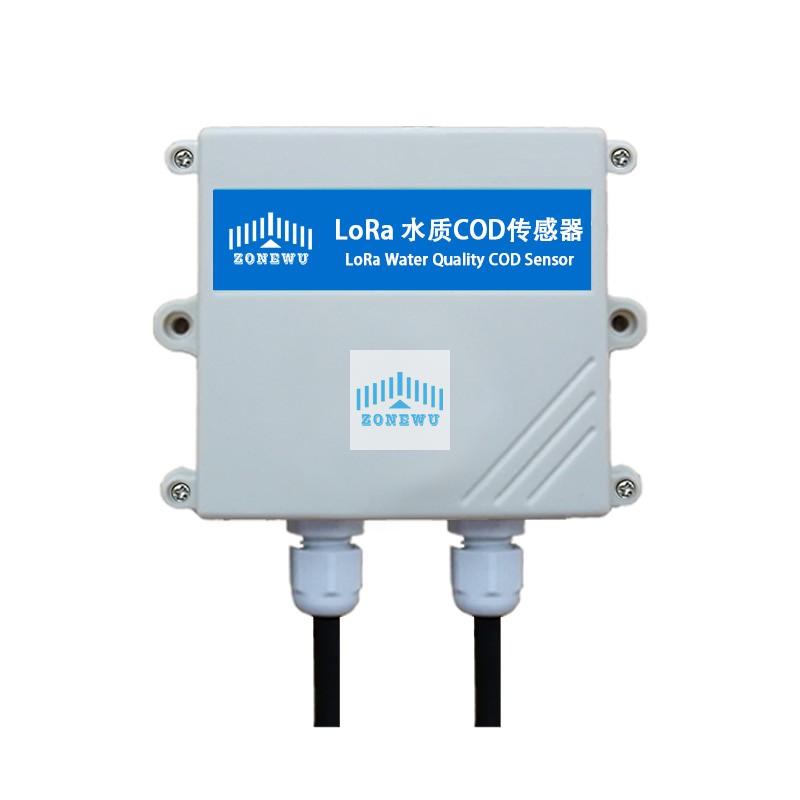

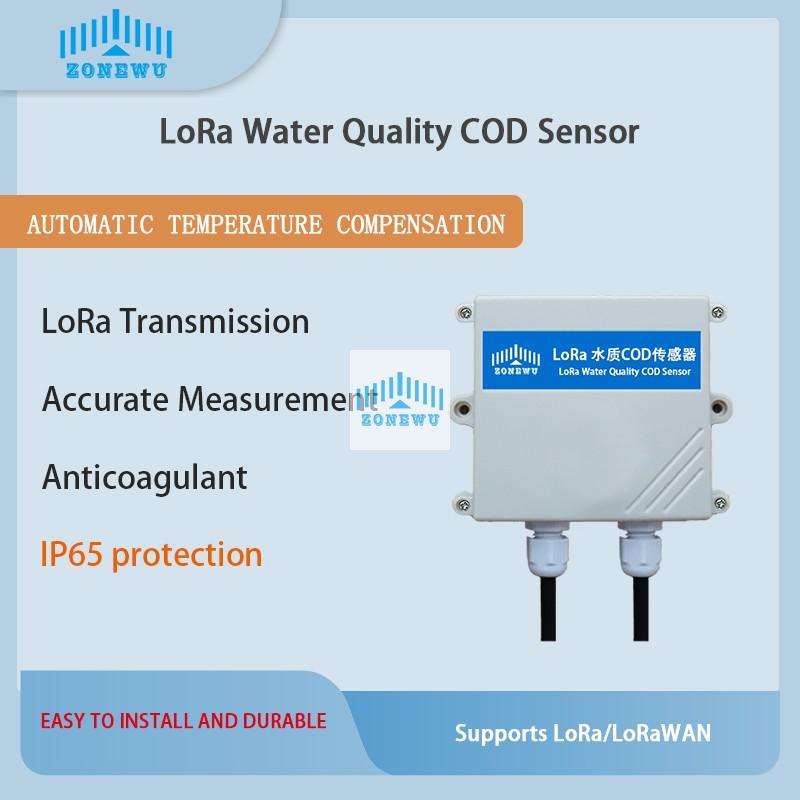

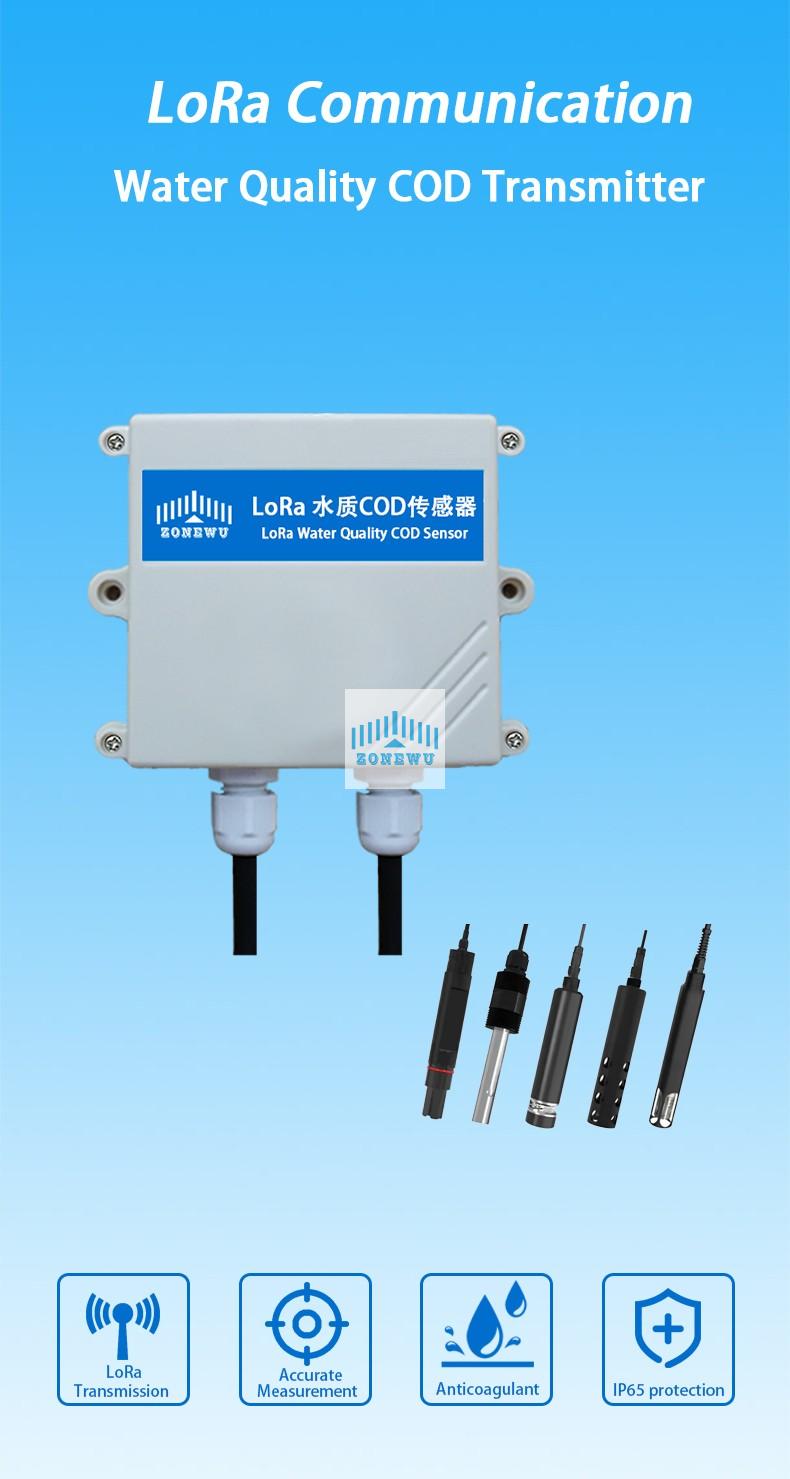

LoRa water quality COD sensor

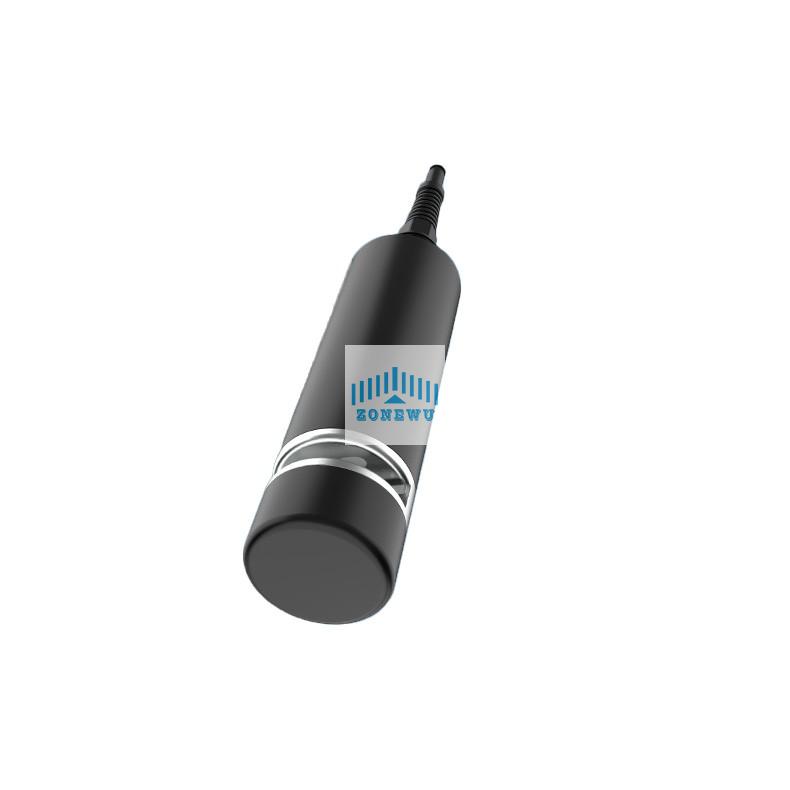

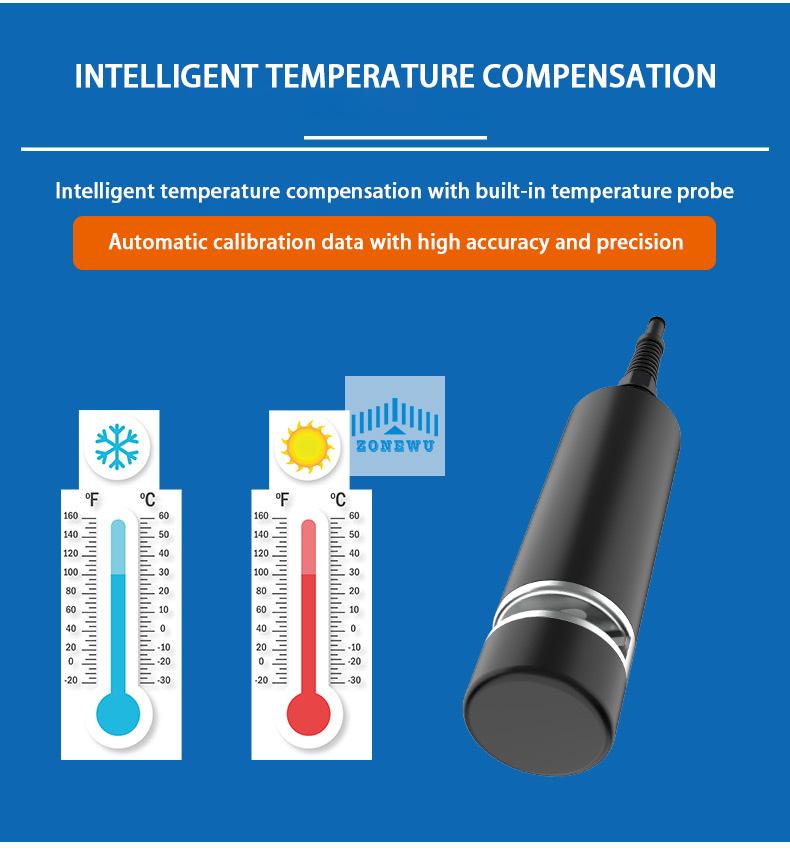

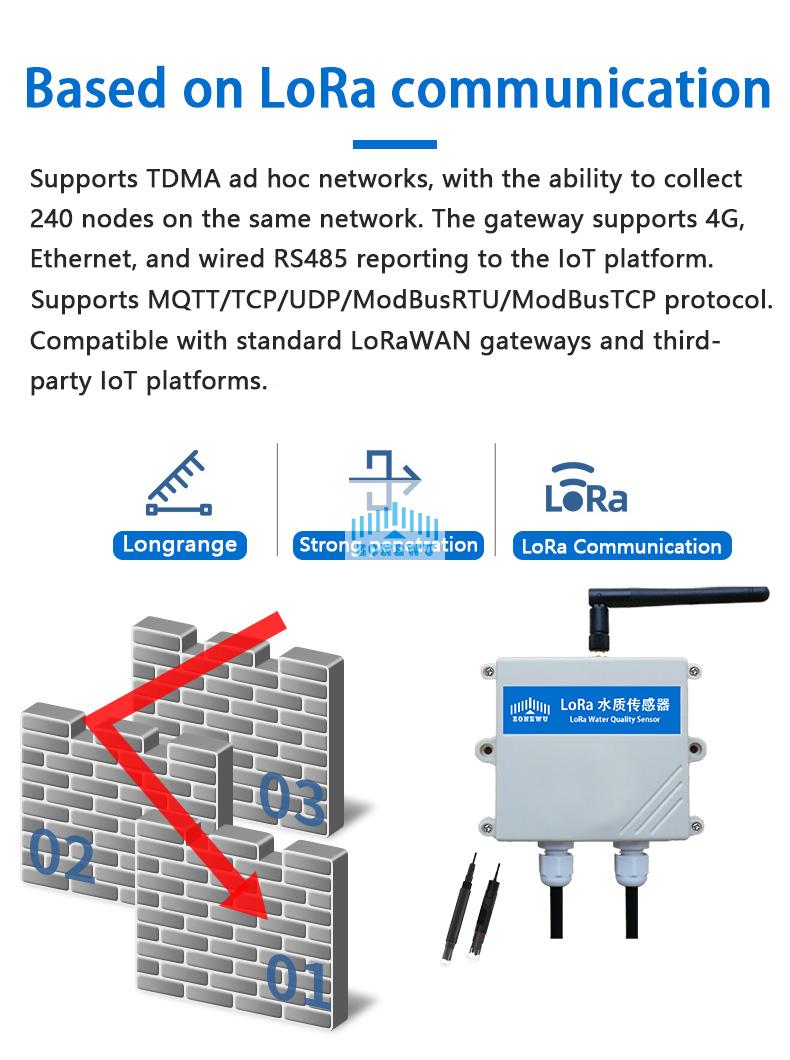

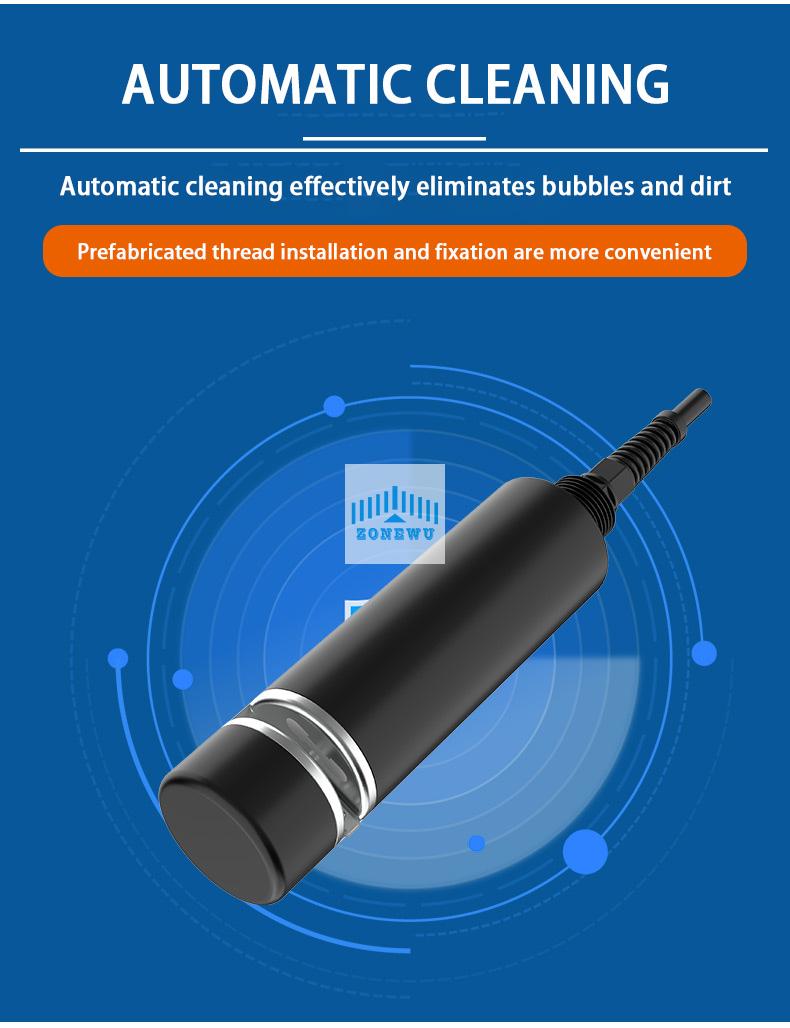

The LoRa water quality COD sensor is a device for measuring the chemical oxygen demand (COD) of a solution, using ultraviolet absorption method without the need for chemical reagents; Internally integrated self-cleaning system, effectively preventing biological attachment; Built in temperature transmitter with automatic temperature compensation function; Using modulated optical signals to reduce visible light interference; Equipped with a turbidity measurement system to effectively compensate for the impact of turbidity on COD measurement. Supports LoRa TDMA ad hoc networks and standard LoRaWAN protocols.

Specifications






Attribute

Customized support

OEM, ODM, OBM

Name

Industrial LoRa water quality ammonia COD sensor

Description

water quality sensor

Communication Protocol

LoRaWAN,LoRa TDMA Networking

Frequency

CN470/IN865/EU868/RU864/US915/AU915/

KR920/AS923-1&2&3&4

Tx Power

20dBm (915) / 16dBm (868) / 17dBm (470)

Mode

OTAA/ABP Class A

Sensor parameters

Measuring range

0~500mg/L equiv.KHP

Resolution

0.1mg/L

Accuracy

±5%FS equiv.KHP25℃)

Physical Characteristics

Power Supply

12/24VDC

Operating Temperature

-30°C to 70°C

Dimensions

90x85x40  mm

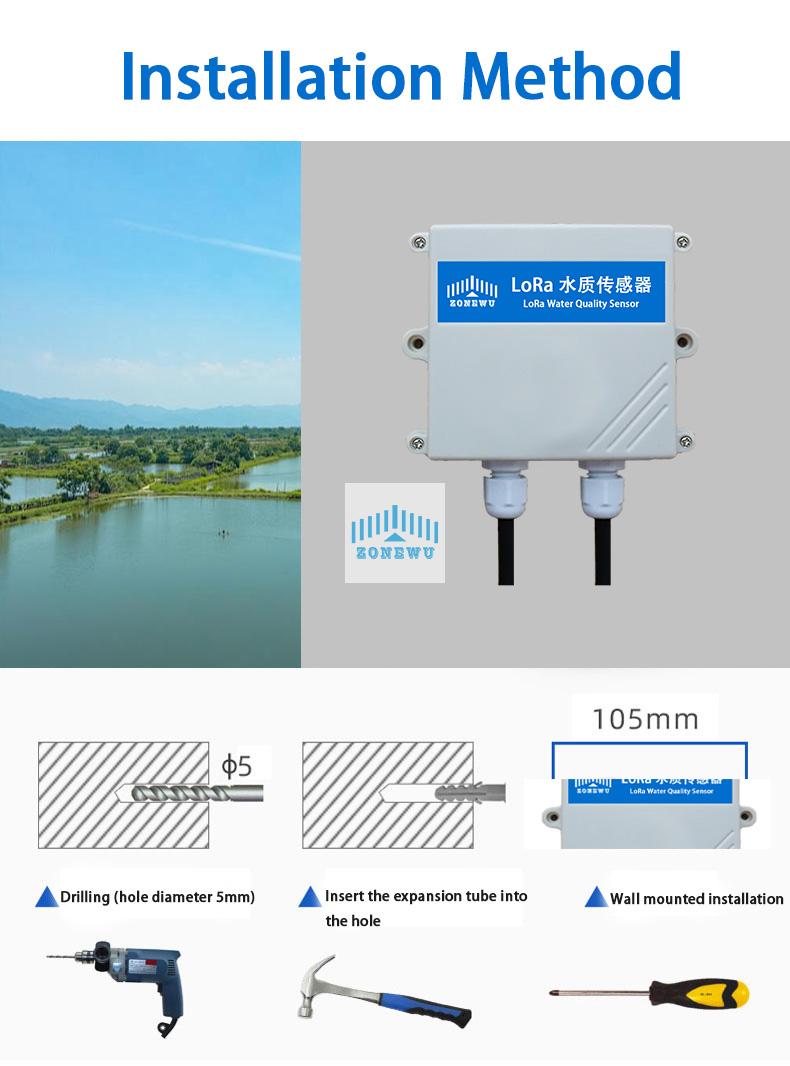

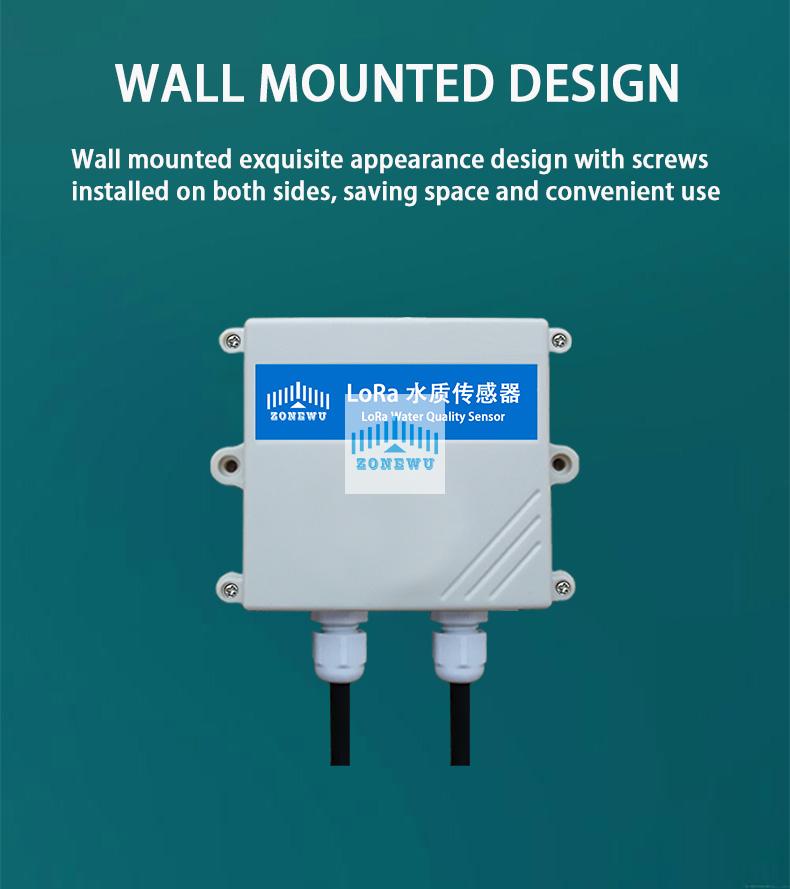

Installation

Wall Mounting
