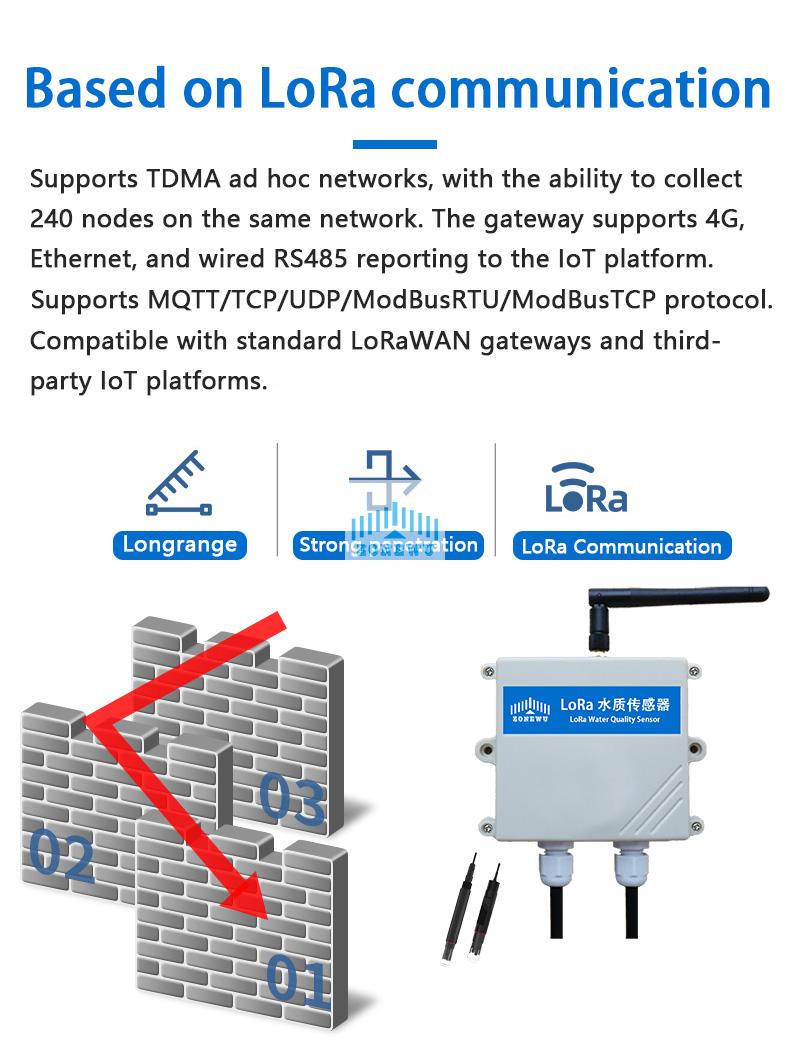

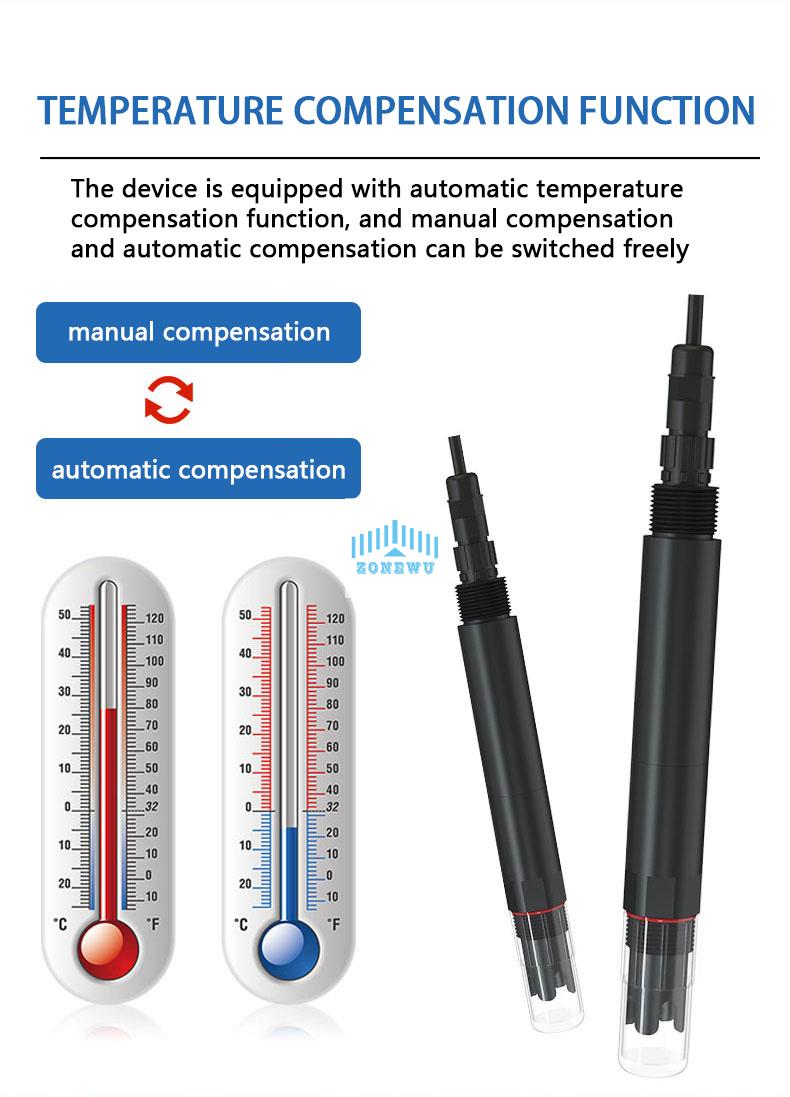

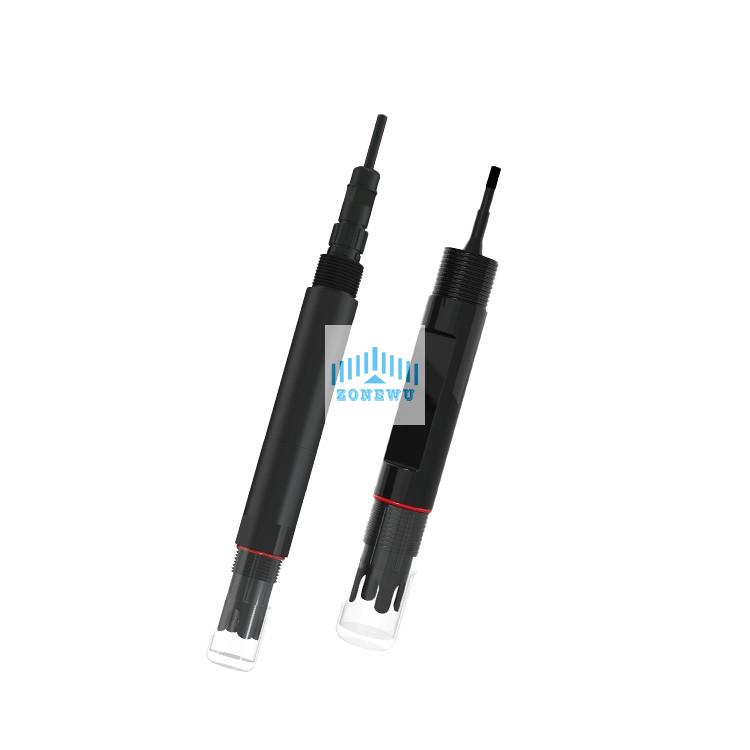

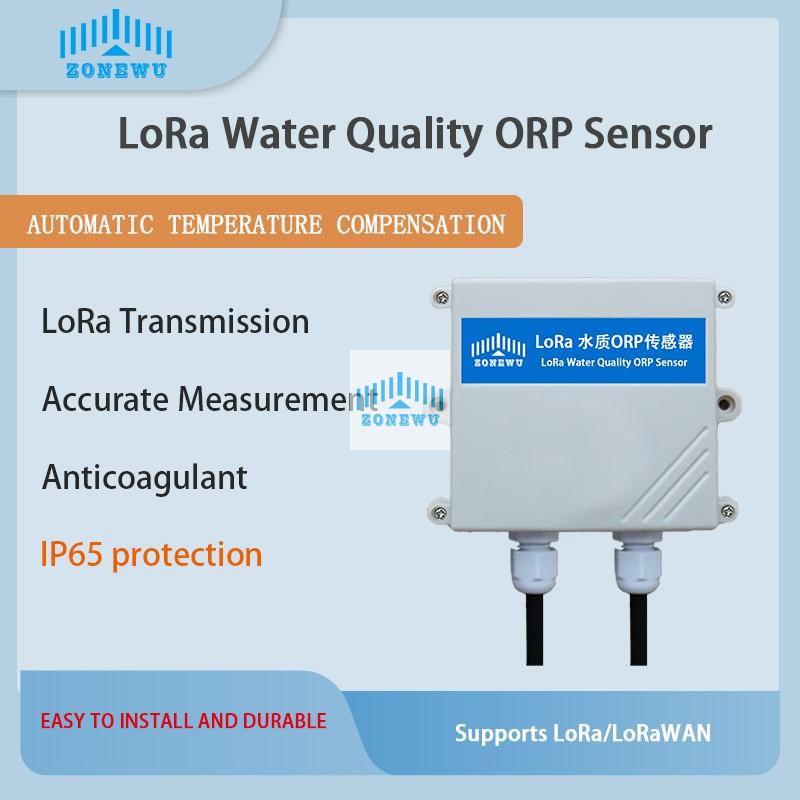

The LoRa water quality ORP sensor is a device used to measure the redox potential of a solution. The ORP composite electrode is made of high-purity platinum, which has strong acid and alkali resistance and antioxidant ability, high measurement accuracy, fast response, and good stability. The electrode can automatically compensate based on temperature. This product is suitable for online monitoring of redox potential in wastewater containing cyanide and chromium. Supports LoRa TDMA ad hoc networks and standard LoRaWAN protocols.
Attribute | |
Customized support | OEM, ODM, OBM |

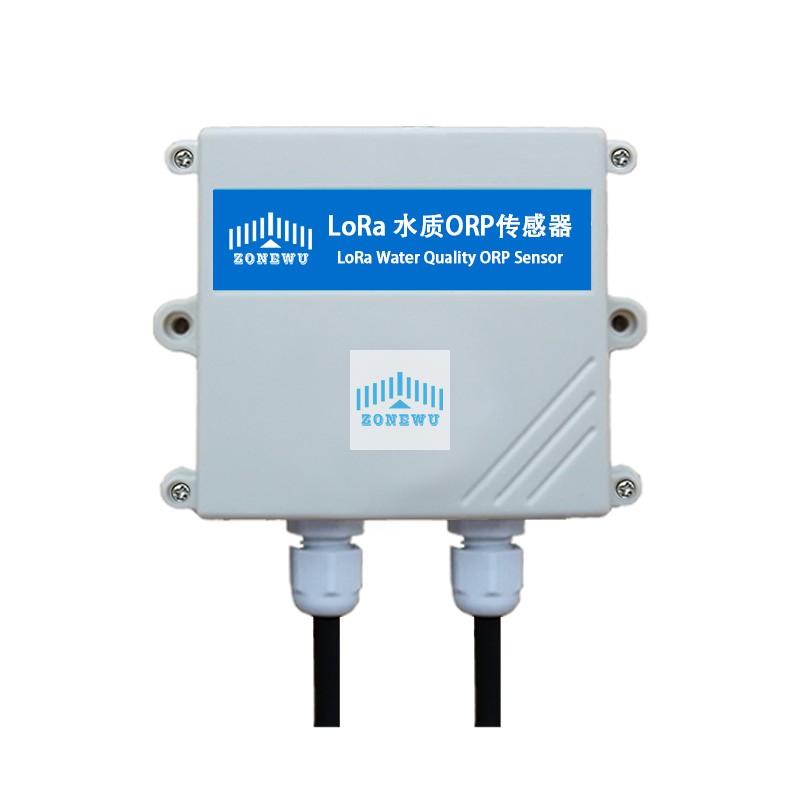

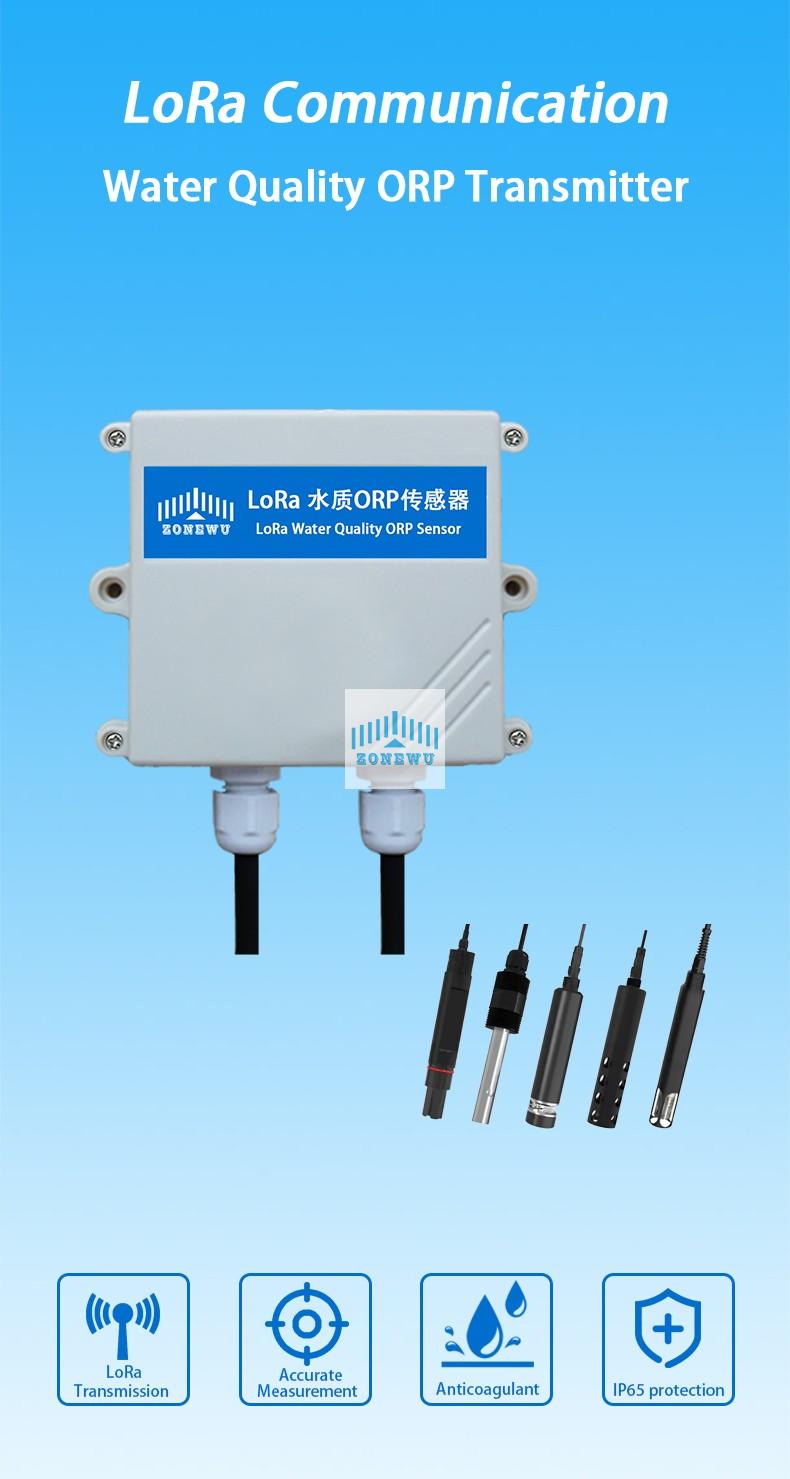

Name | Industrial LoRa water quality ORP sensor |
Description | water quality sensor |
Communication Protocol | |
Frequency | CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4 |
Tx Power | 20dBm (915) / 16dBm (868) / 17dBm (470) |
Mode | OTAA/ABP Class A |
Sensor parameters | |
Measuring range | -1999~1999mV |
Resolution | 1mV |
Accuracy | ±1mV |
Physical Characteristics | |
Power Supply | 12/24VDC |
Operating Temperature | -30°C to 70°C |

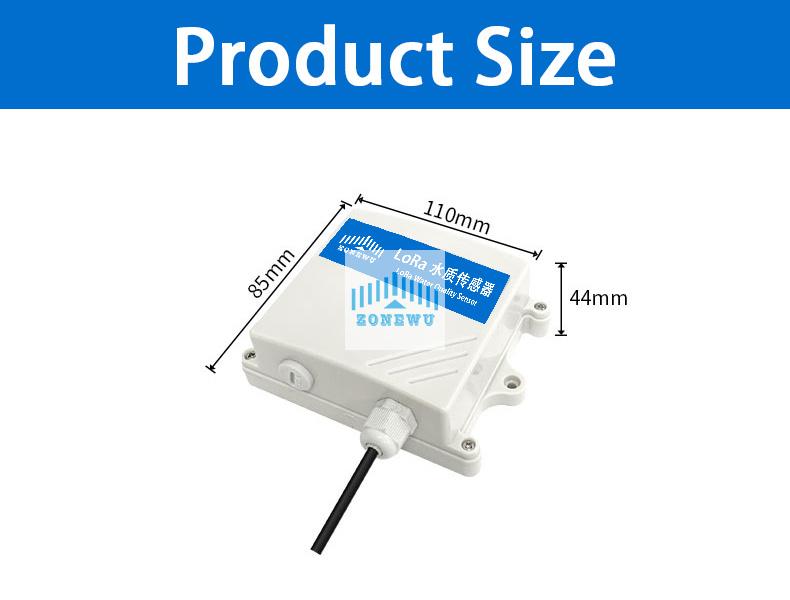

Dimensions | 90x85x40 mm |

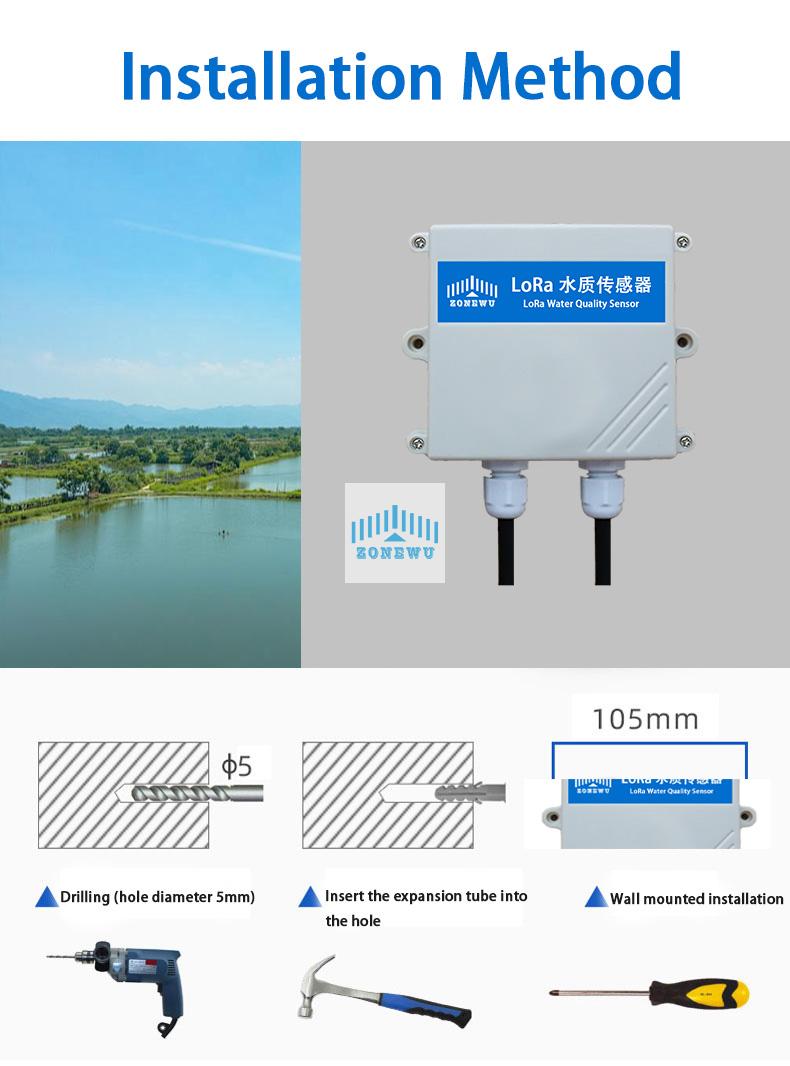

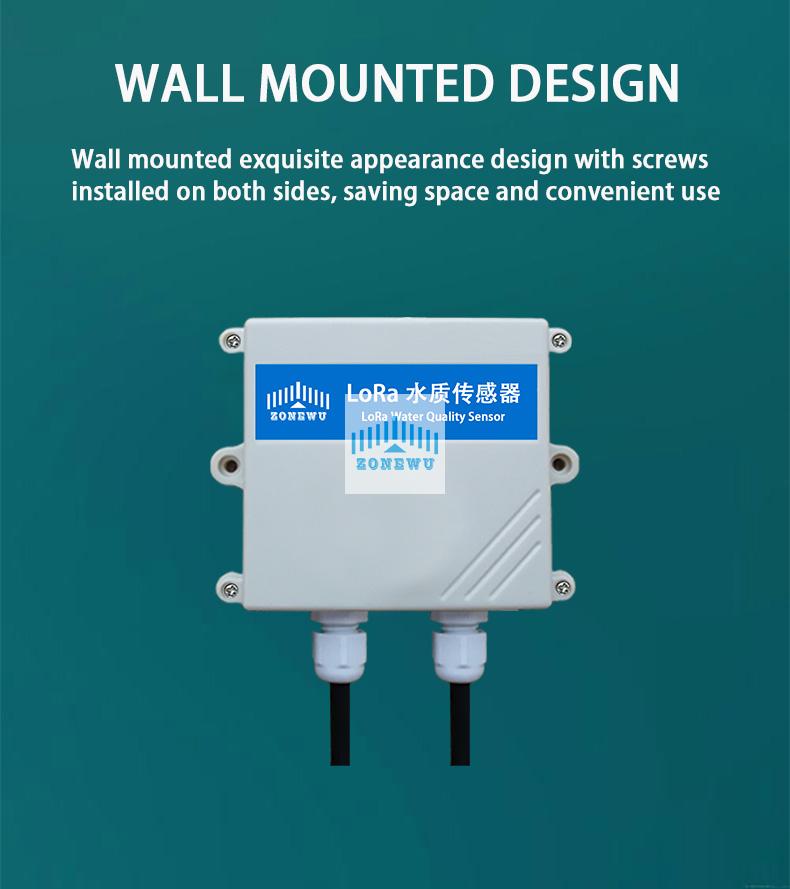

Installation | Wall Mounting |
