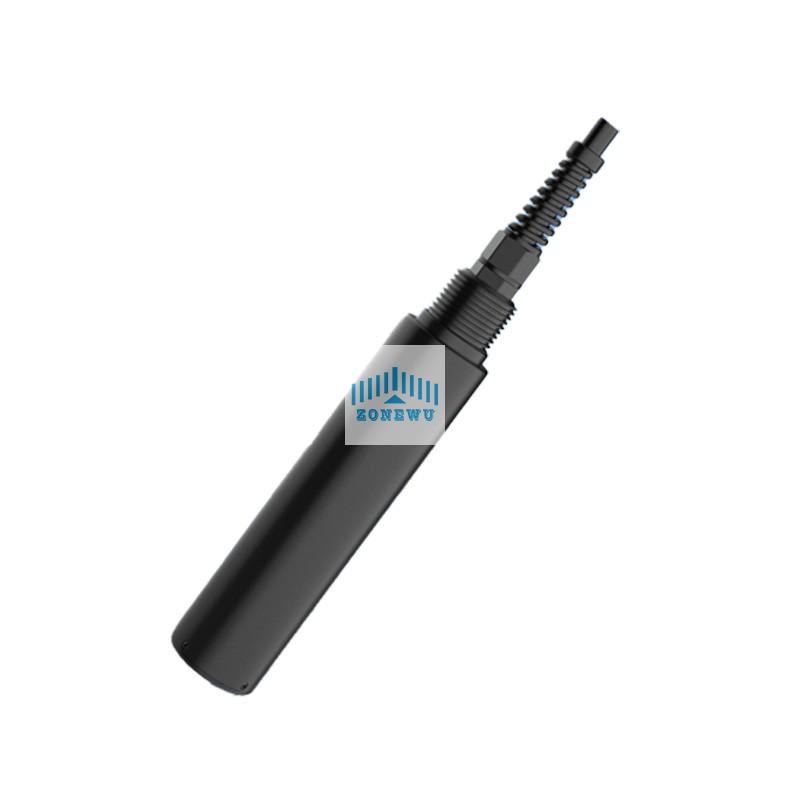

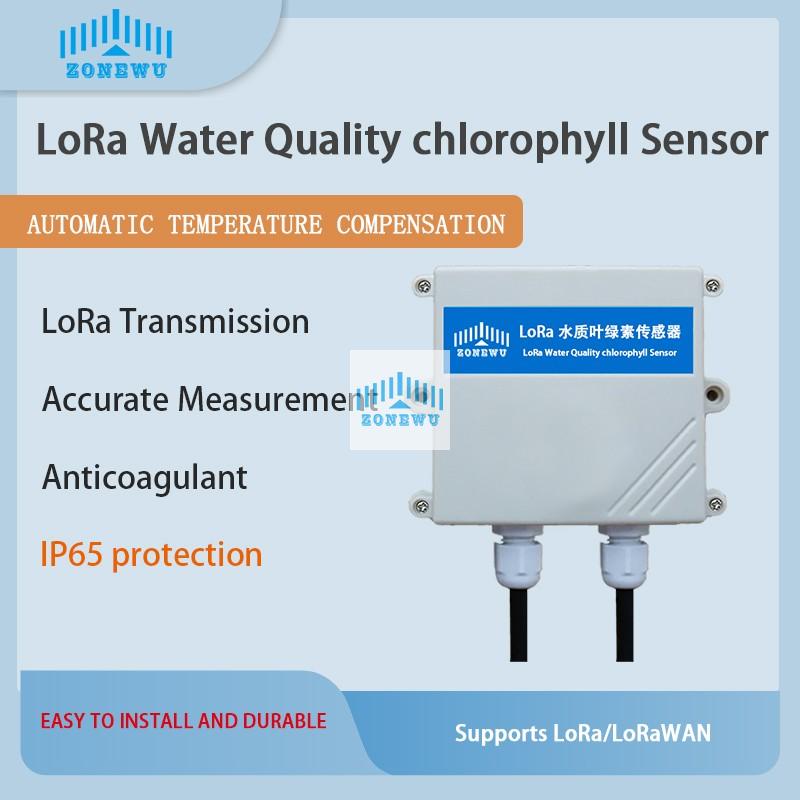

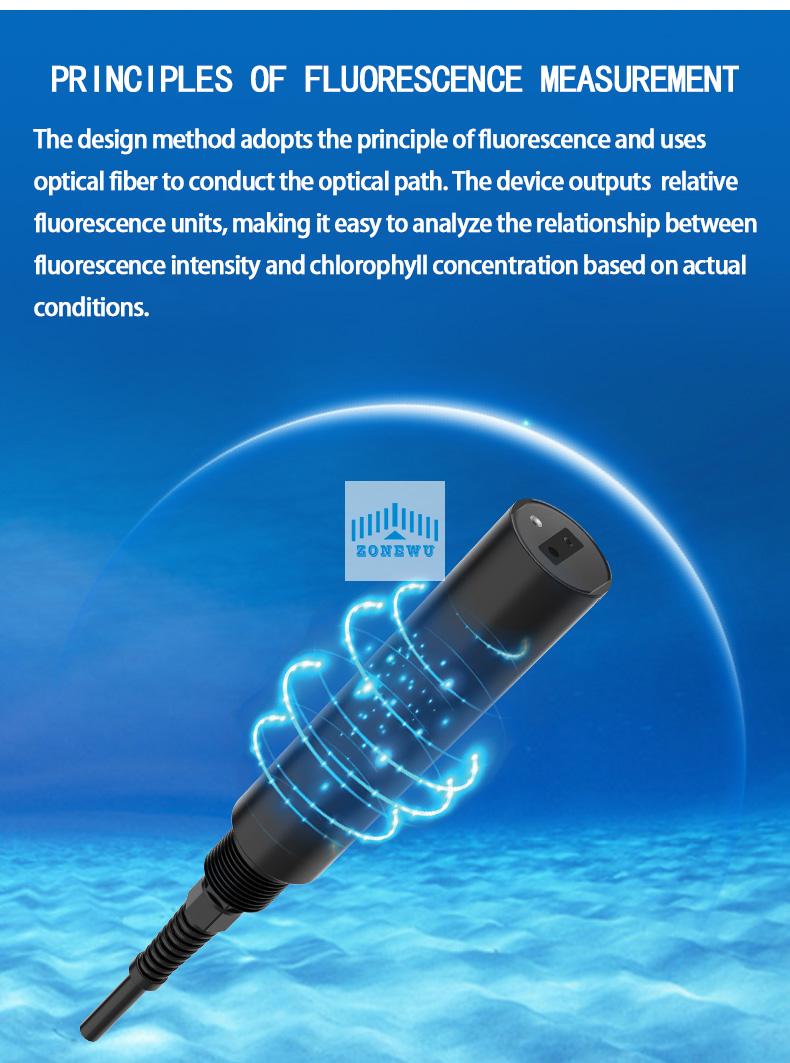

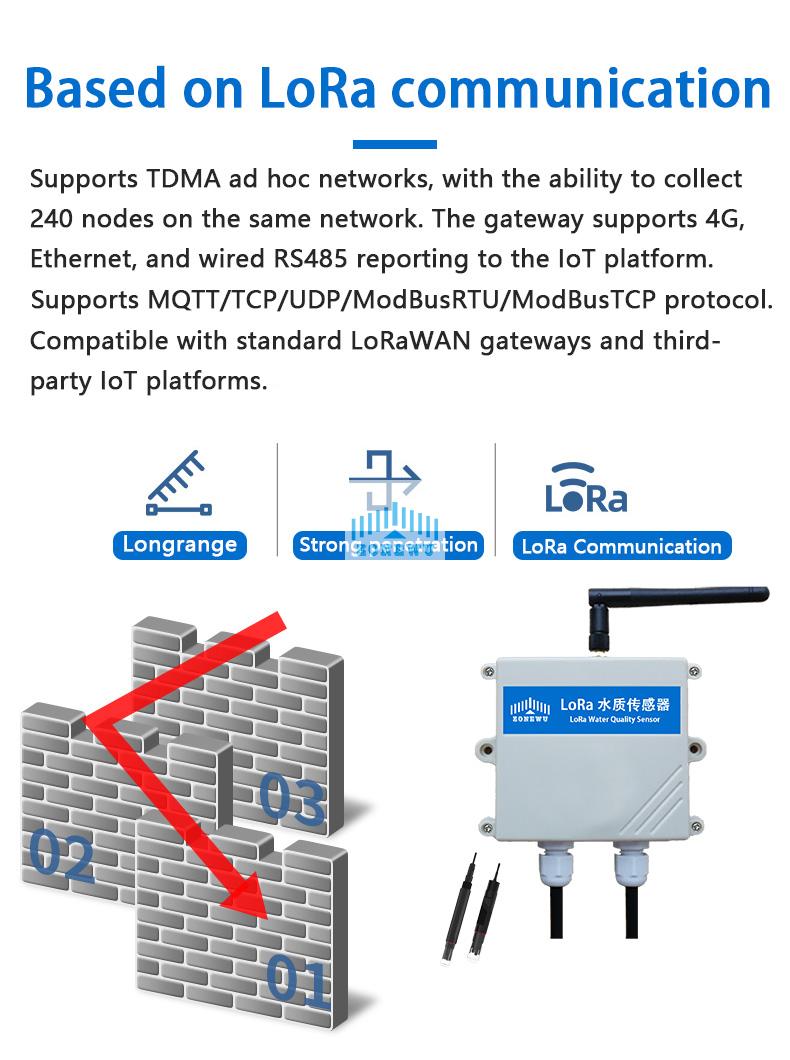

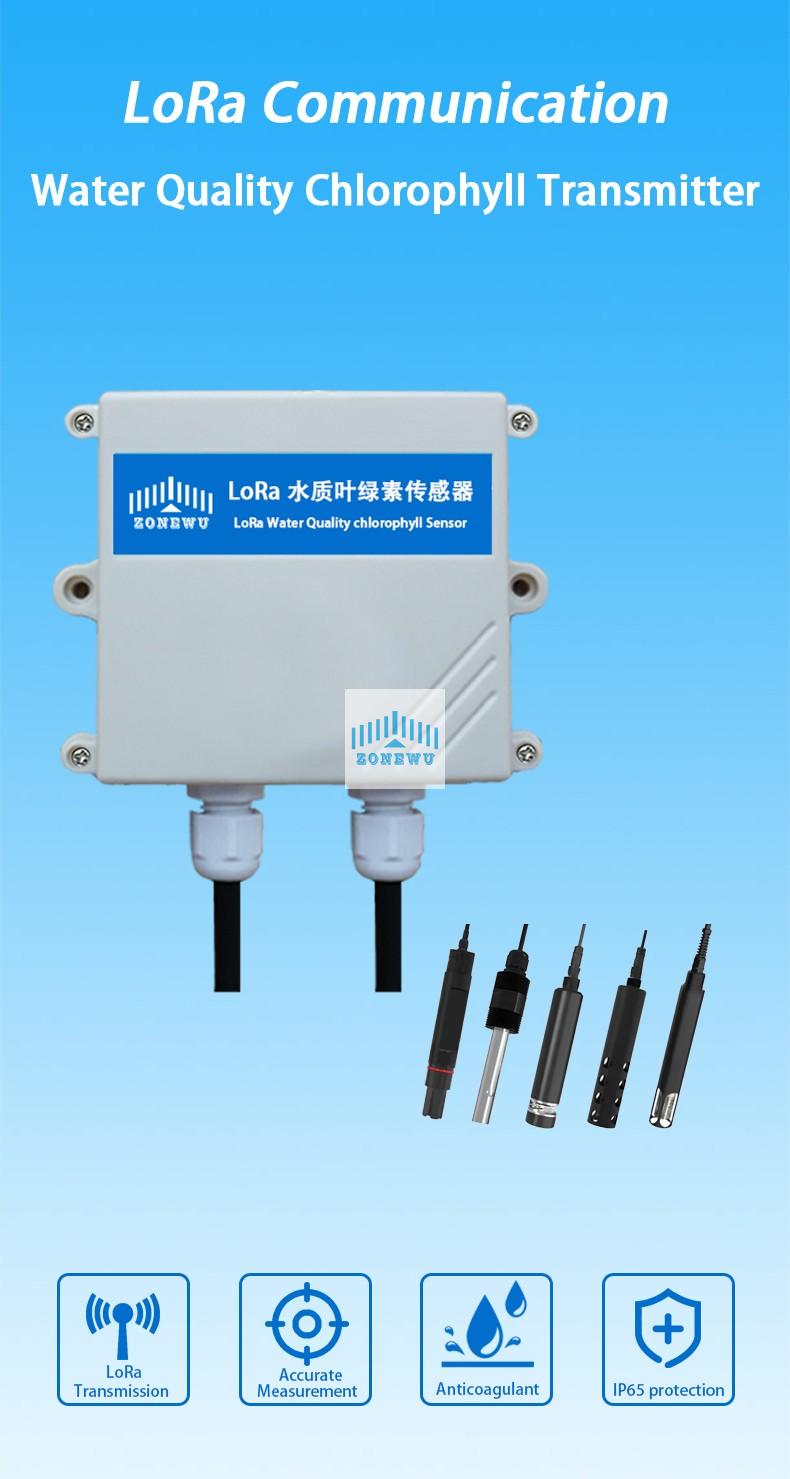

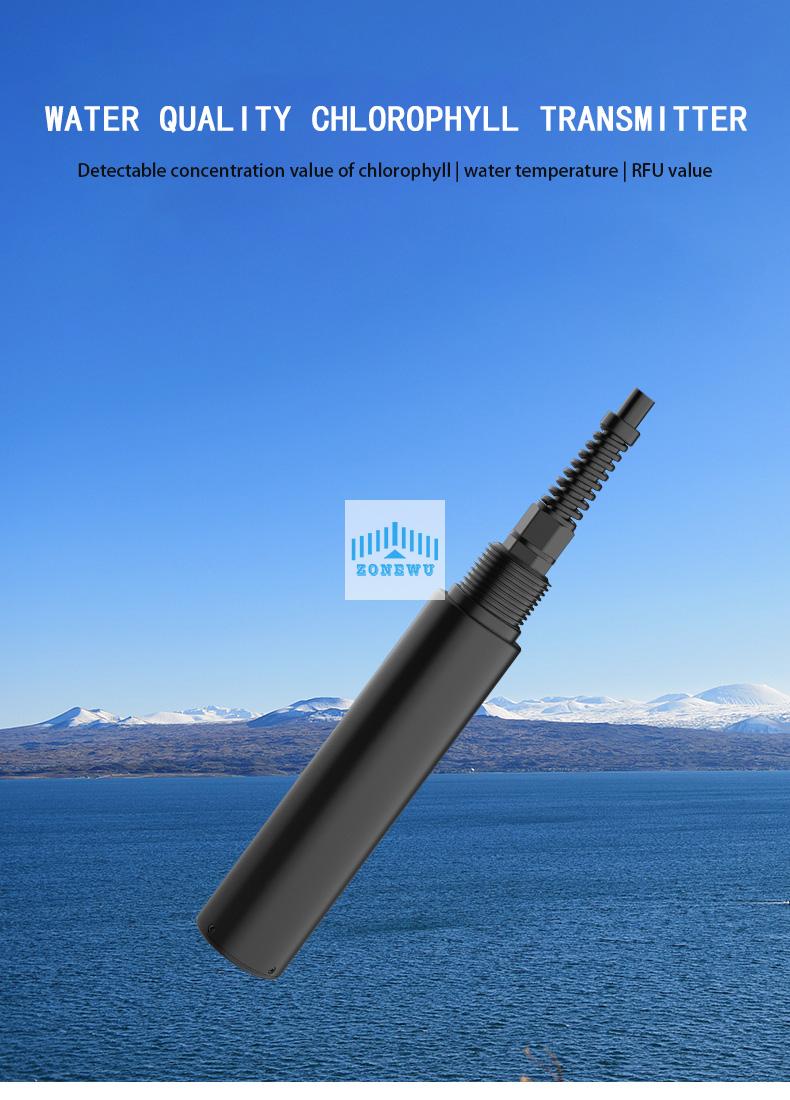

The LoRa water quality chlorophyll sensor adopts leading optical technology, equipped with automatic cleaning brushes, integrated design, efficient power management, sturdy structure, stable transmitter performance, no need for maintenance and frequent calibration, and can be used online for a long time. It can be used for research, investigation, and monitoring of rivers, lakes, ponds, marine surveys, aquaculture, drinking water sources, algae, and phytoplankton conditions. Supports LoRa TDMA networking and standard LoRaWAN protocol.
Attribute | ||
Customized support | OEM, ODM, OBM | |

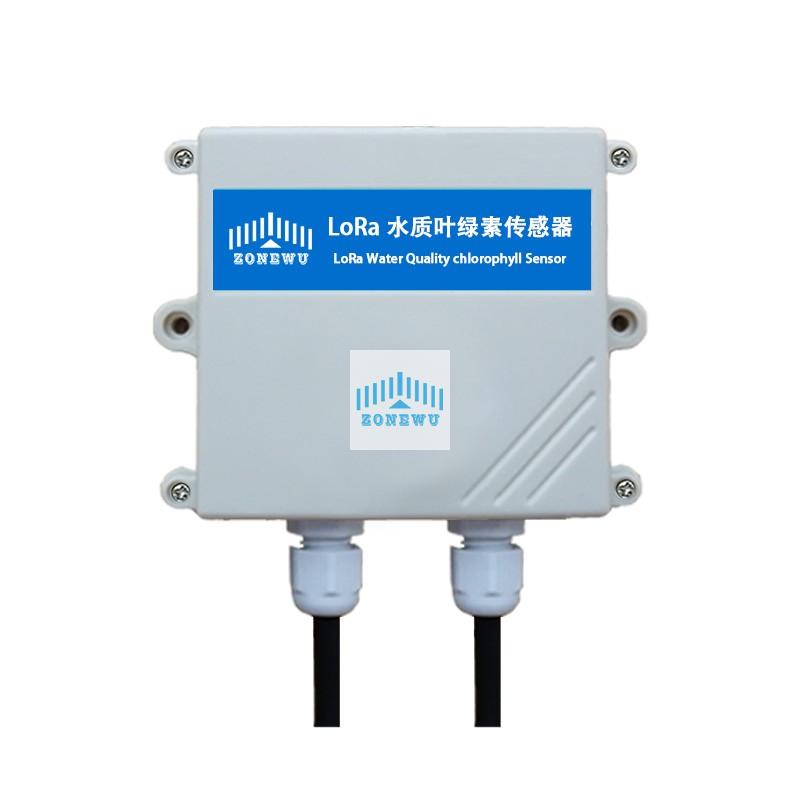

Name | Industrial LoRa water quality chlorophyll sensor | |
Description | water quality sensor | |
Communication Protocol | ||
Frequency | CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4 | |
Tx Power | 20dBm (915) / 16dBm (868) / 17dBm (470) | |
Mode | OTAA/ABP Class A | |
Sensor parameters | ||
Measuring range | 0~400μg/L;0~100RFU | |
Resolution | 0.1μg/L 0.1RFU | |
Accuracy | ±5%FS(25℃);±0.5℃ | |
Physical Characteristics | ||
Power Supply | 12/24VDC | |
Operating Temperature | -30°C to 70°C | |

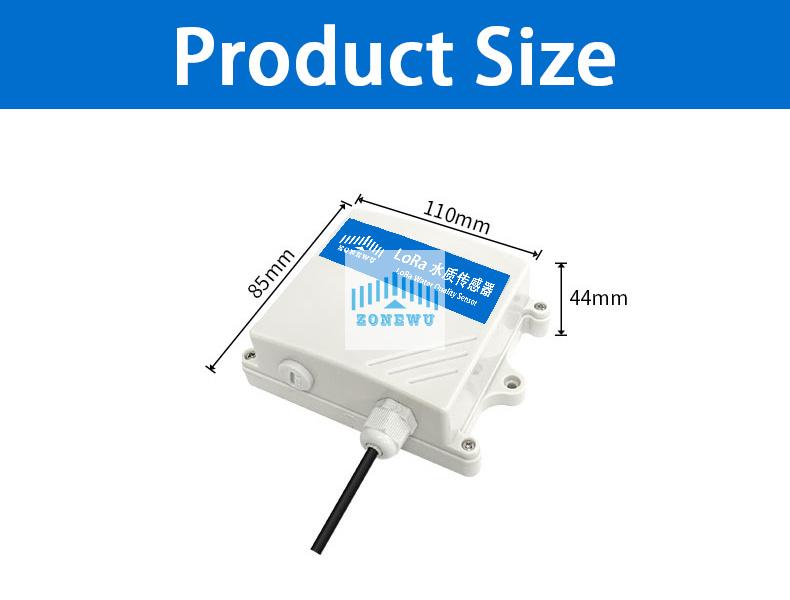

Dimensions | 90x85x40 mm | |

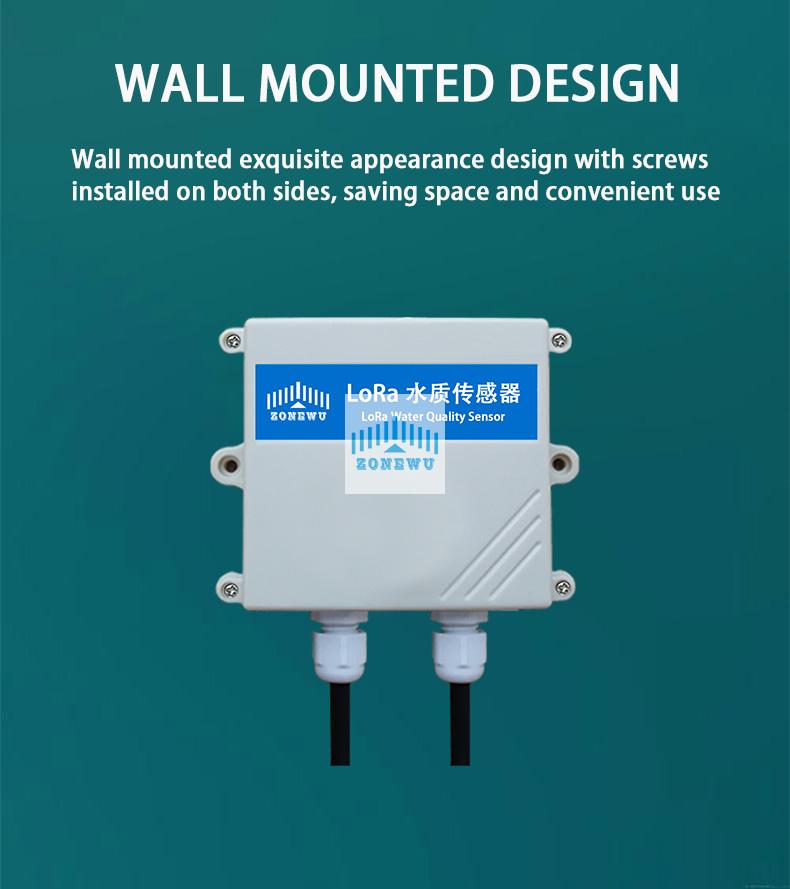

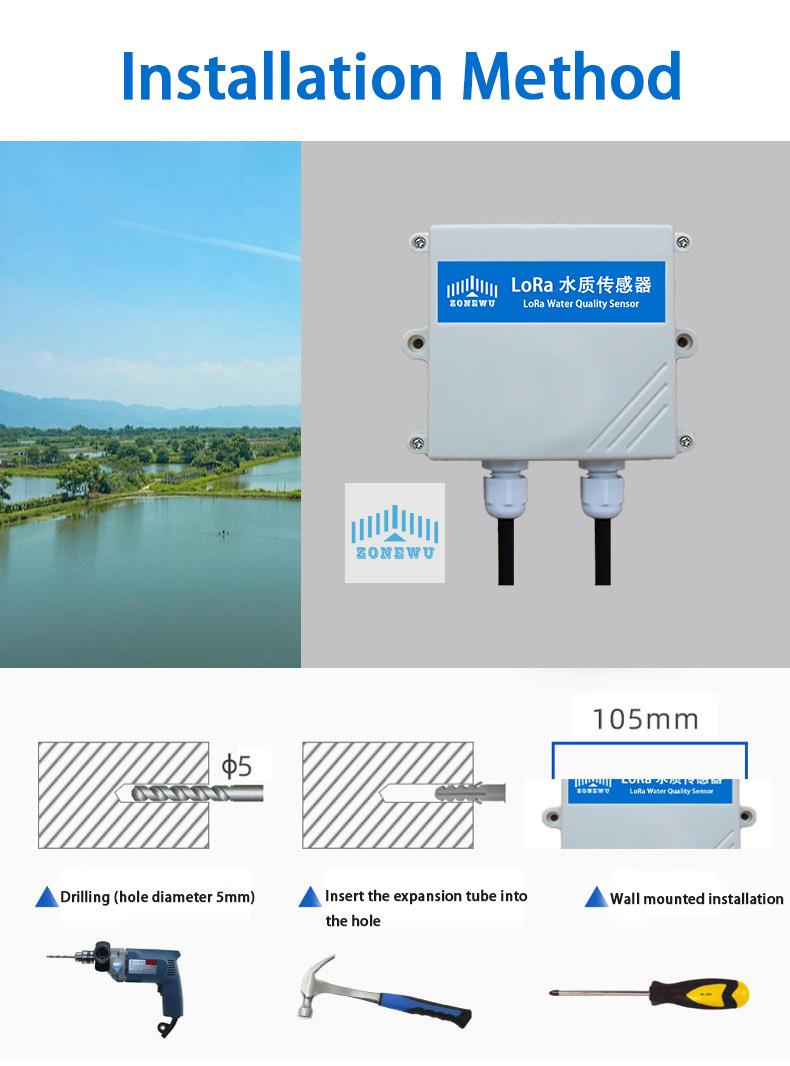

Installation | Wall Mounting |
