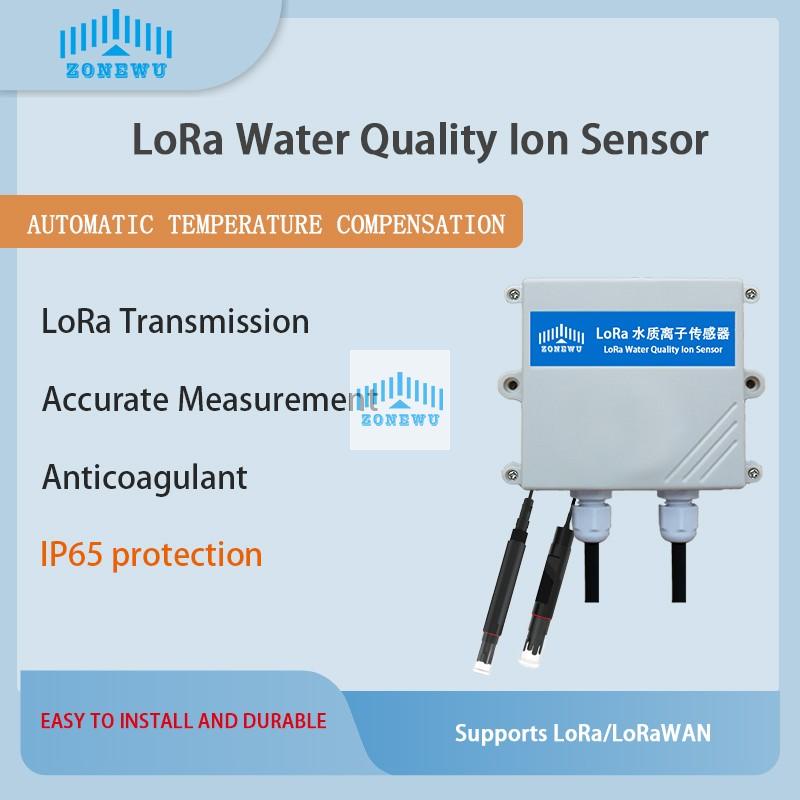

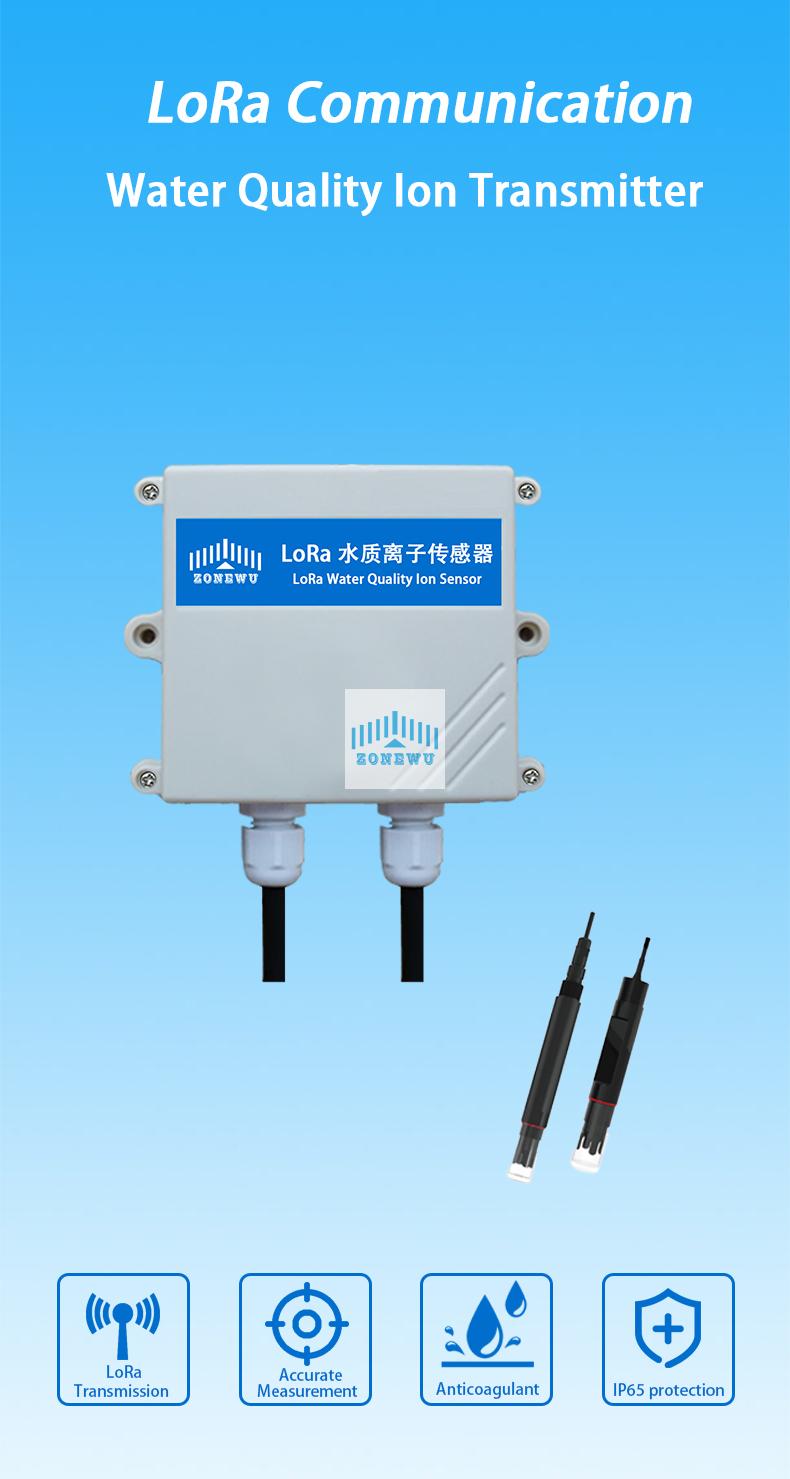

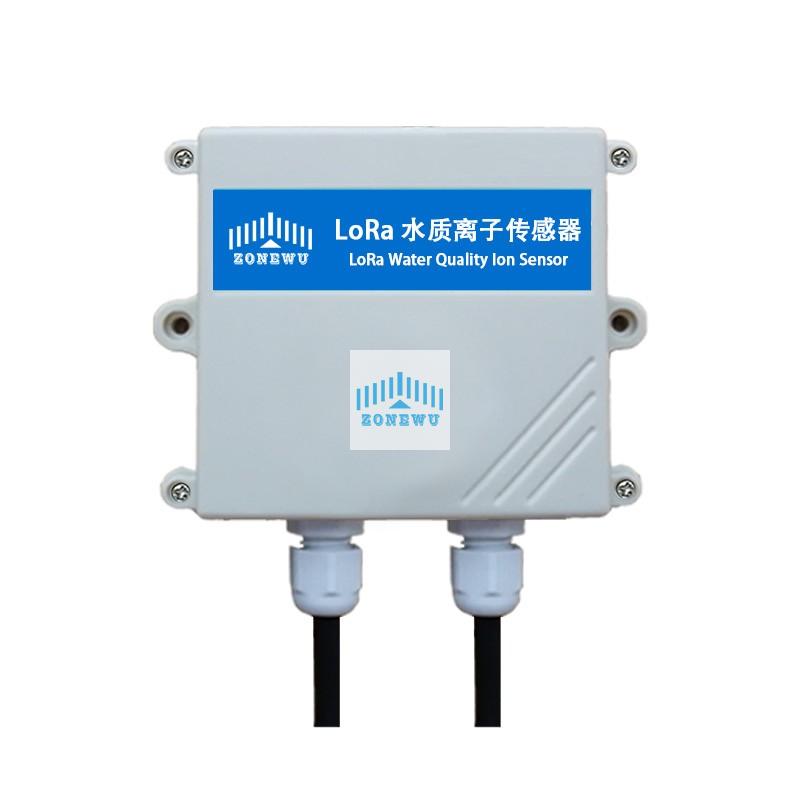

LoRaWAN water ion sensor

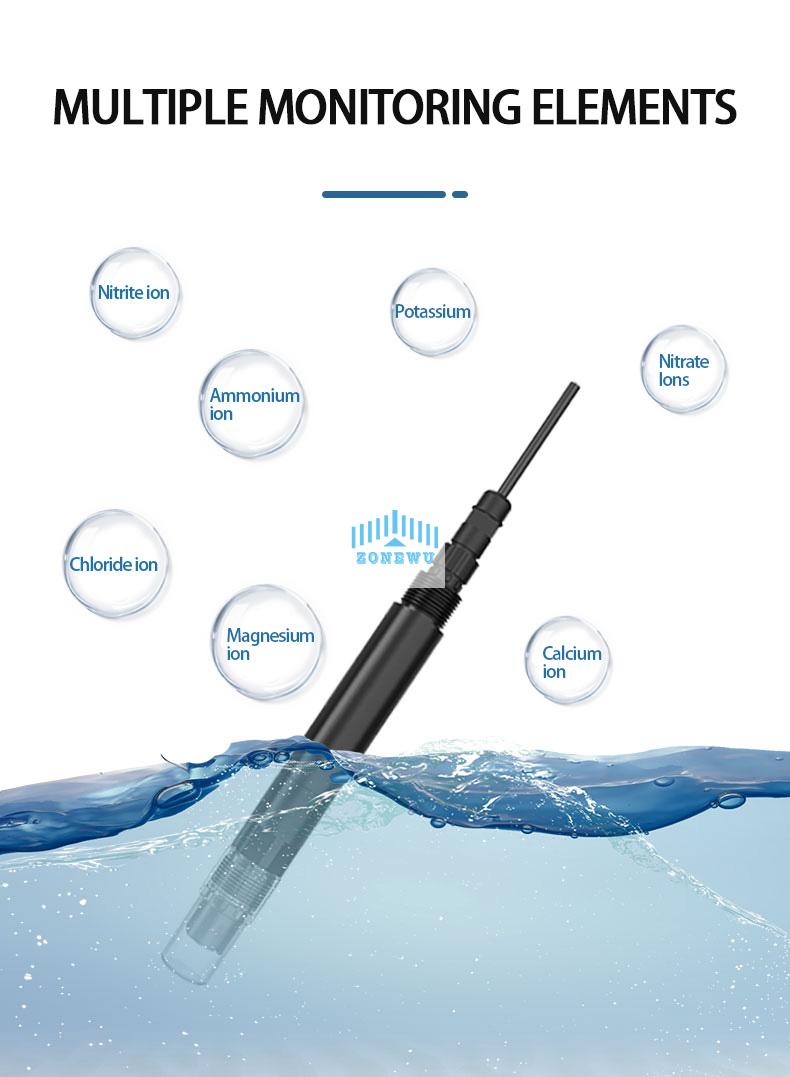

The LoRa water quality ion sensor is a device that measures the concentration of various ions in water, with 8 options: ammonium ions, nitrite ions, nitrate ions, magnesium ions, sodium ions, potassium ions, chloride ions, calcium ions, etc. Supports LoRa self-organizing network and standard LoRaWAN protocol, widely used for online automatic continuous analysis and detection of ions in industrial wastewater, surface water, drinking water, seawater, as well as industrial production process control.

Specifications

Attribute
Customized support	OEM, ODM, OBM
Name	Industrial LoRa water quality ion sensor
Description	water quality sensor
Communication Protocol	LoRaWAN,LoRa TDMA Networking
Frequency	CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4
Tx Power	20dBm (915) / 16dBm (868) / 17dBm (470)
Mode	OTAA/ABP Class A
Sensor parameters
Measuring range	0-100.00mg/L(does not support chloride ions) 0-1000.0mg/L (only supports sodium, magnesium, and calcium ions) 0-3500.0mg/L (only supports chloride ions)
Resolution	0.01mg/L\|0.1mg/L\|0.1mg/L
Accuracy	5%FS
Physical Characteristics
Power Supply	12/24VDC
Operating Temperature	-30°C to 70°C
Dimensions	90x85x40 mm

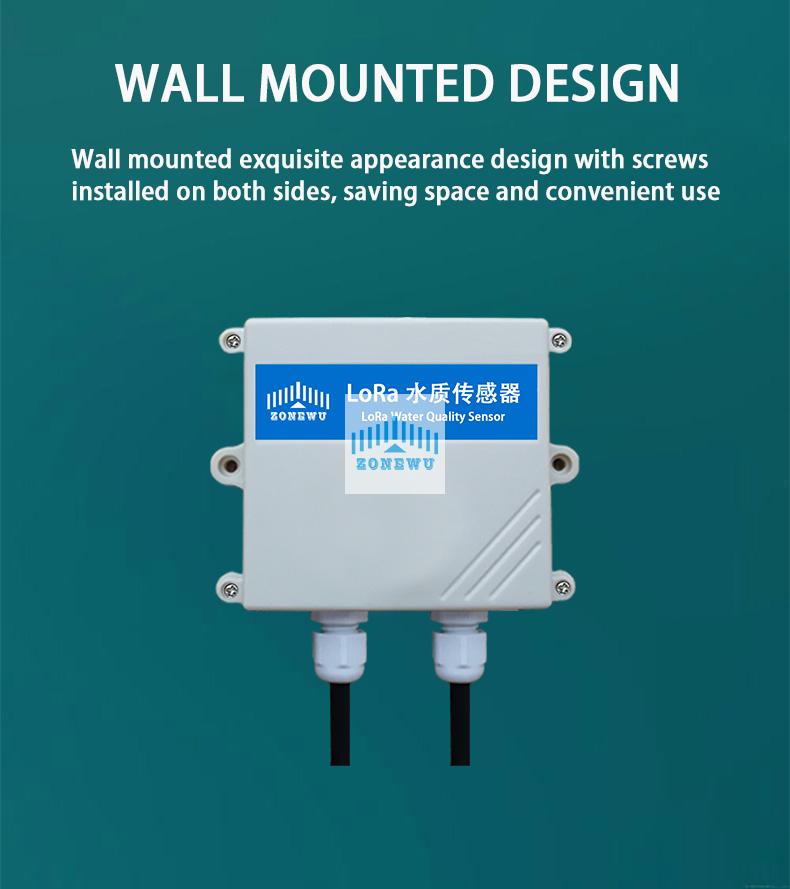

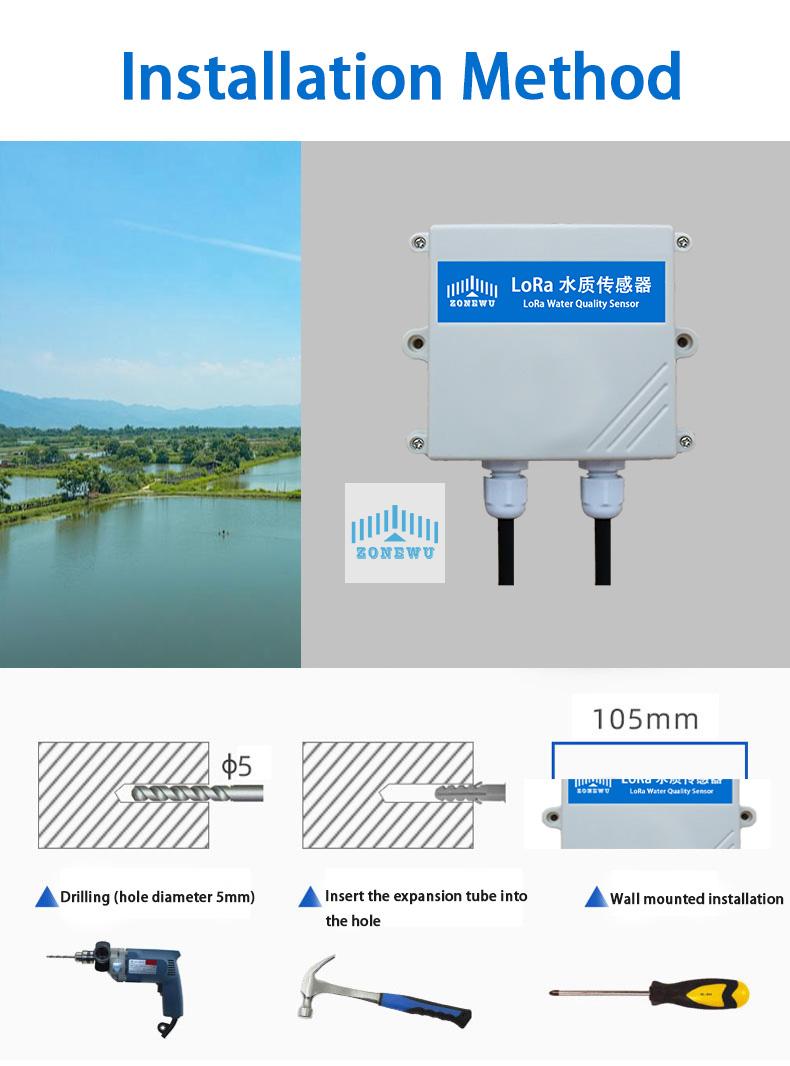

Installation	Wall Mounting
