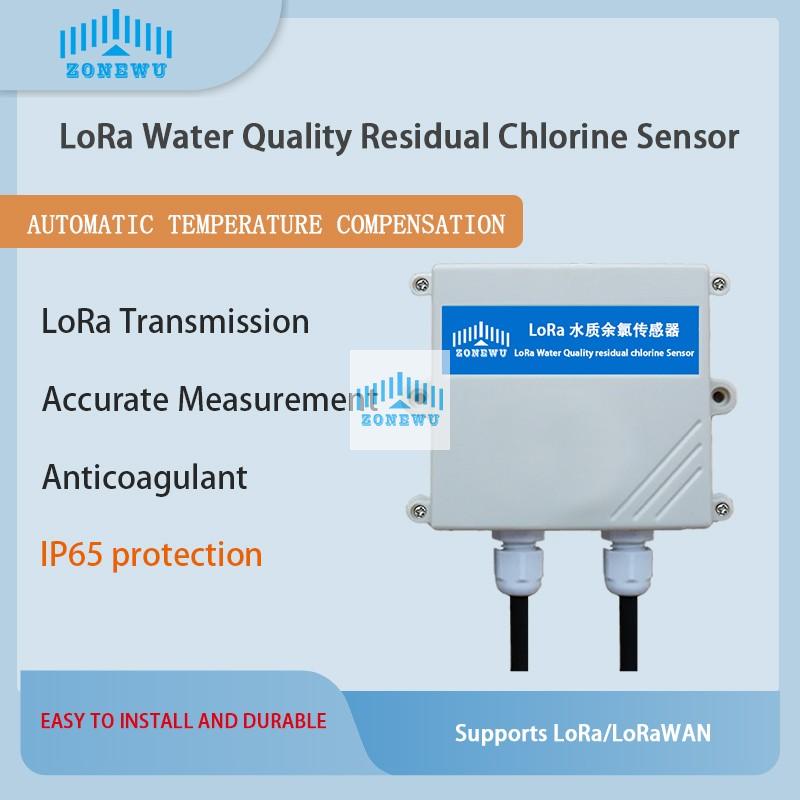

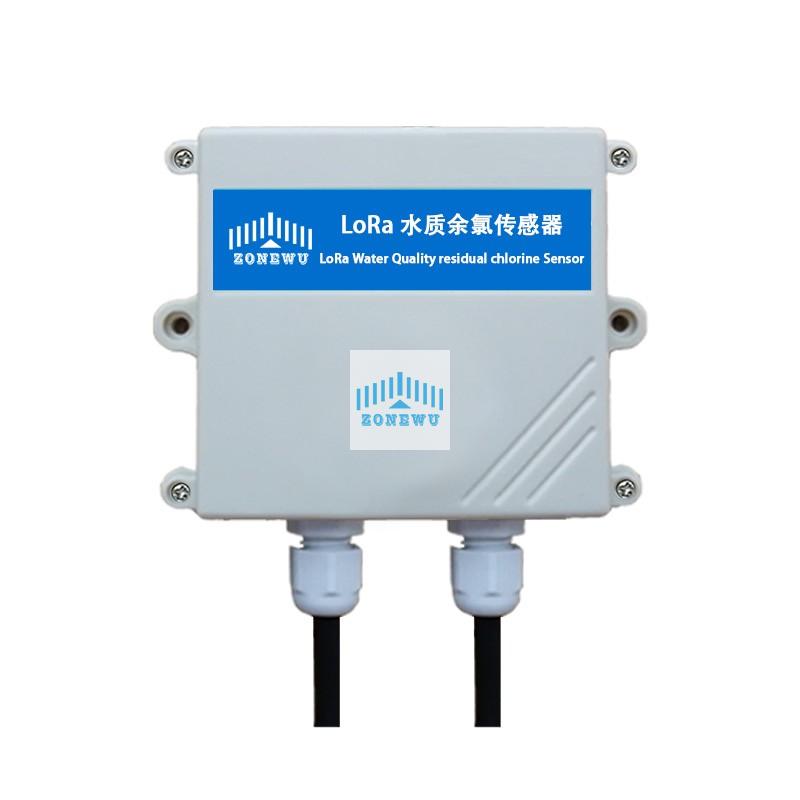

LoRa water quality residual chlorine sensor

LoRa water quality residual chlorine sensor

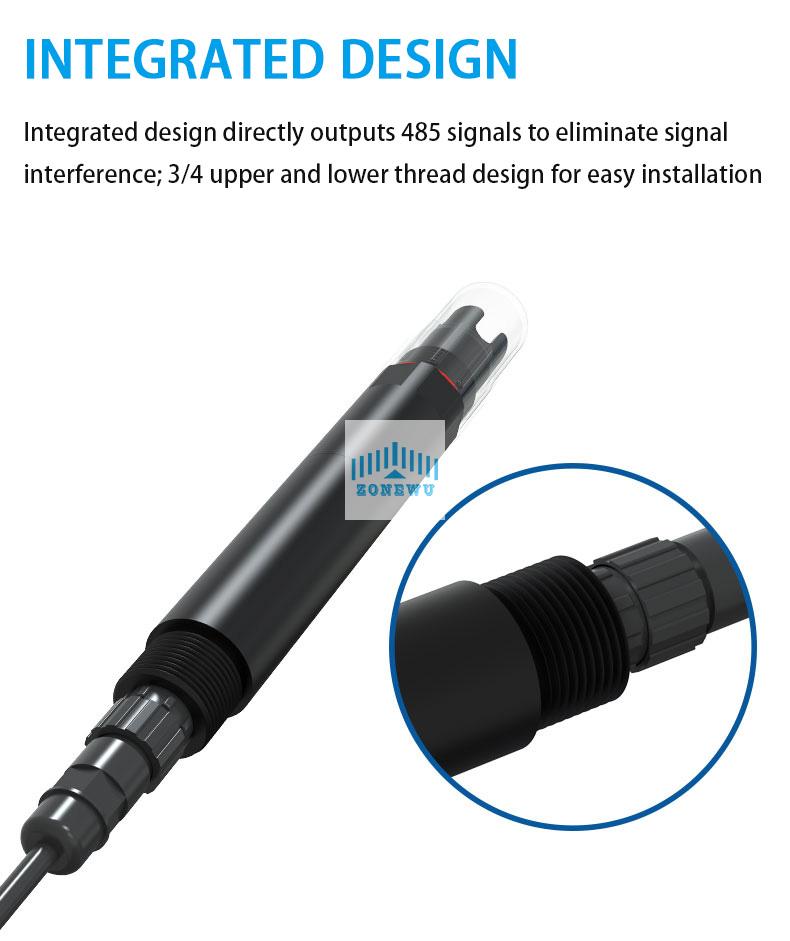

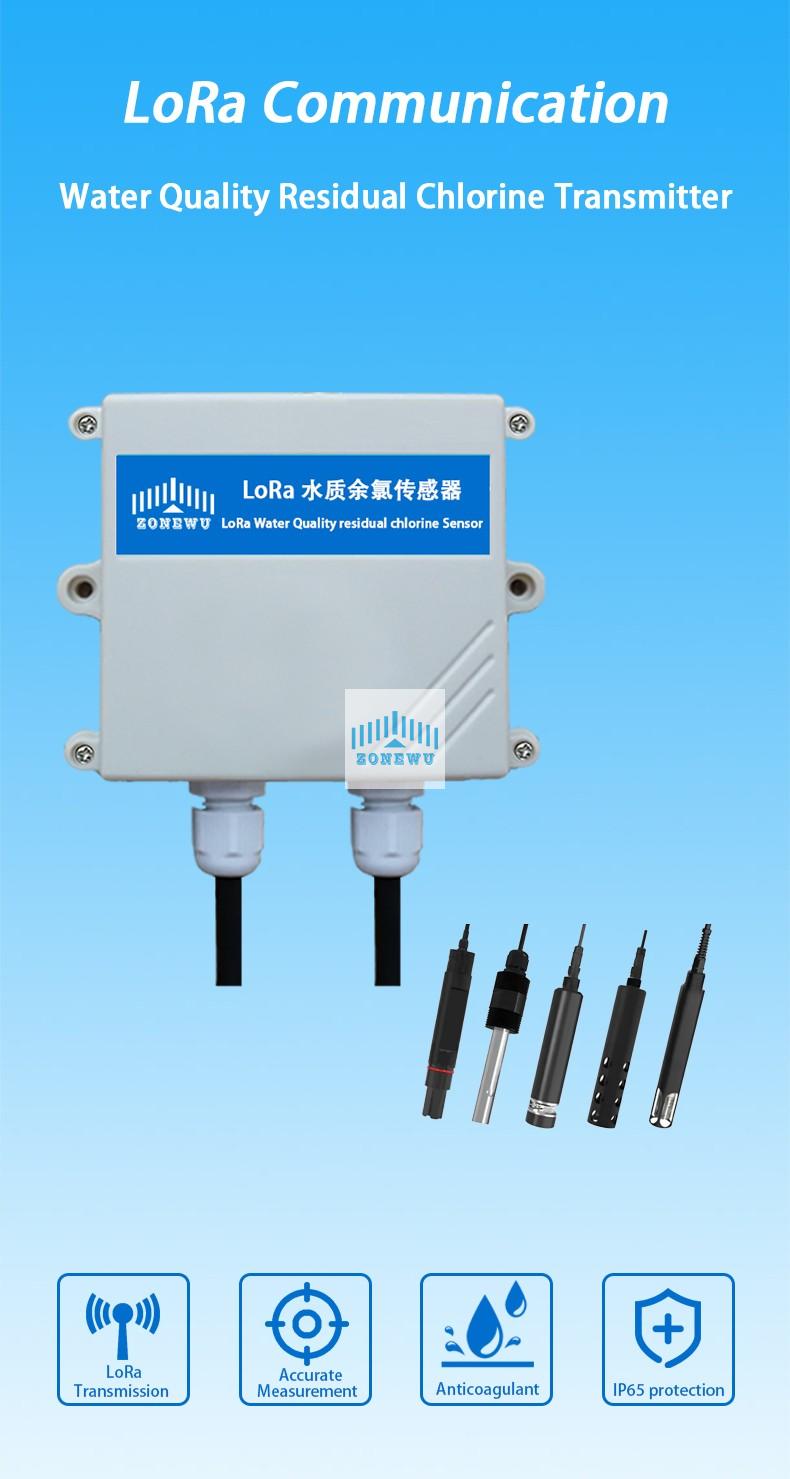

The LoRa water quality residual chlorine sensor is a device that measures the residual chlorine concentration (hypochlorous acid, hypochlorous acid ion concentration) in water bodies. Integrated design to eliminate signal interference. The use of a three electrode system has advantages such as high measurement accuracy, long working life, and no need for frequent calibration. Supports LoRa TDMA networking and standard LoRaWAN protocol.

Specifications

Attribute
Customized support	OEM, ODM, OBM
Name	Industrial LoRa water quality residual chlorine sensor
Description	water quality sensor

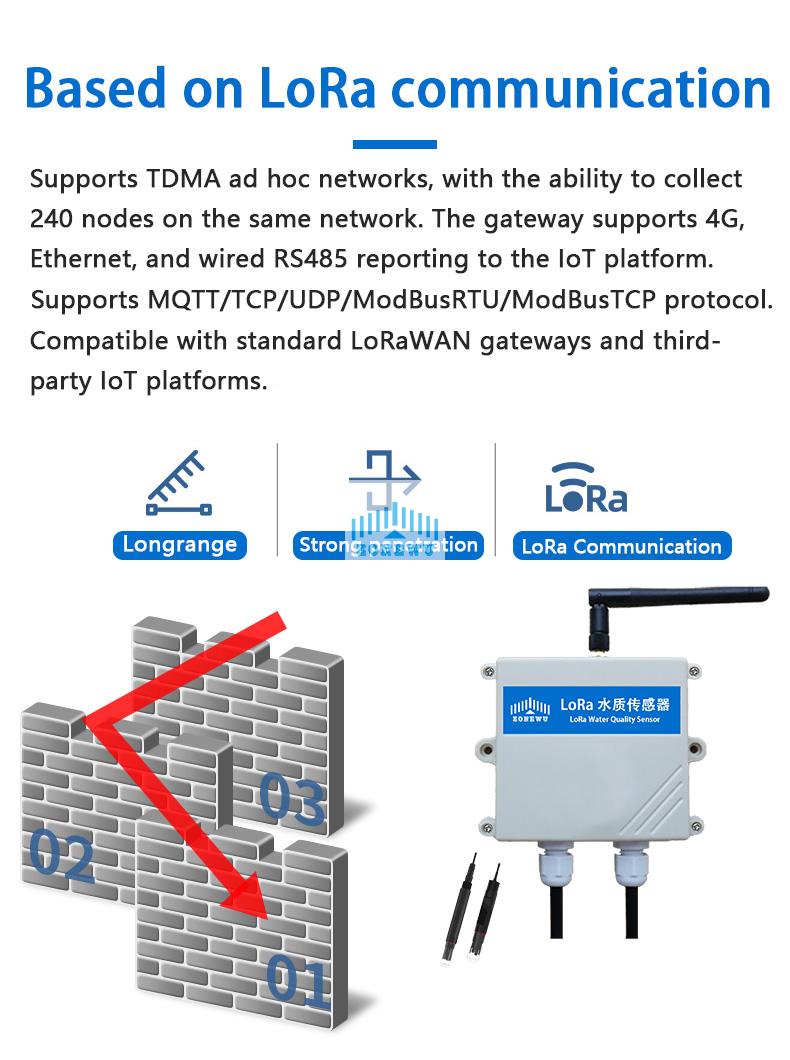

Communication Protocol	LoRaWAN,LoRa TDMA Networking
Frequency	CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4
Tx Power	20dBm (915) / 16dBm (868) / 17dBm (470)
Mode	OTAA/ABP Class A
Sensor parameters

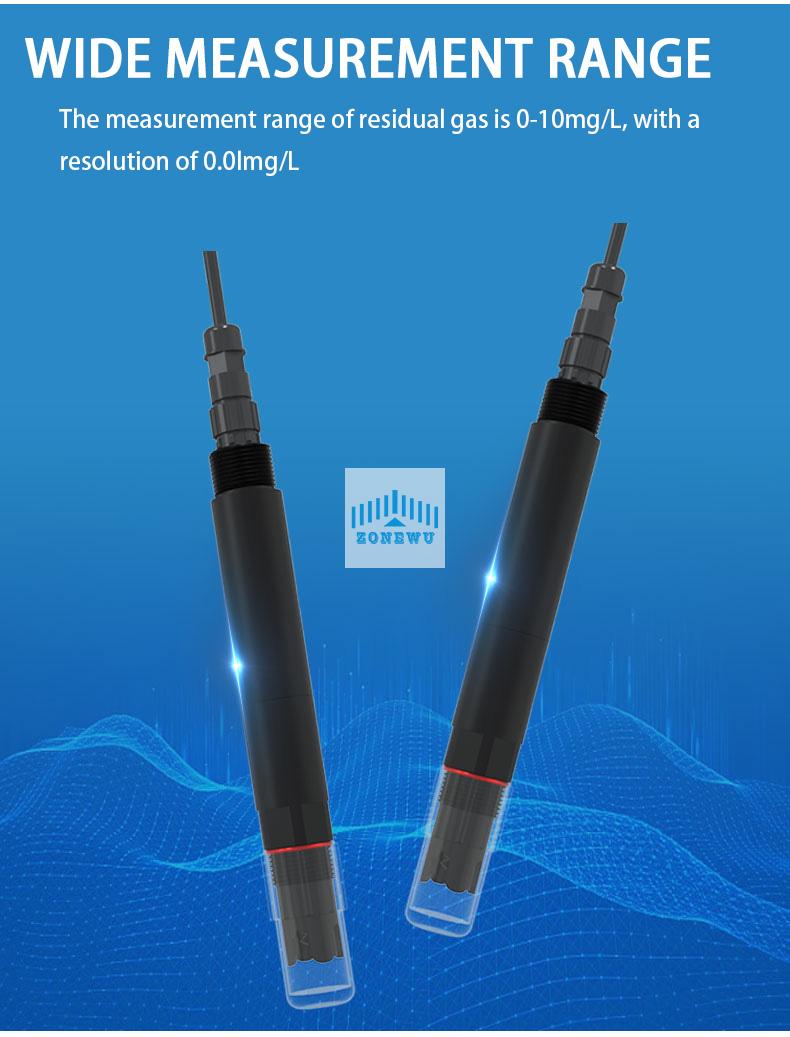

Measuring range	0-2mg/L，0-10mg/L，0-20mg/L
Resolution	0.01mg/L
Accuracy	±5%FS
Physical Characteristics
Power Supply	12/24VDC
Operating Temperature	-30°C to 70°C
Dimensions	90x85x40 mm

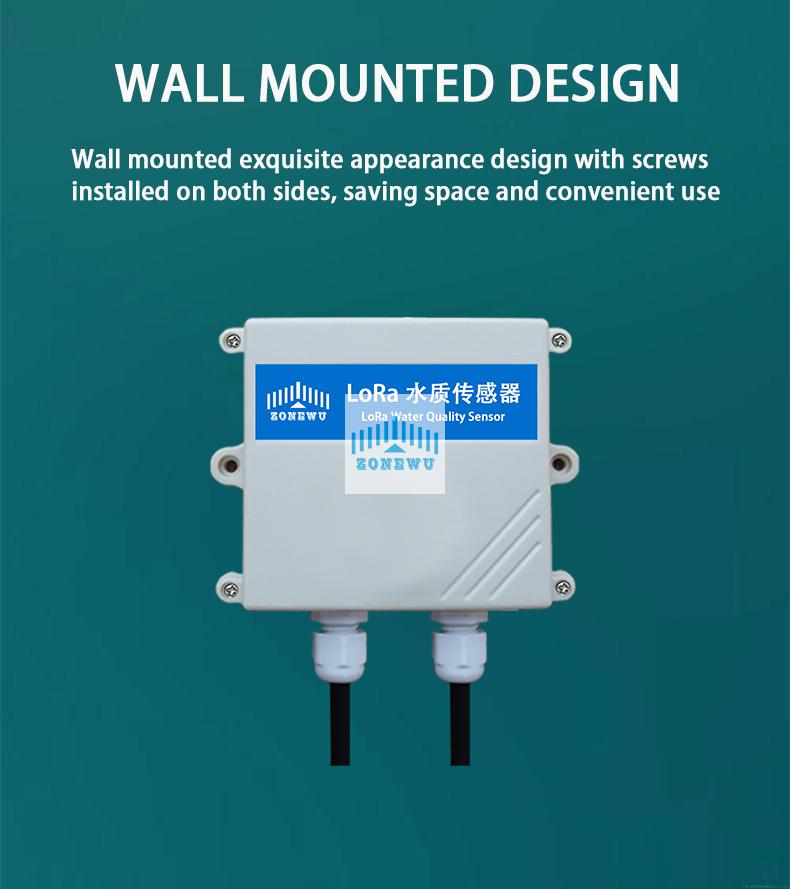

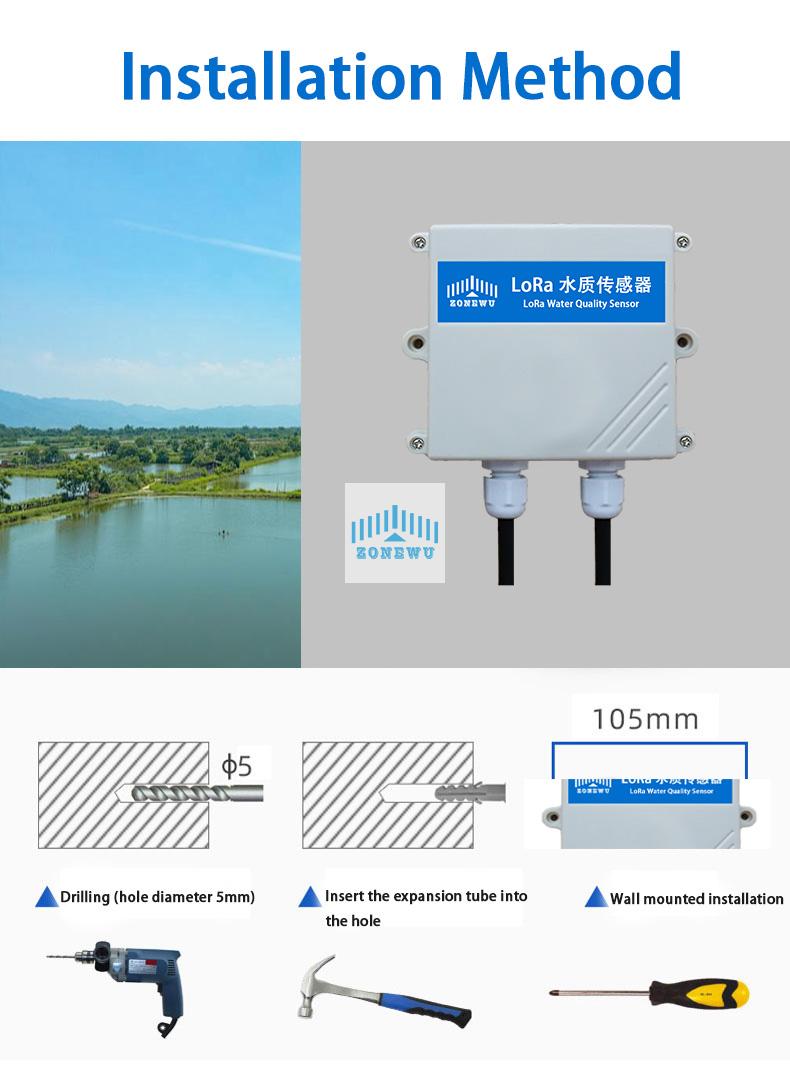

Installation	Wall Mounting
