High quality temperature vibration transmitter

High quality temperature vibration transmitter

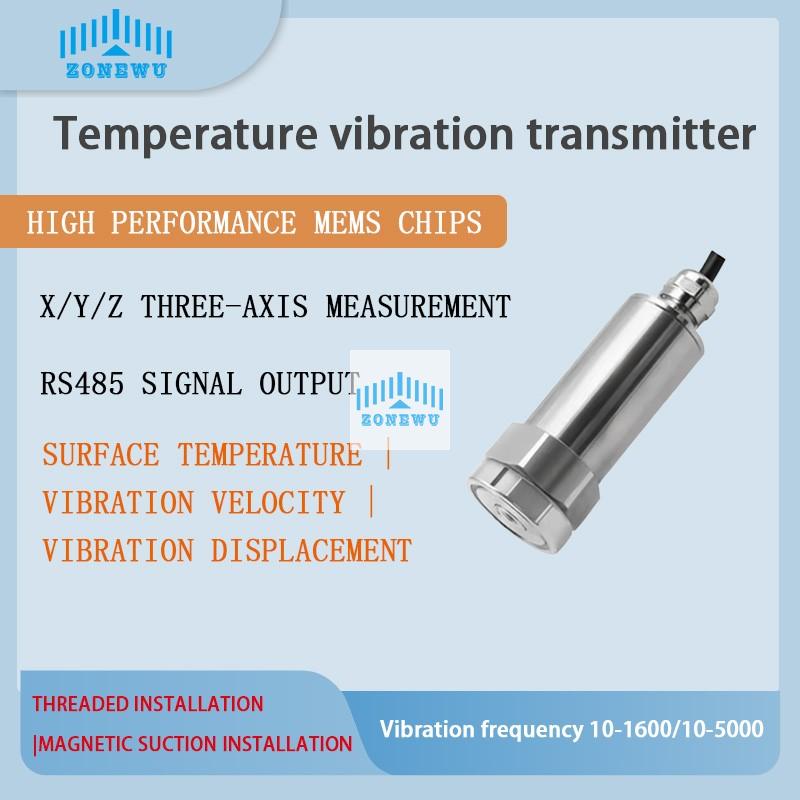

The temperature vibration transmitter adopts high-performance MEMS chips and is developed and produced using embedded technology, temperature sensing technology, and vibration sensing technology. It is a high-performance, low-power, anti-interference, and composite vibration sensor. The product is widely used for online temperature and vibration measurement of rotating equipment such as motors, reducers, fans, generators, air compressors, centrifuges, and water pumps in industries such as coal mining, chemical engineering, metallurgy, and power generation.

High quality temperature vibration sensor8.jpg

Power supply	DC10-30V/3.6V lithium sub-battery

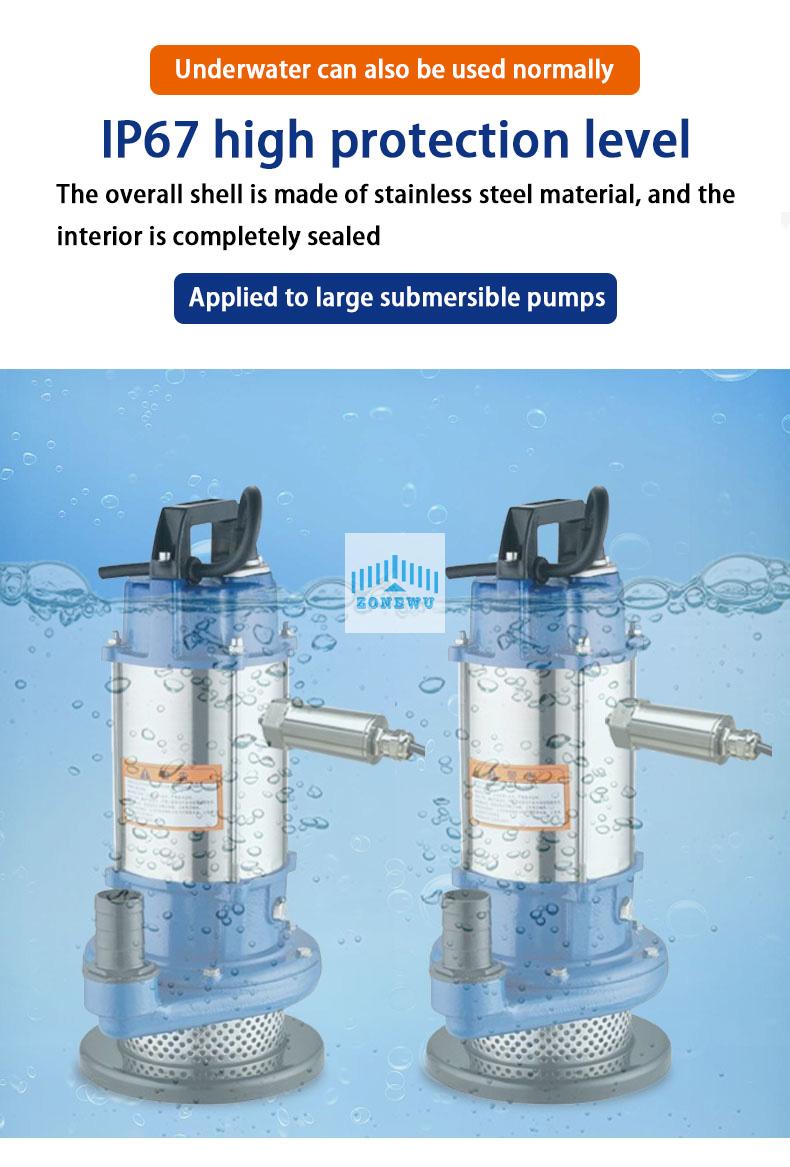

Protection class	IP67
Frequency range (Hz)	10-1600
Vibration measurement direction	1-axis or 3-axis
WorKing environment	-40℃~+80℃, 0%RH~80%RH
Vibration speed measurement range (mm/s)	0-50
Vibration velocity measurement accuracy (mm/s)	±1.5% FS (@1kHz, 10mm/s)
Vibration speed display resolution (mm/s)	0.1
Surface temperature measurement range (℃)	-40~+80
Temperature display resolution (℃)	0.1
Signal output	LoRa/RS485/4-20mA/0-5v/0-10v
Detection cycle	real-time

Detailed Images

Temperature Vibration Sensor Features:

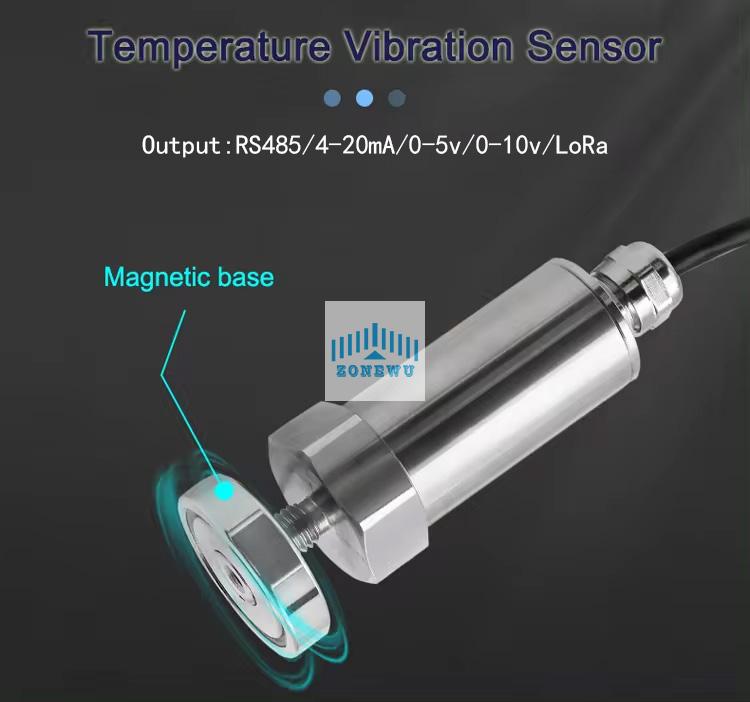

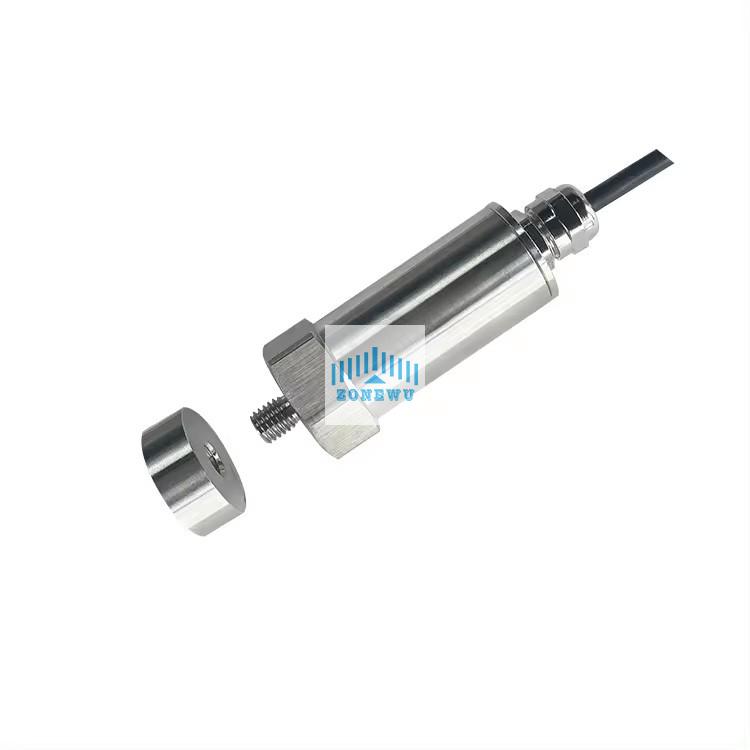

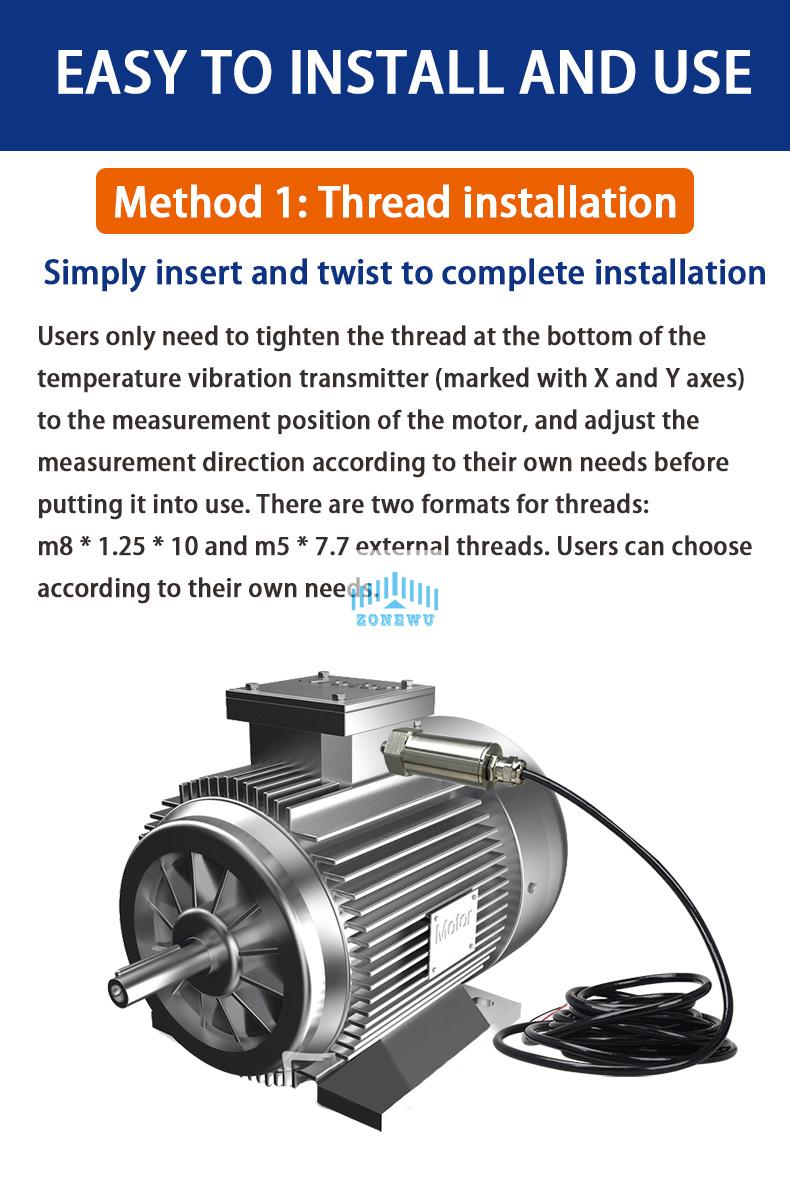

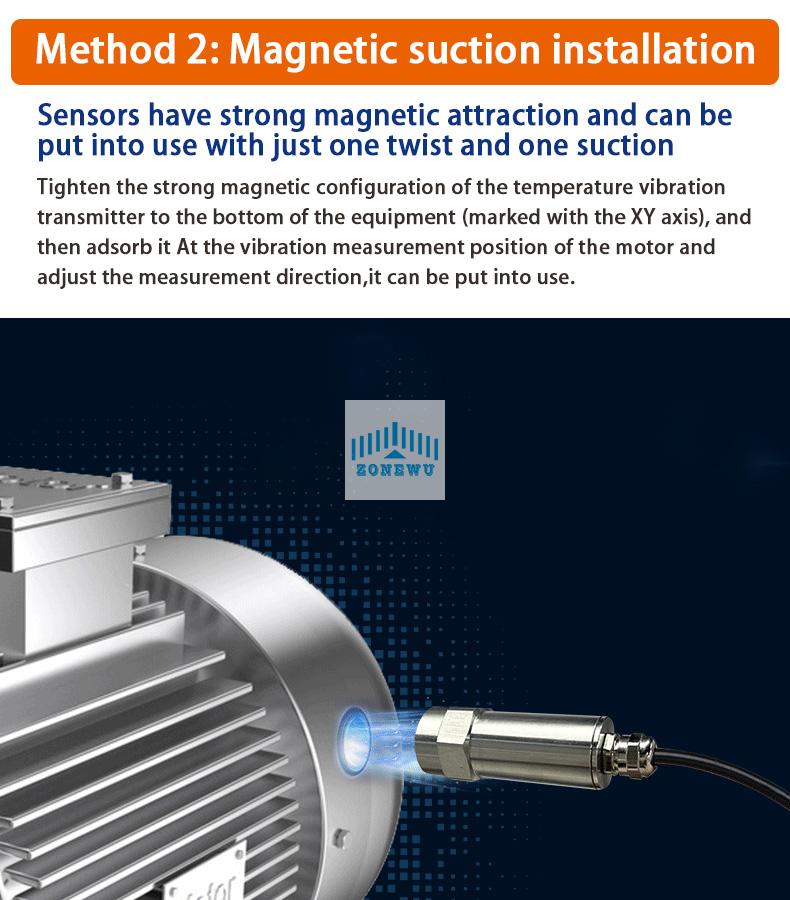

1. Using high-performance MEMS chip, high measurement accuracy and strong anti-interference ability. 2. Provide threaded installation and magnetic installation. 3. It can measure parameters such as single-axis and three-axis vibration velocity, vibration displacement, etc. 4. The surface temperature of the motor can be measured. 5. 10-30V DC wide voltage power supply. 6. Support remote upgrade.

High quality temperature vibration sensor4.jpg

High quality temperature vibration sensor5.jpg

Specifications

Attribute
Customized support	OEM, ODM, OBM
Name	High quality temperature vibration transmitter
Description	Wireless Vibration Sensor
Output signal	RS485/4-20mA/0-5V/0-10V
Operation temperature	-40℃~+80℃
Response time	<1S
Sensor parameters
Frequency range	10-1600Hz
Measuring direction	1-axis or 3-axis
Vibration Velocity Resolution	0.1mm/s
Vibration speed range	0-50mm/s
Detection accuracy	±1.5% FS(@1kHz,10mm/s)
Physical Characteristics
Power Supply	10-30VDC
Probe material	Stainless steel material
