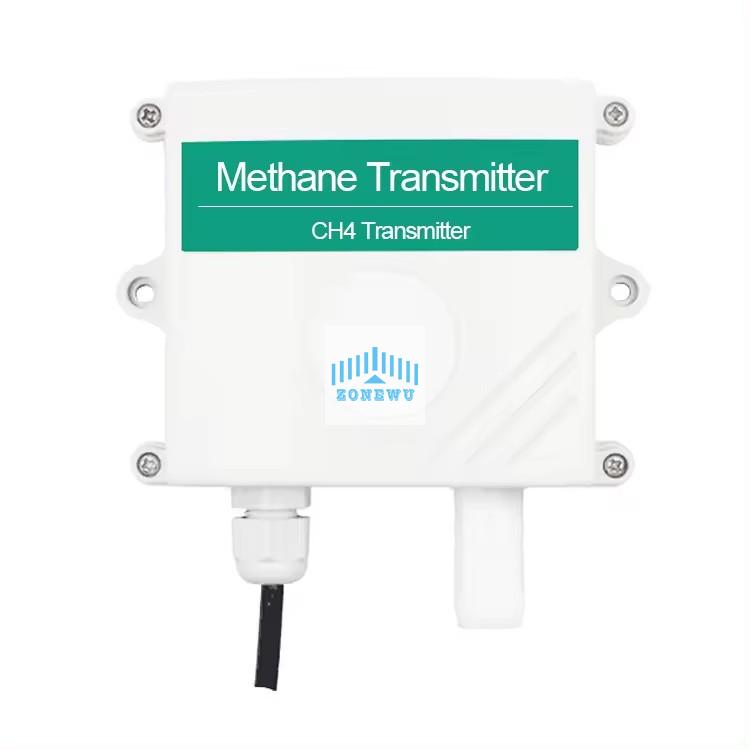

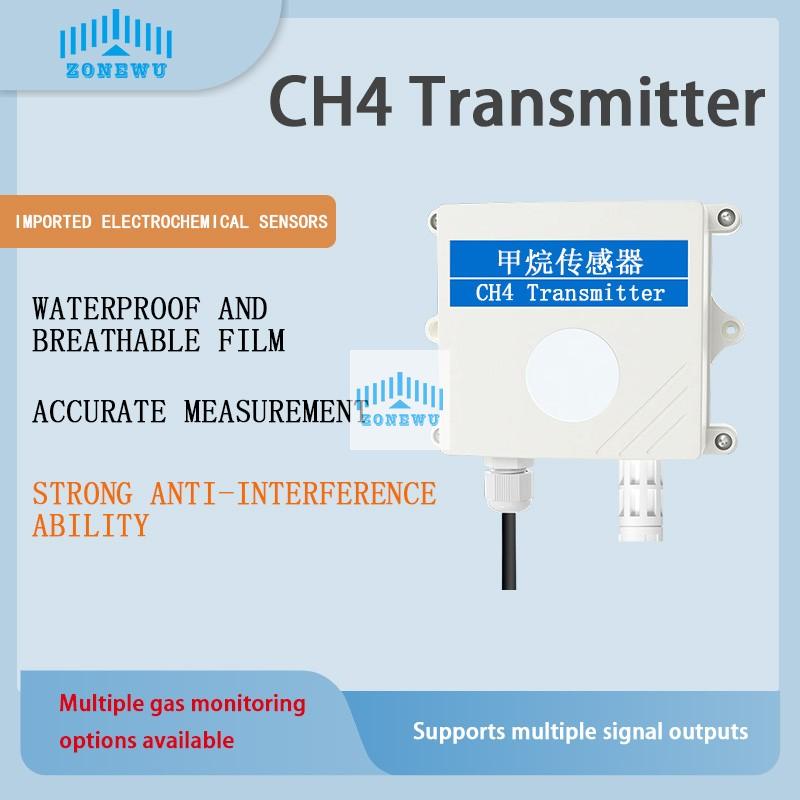

Methane transmitter

Range 0-100% LEL, other ranges can also be customized;

Sensors with explosion-proof ExdIMb rating are stable and durable;

High measurement accuracy, up to ± 5% FS, and repeatability up to ± 7%;

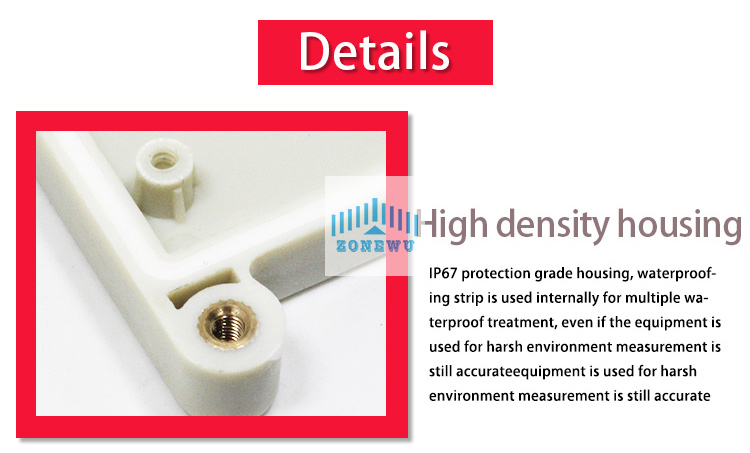

The wall mounted waterproof shell is easy to install and has a high level of protection, making it suitable for harsh on-site environments.

CH4 transmitter7.jpg

Specifications

Attribute
Customized support	OEM, ODM, OBM
Name	CH4 methane gas meter methane sensor
Detecting Gas	CH4

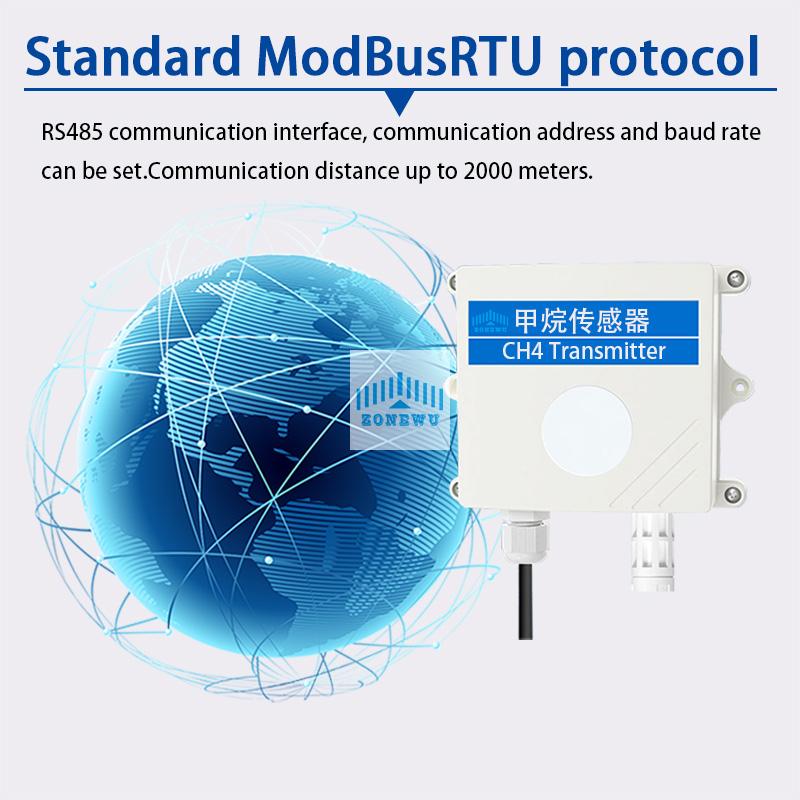

Output signal	4-20mA/0-5V/0-10V/RS485
Working temperature	-20~+50 ℃, 0-90% RH (no condensation)
Response time	≤15s
Application	Methane gas detection
CH4 Measurement
Range	0-100LEL
Resolution ratio	1%LEL
Detection accuracy	±5%FS
Physical Characteristics
Power Supply	10-30VDC
Material	ABS Plastic

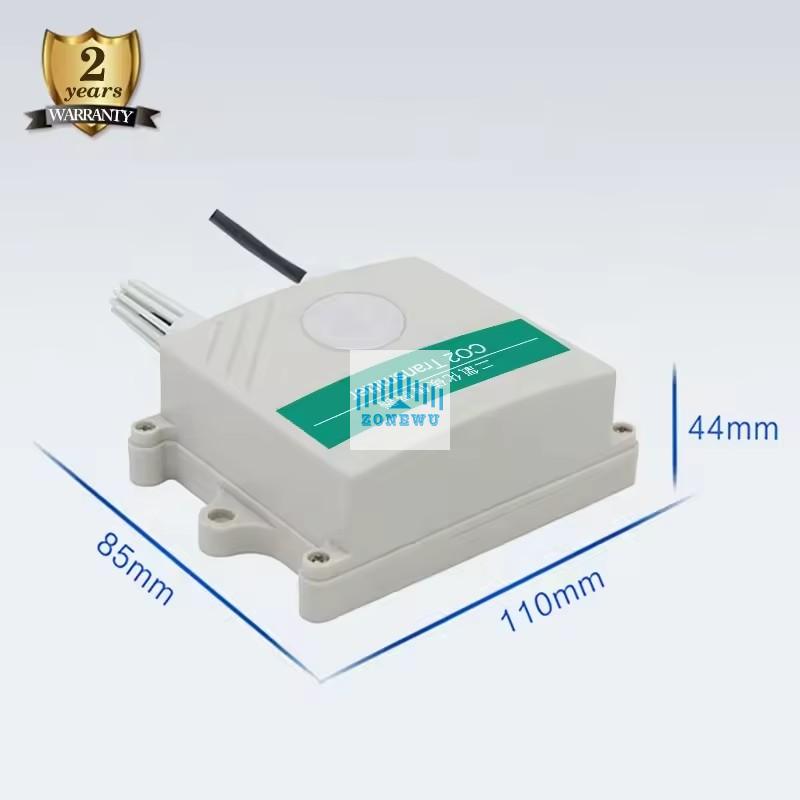

Physical dimensions	110x85x44mm
Installation	Wall mounted installation
