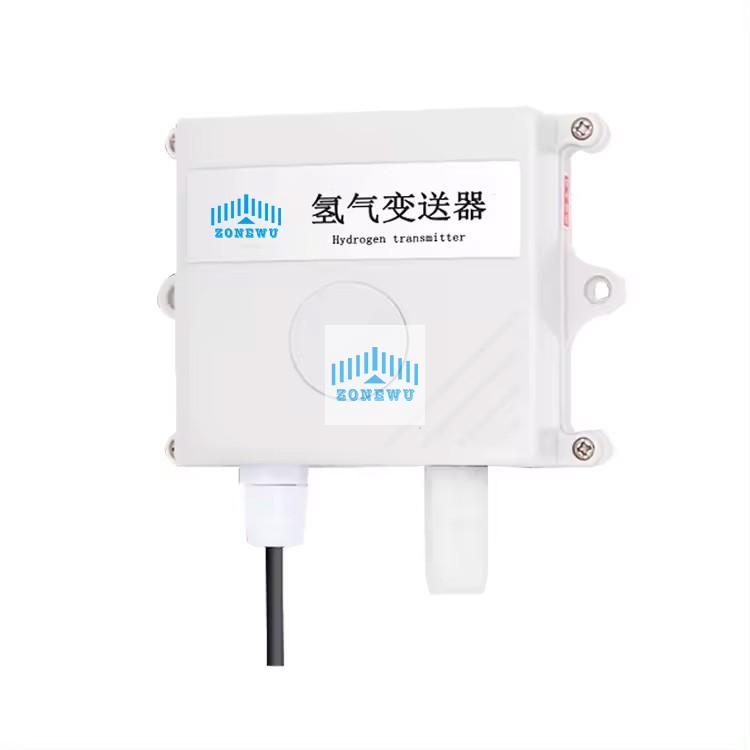

Hydrogen transmitter

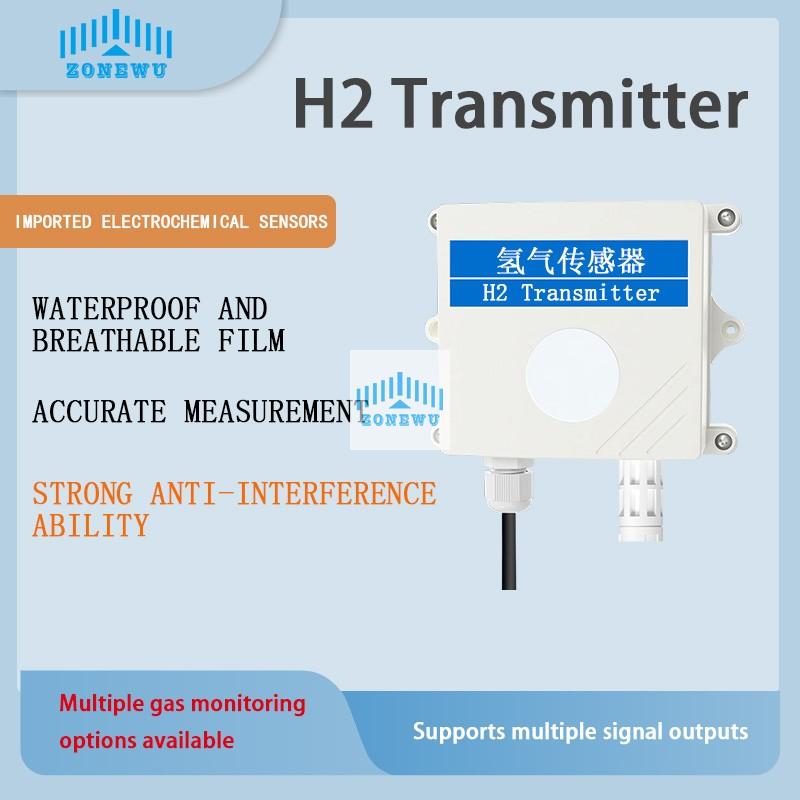

Adopting imported top brand electrochemical sensors, stable and durable;

Multiple measurement range options, 0~1000ppm, 0~40000ppm;

High measurement accuracy, up to ± 5% FS, and repeatability up to ± 2%;

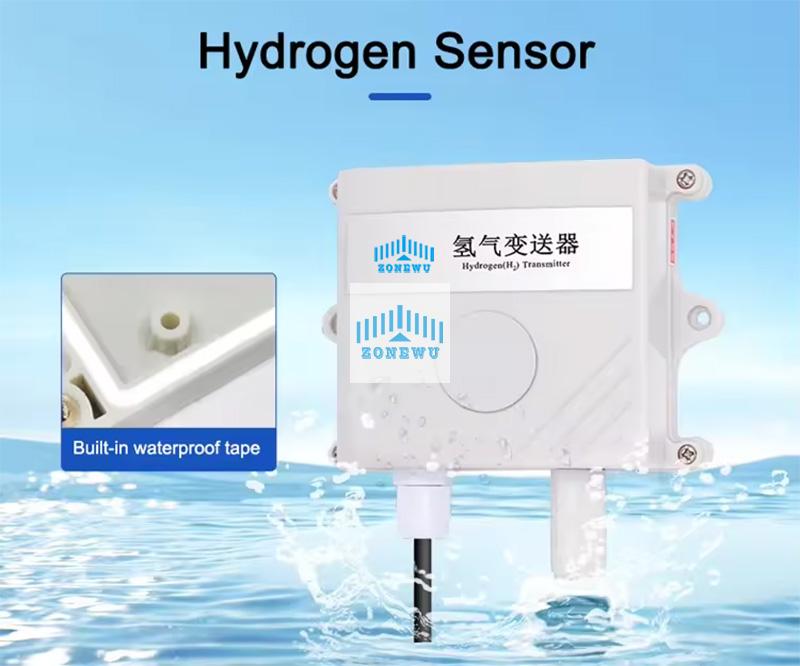

Adopting a wall mounted waterproof shell, it is easy to install and has a high level of protection, which can be applied to harsh on-site environments.

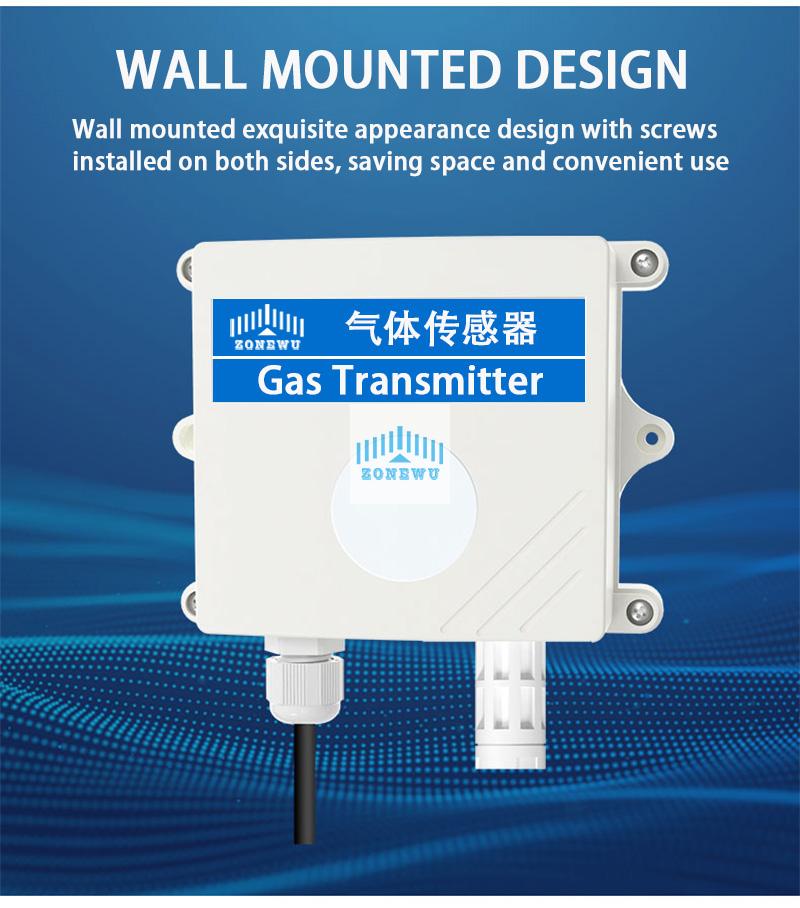

H2 transmitter5.jpg Wall mounted design.jpg H2 transmitter6.jpg Wall mounted installation.jpg

Specifications

Attribute
Customized support	OEM, ODM, OBM
Name	H2 Gas Detector RS485 4-20mA Electrochemical Hydrogen Sensors
Detecting Gas	CH4

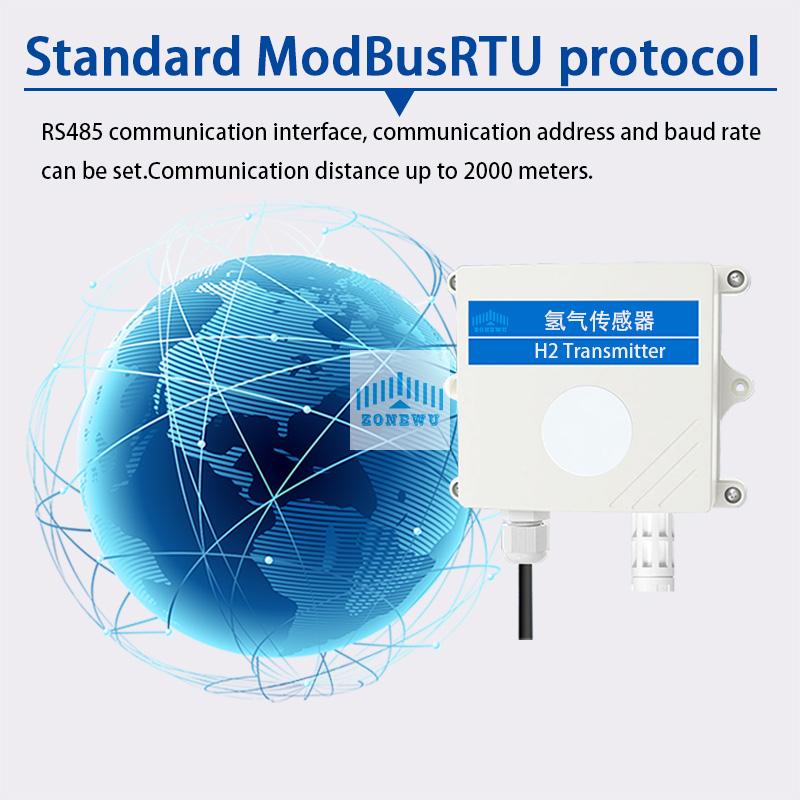

Output signal	4-20mA/0-5V/0-10V/RS485
Working temperature	-20~+50 ℃, 0-90% RH (no condensation)
Response time	1000ppm：≤70S 40000ppm：≤60S
Application	Hydrogen gas detection
H2 Measurement
Range	0~1000ppm / 0~40000ppm
Repeatability	1ppm
Detection accuracy	±5%FS
Physical Characteristics
Power Supply	10-30VDC
Material	ABS Plastic

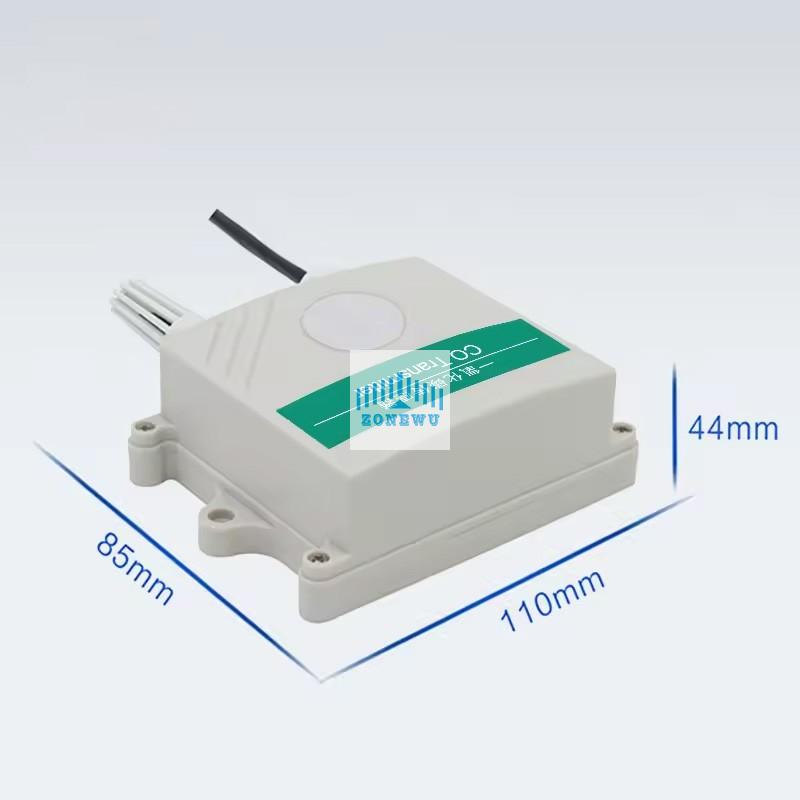

Physical dimensions	110x85x44mm

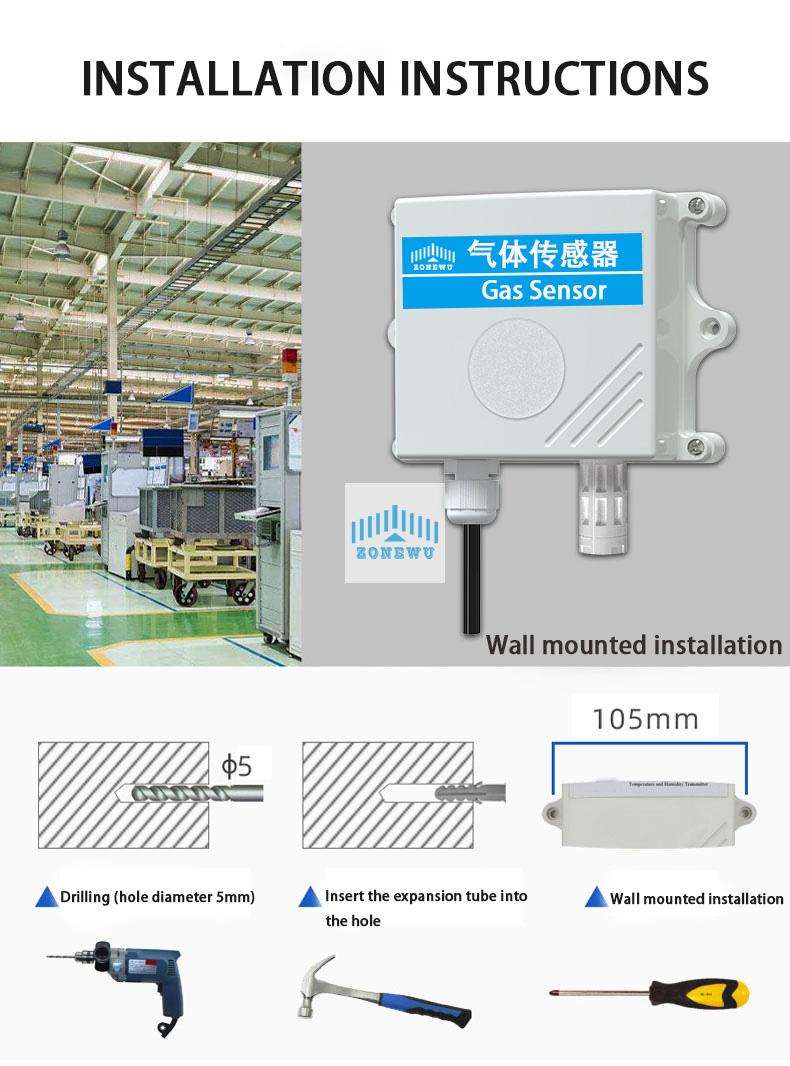

Installation	Wall mounted installation
