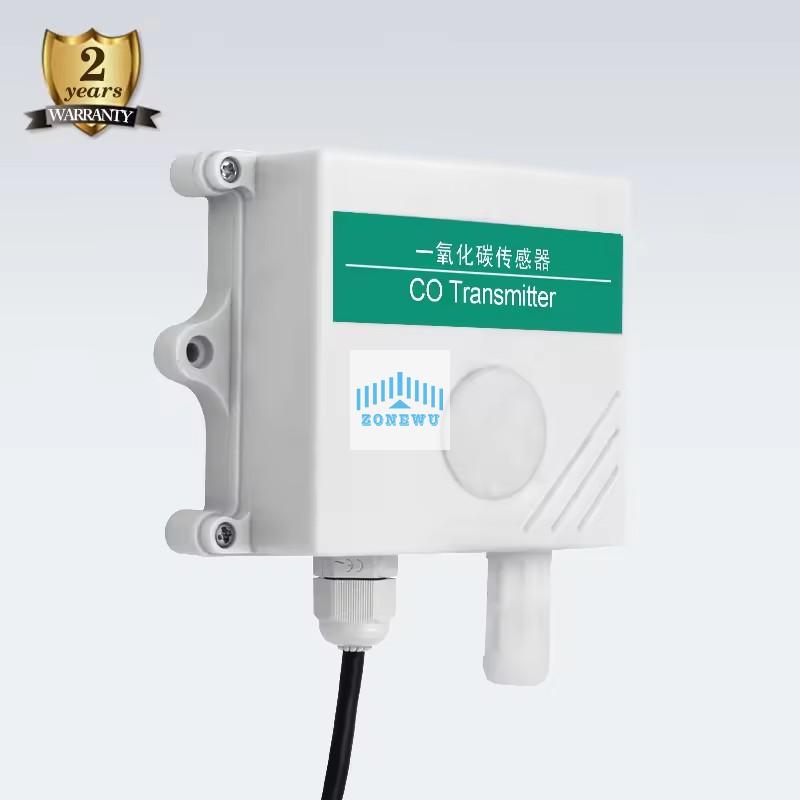

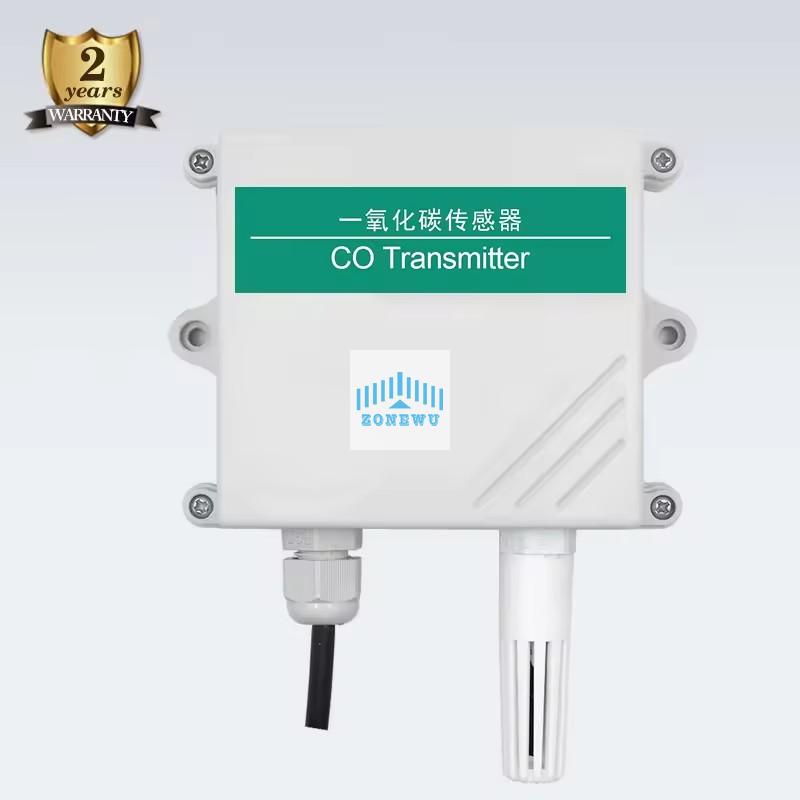

CO Sensor

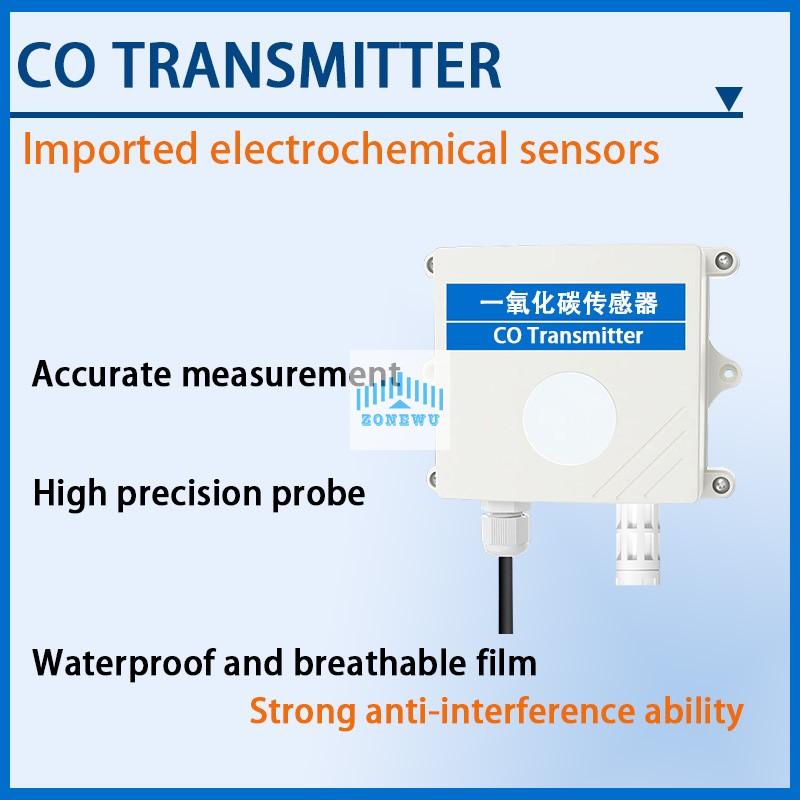

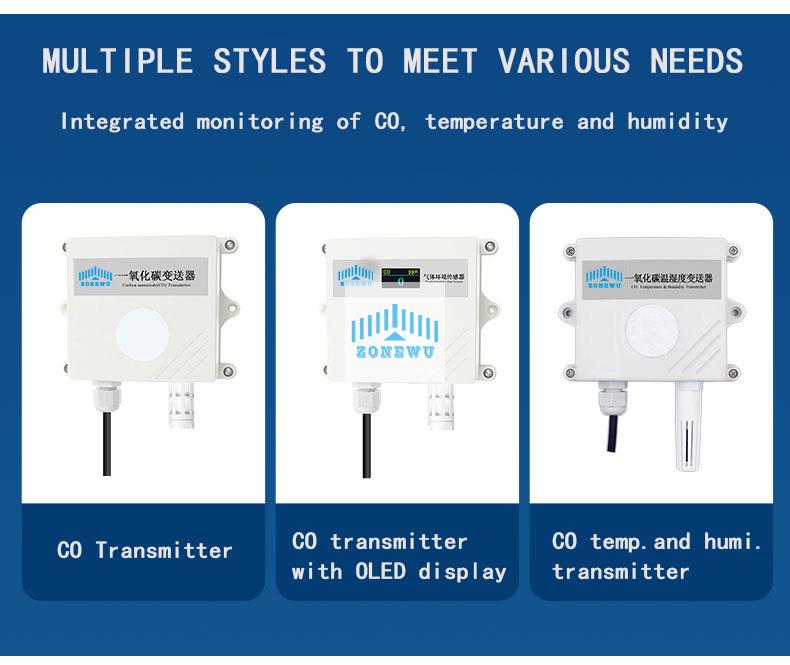

The carbon monoxide transmitter uses electrochemical technology to measure the concentration of carbon monoxide, which responds quickly and sensitively. This transmitter is widely used in air quality detection, smart homes, and other occasions that require carbon monoxide and temperature and humidity detection.

CO sensor1.jpg

Specifications

Attribute
Customized support	OEM, ODM, OBM
Name	RS485 4 to20 ma gas detector co sensor 0-10v carbon monoxide sensor
Detecting Gas	CO
Output signal	4-20mA/0-5V/0-10V/RS485
Working temperature	-20~+50 ℃, 15-90% RH (no condensation)
Response time	≤90s
Application	Environmental Monitoring
CO Measurement
Range	0~1000ppm、0~2000ppm (optional)
CO resolution	1ppm
CO accuracy	± 5ppm or ± 10%
Physical Characteristics
Power Supply	10-30VDC
Material	ABS Plastic

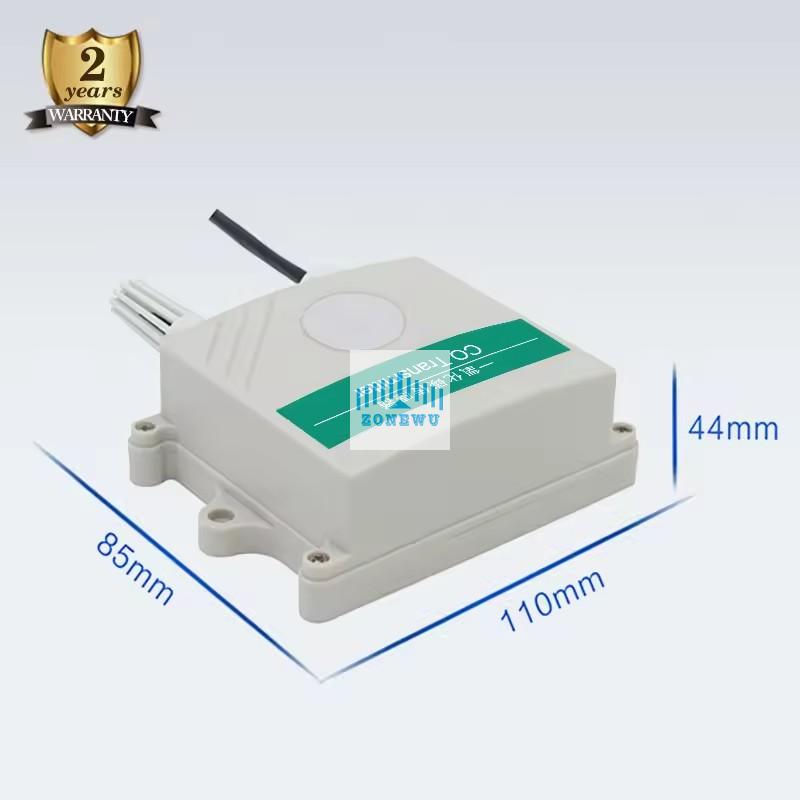

Physical dimensions	110x85x44mm
Installation	Wall mounted installation
