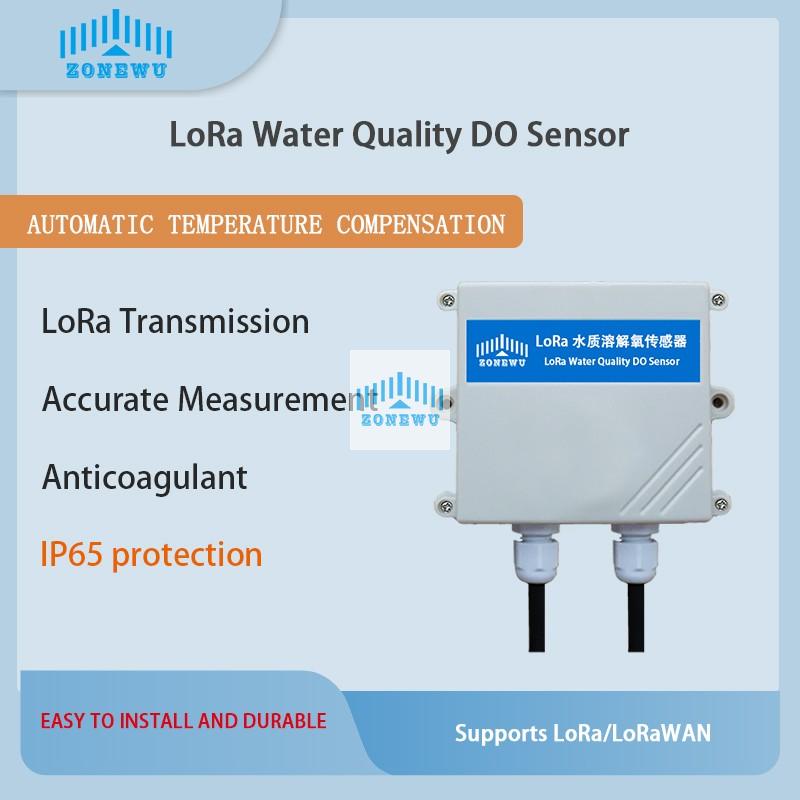

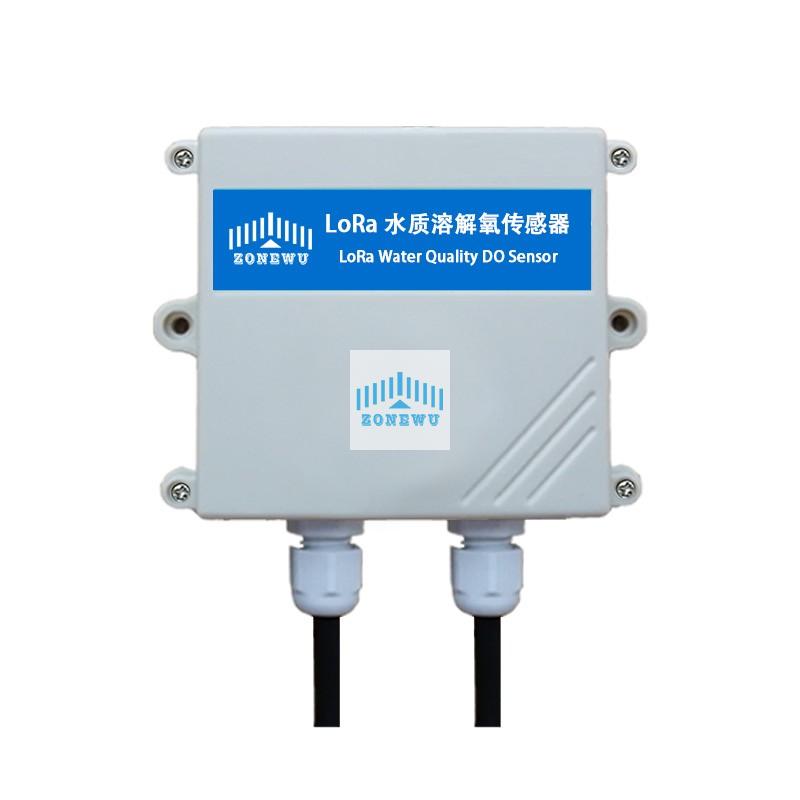

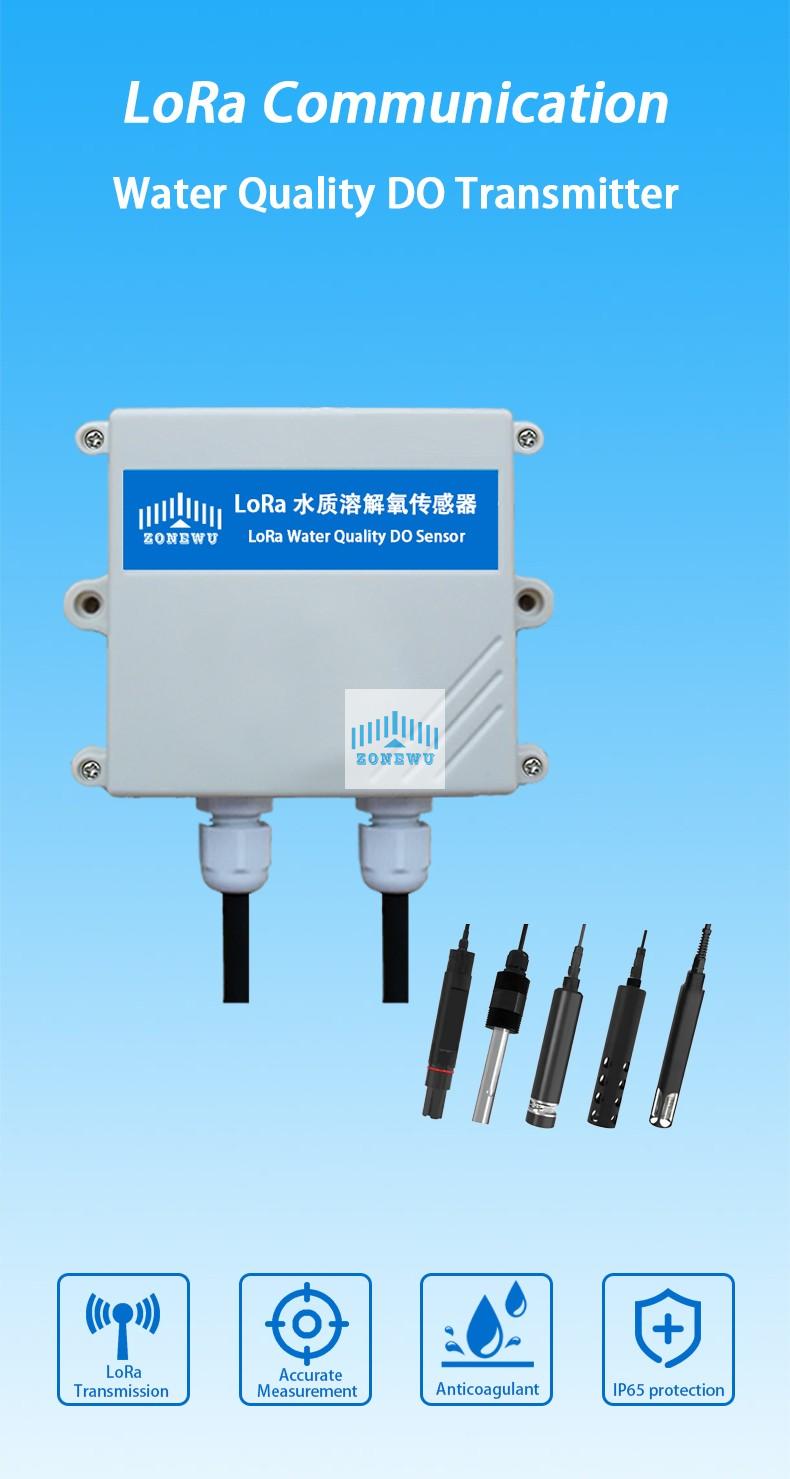

LoRaWAN water quality DO sensor

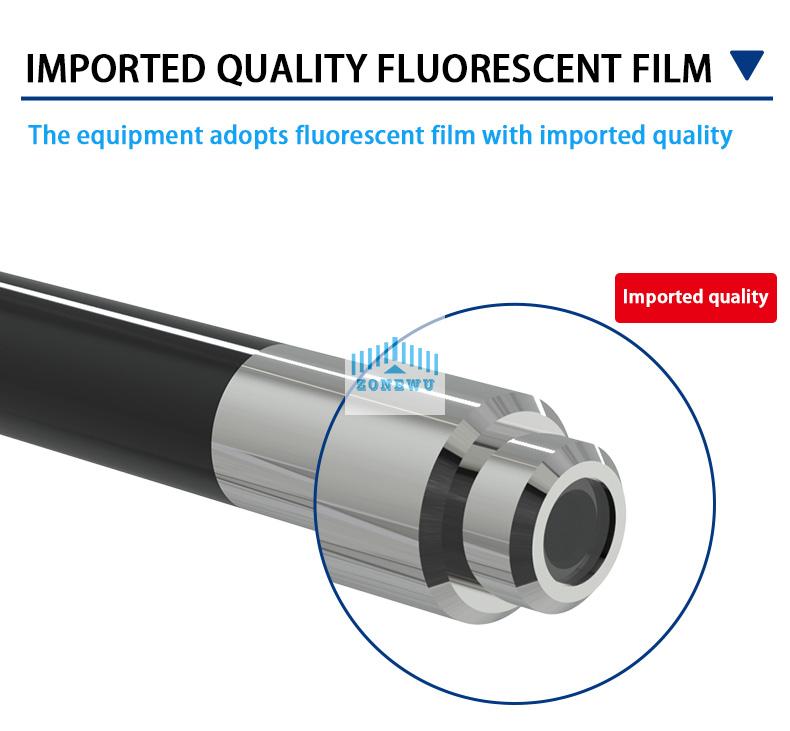

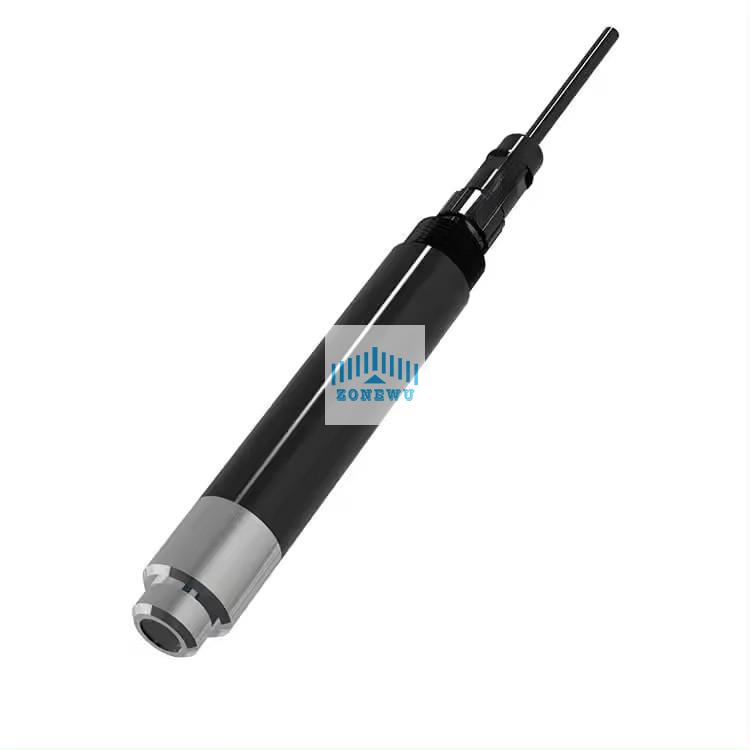

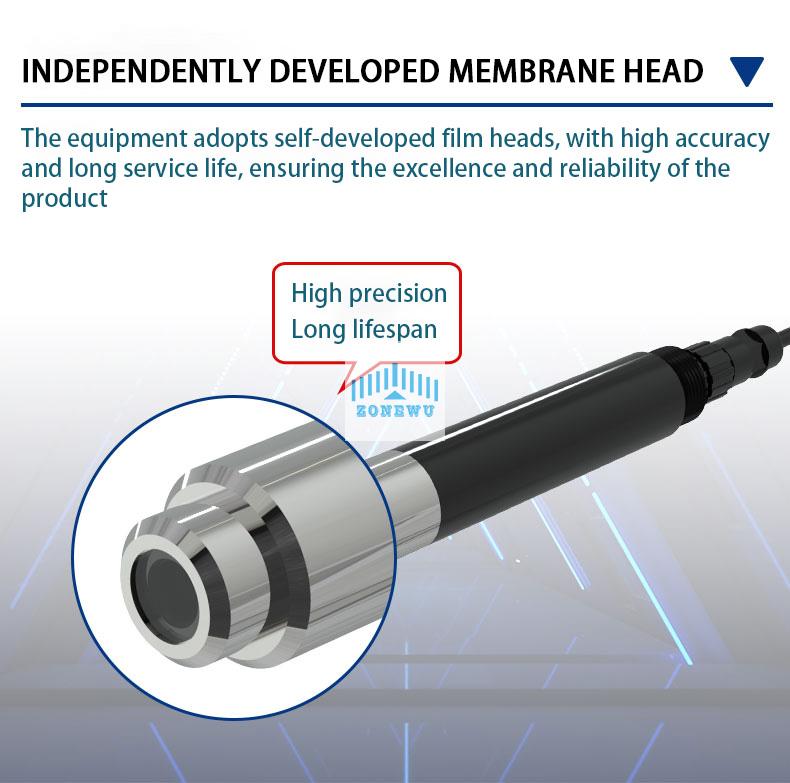

The LoRa water quality DO sensor is a device that uses fluorescence measurement principles to measure the concentration of dissolved oxygen in a solution. It does not consume oxygen and does not require electrolytes. Built in temperature transmitter with automatic temperature compensation function. The calibration function provides a simpler and more convenient calibration method. The use of imported high-quality fluorescent films can be widely applied in industries such as water treatment, aquaculture, and environmental monitoring. Supports LoRa TDMA networking and standard LoRaWAN protocol.

Specifications






Attribute


Customized support

OEM, ODM, OBM


Name

Industrial LoRa water quality dissolved oxygen sensor


Description

water quality sensor


Communication Protocol

LoRaWAN,LoRa TDMA Networking


Frequency

CN470/IN865/EU868/RU864/US915/AU915/

KR920/AS923-1&2&3&4


Tx Power

20dBm (915) / 16dBm (868) / 17dBm (470)


Mode

OTAA/ABP Class A


Sensor parameters


Measuring range

0-20mg/L (0-200% saturation)


Resolution

0.01mg/L0.1%0.1


Accuracy

±3%FS±0.5℃(25℃)


Physical Characteristics


Power Supply

12/24VDC


Operating Temperature

-30°C to 70°C


Dimensions

90x85x40  mm

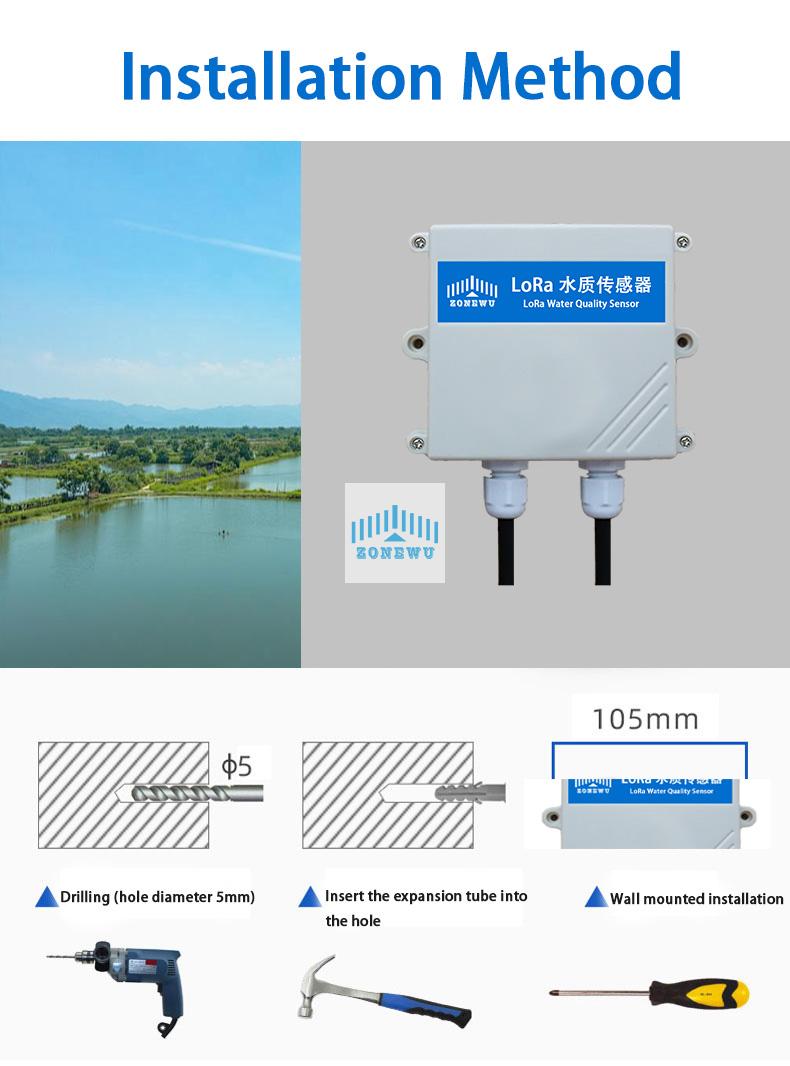

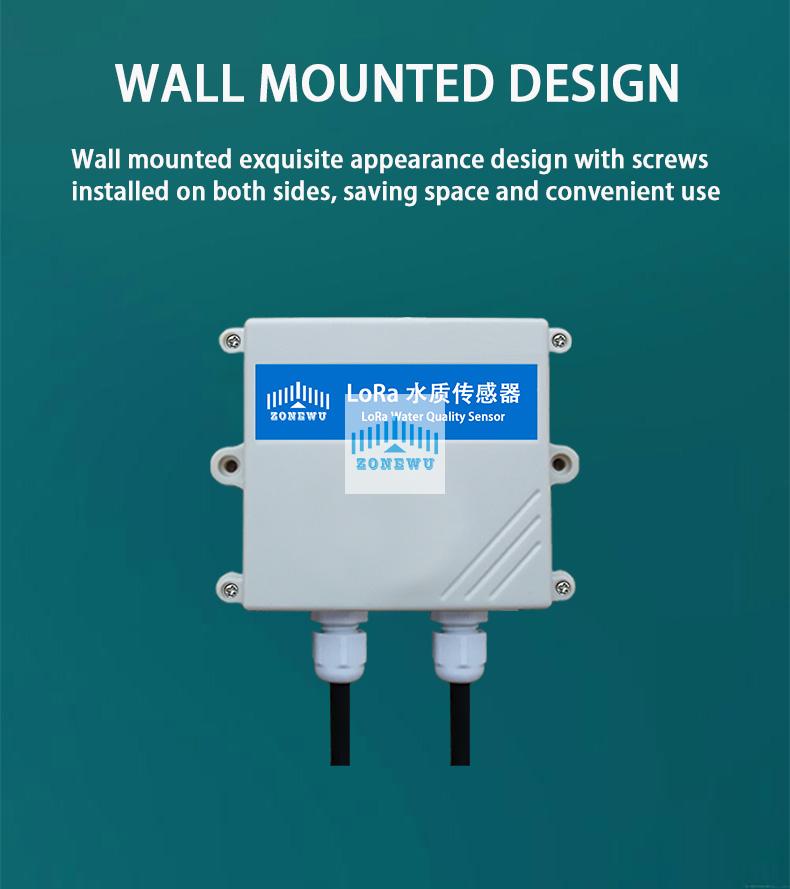

Installation

Wall Mounting
