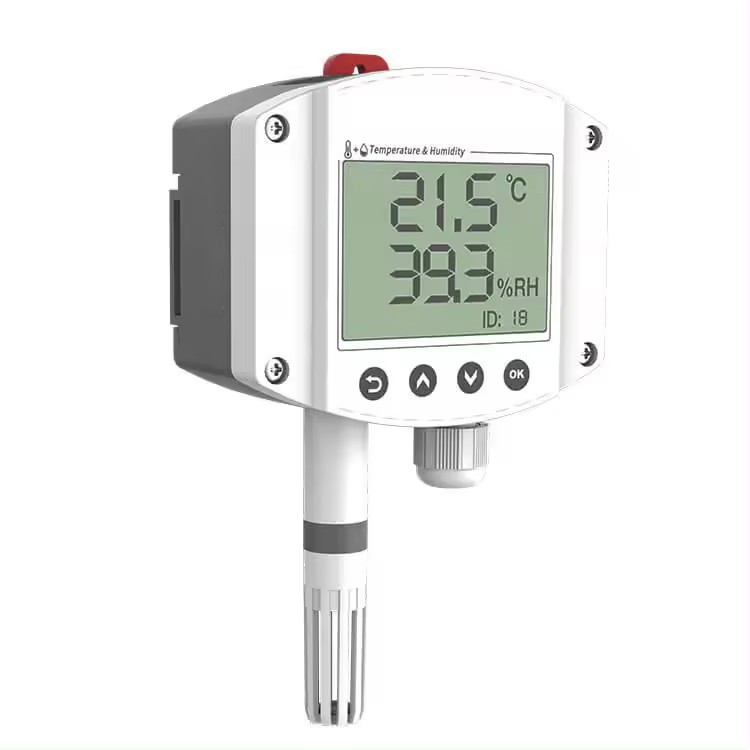

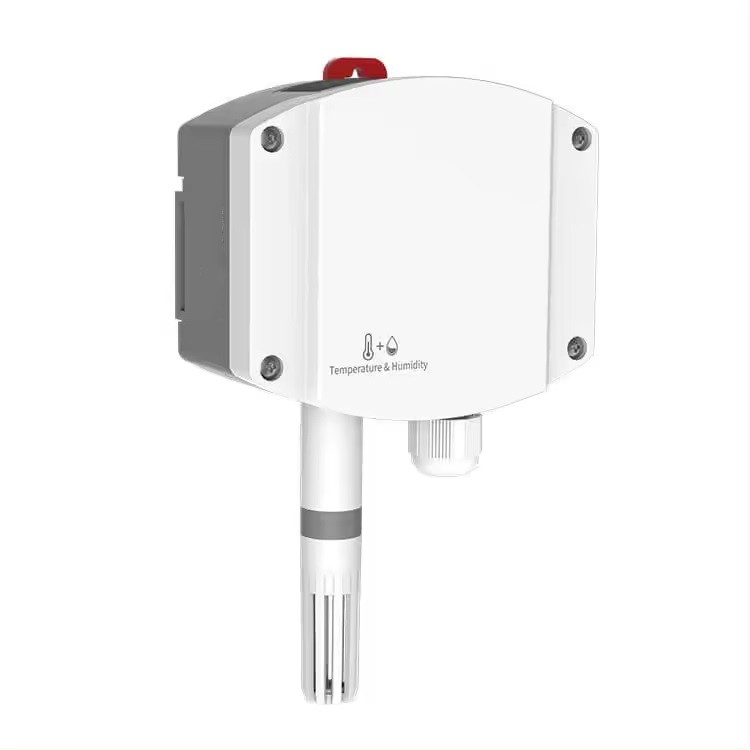

This product is an industrial wall mounted high protection shell. The circuit adopts industrial grade microprocessor chips imported from the United States and high-precision temperature and humidity sensors imported, ensuring excellent reliability, high precision, and interchangeability of the product. The output signal type is RS485, with a maximum communication distance of 2000 meters. It uses the standard ModBus protocol and supports secondary development. The shell is equipped with an LCD display screen, which is beautiful and elegant.
Attribute | |
Customized support | OEM, ODM, OBM |
Name | Waterproof High Air Temperature And Humidity Sensor |
Keywords | Temperature and Humidity Probe Sensor |

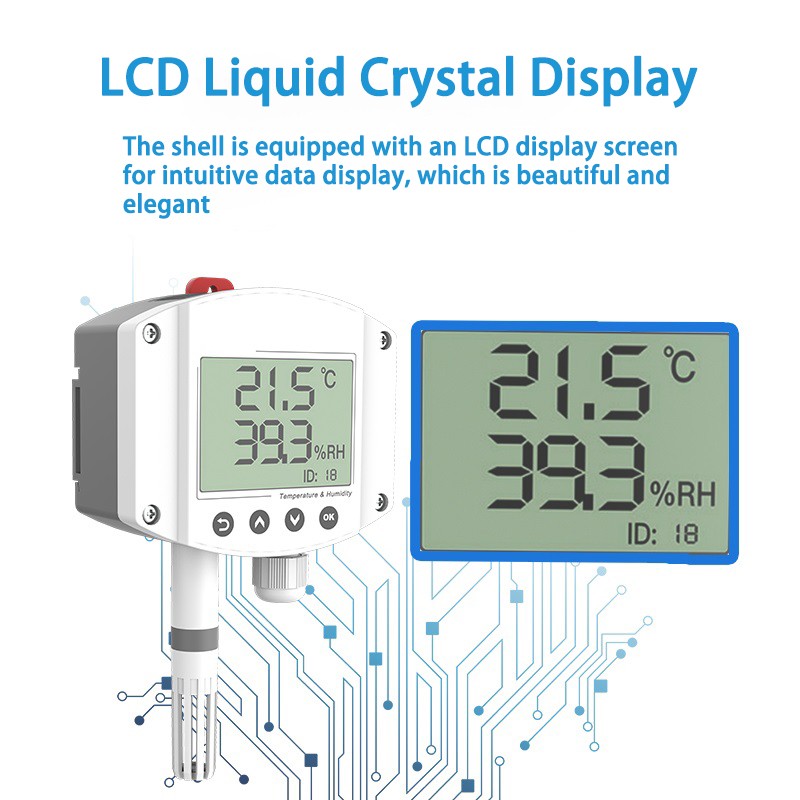

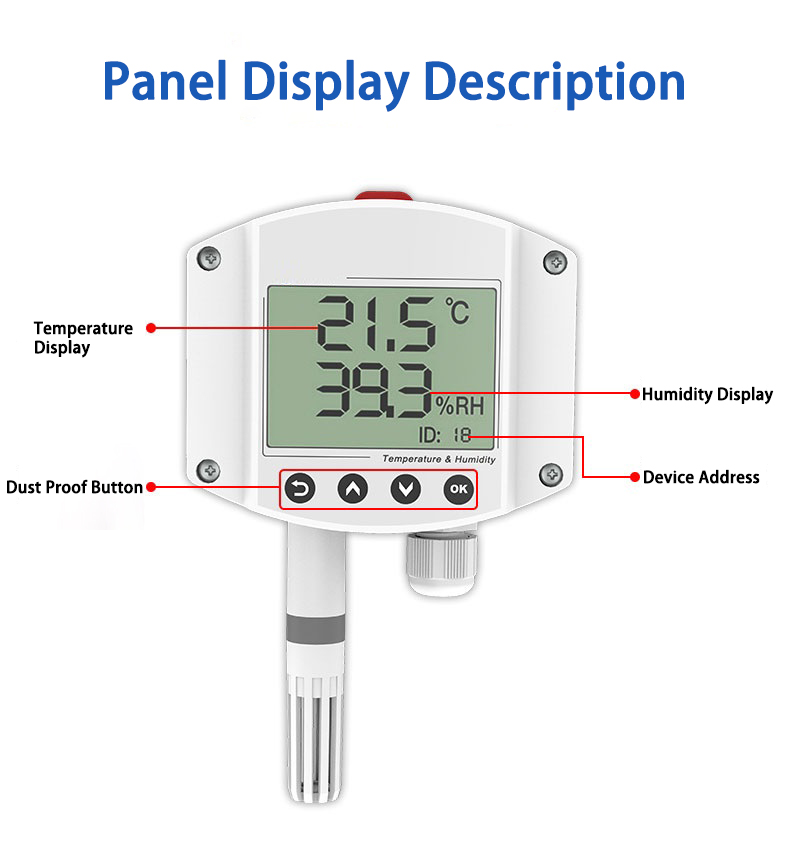

Display | LCD Screen |
Output signal | RS485 |
Application | Industrial Temperature Measuring |
Response time | 1s |
Temperature Measurement | |
Range | -40°C to + 80°C |
Accuracy | ± 0.4°C |
Humidity Measurement | |
Range | 0% to 100% RH |
Accuracy | ± 2% |
Physical Characteristics | |
Power Supply | 10-30VDC |
Dimensions | 147x88x41 mm |
Material | ABS Plastic |

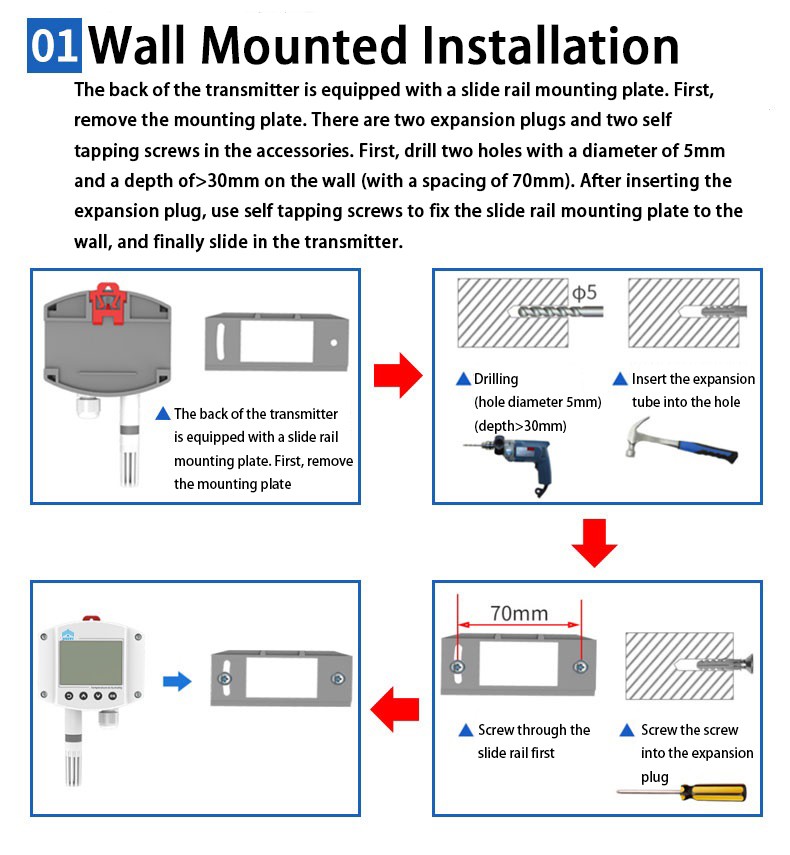

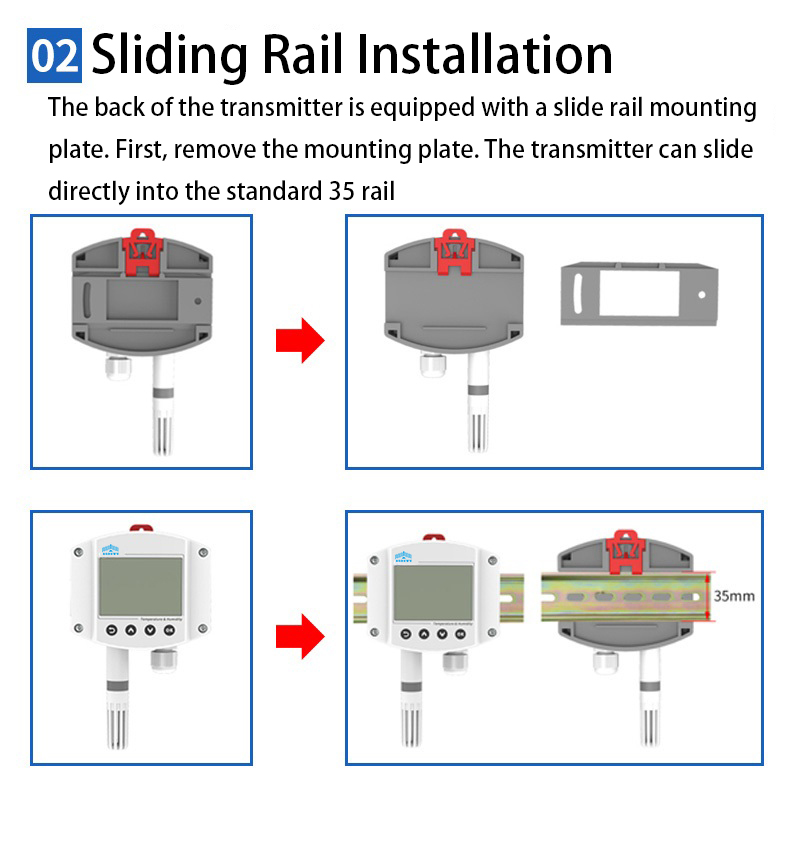

Installation | Wall Mounting |
