The industrial grade Ethernet type temperature and humidity transmitter uploads the collected temperature and humidity data to the server through Ethernet, supports communication within the local area network, cross gateway wide area network communication, and supports dynamic domain name resolution DNS. The product adopts a large LCD display, with dual control of temperature and humidity upper and lower limits, free setting of limit values, temperature and humidity calibration based on password, network port data transmission and other functions. The internal integrated alarm function module (buzzer or relay) can achieve high and low temperature alarms and high and low humidity alarms.
Attribute | |
Customized support | OEM, ODM, OBM |
Name | Indoor LCD display smart temperature and humidity sensor |
Keywords | Temperature and Humidity Probe Sensor |
Display | LCD Screen |
Alarm | Built in buzzer, external sound and light alarm, optional relay |
Storage mode | Automatic loop storage |
Storage capacity | 65535 articles |
Output signal | Ethernet(TCP/IP) |
Temperature Measurement | |
Range | -40°C to + 80°C |
Accuracy | ± 0.5°C |
Humidity Measurement | |
Range | 0% to 100% RH |
Accuracy | ± 3% |
Physical Characteristics | |
Power Supply | 10-30VDC |

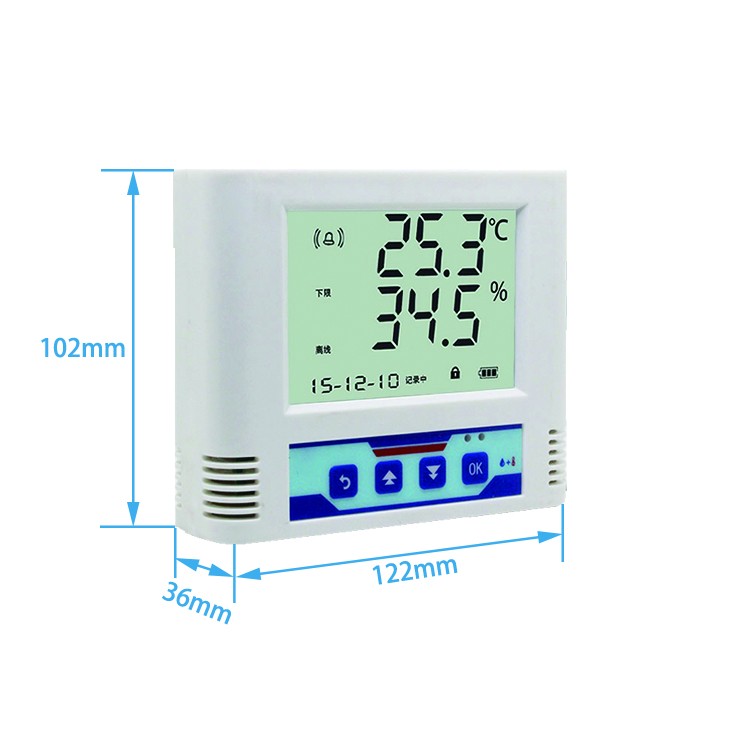

Dimensions | 122x102x36 mm |
Installation | Wall Mounting |
