Ethernet type temperature and humidity transmitter (ModBus TCP)

Ethernet type temperature and humidity transmitter (ModBus TCP)

The industrial grade Ethernet type temperature and humidity transmitter can collect temperature and humidity data and upload it to the server through ModBus TCP mode. This series of products fully utilizes the already installed Ethernet communication network to achieve long-distance data collection and transmission, achieving centralized monitoring of temperature and humidity data. It can greatly reduce construction volume, improve construction efficiency and maintenance costs.

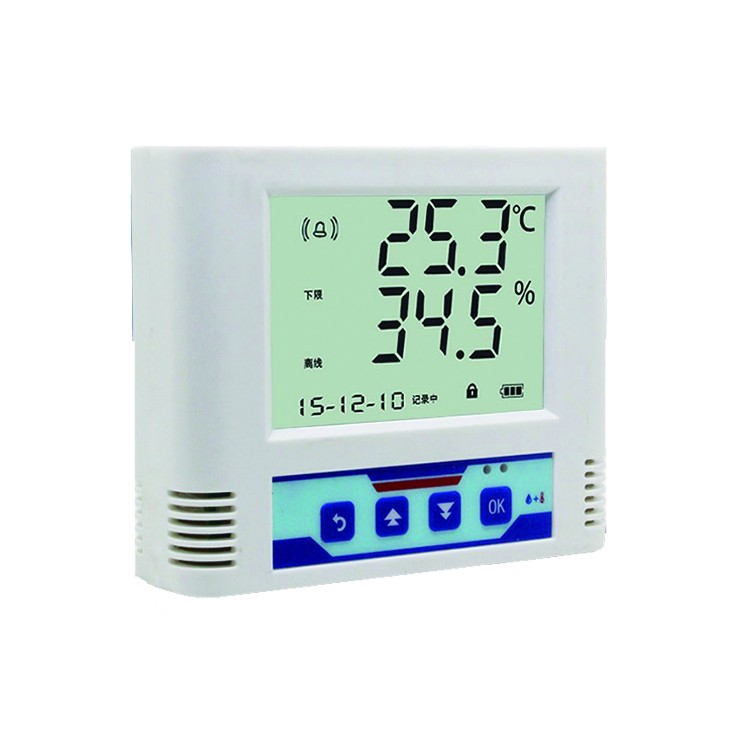

Ethernet type <a href=https://www.zonewu.com/en/product/RS100.html target='_blank'>Temperature and Humidity Transmitter</a> TCP-1.jpg

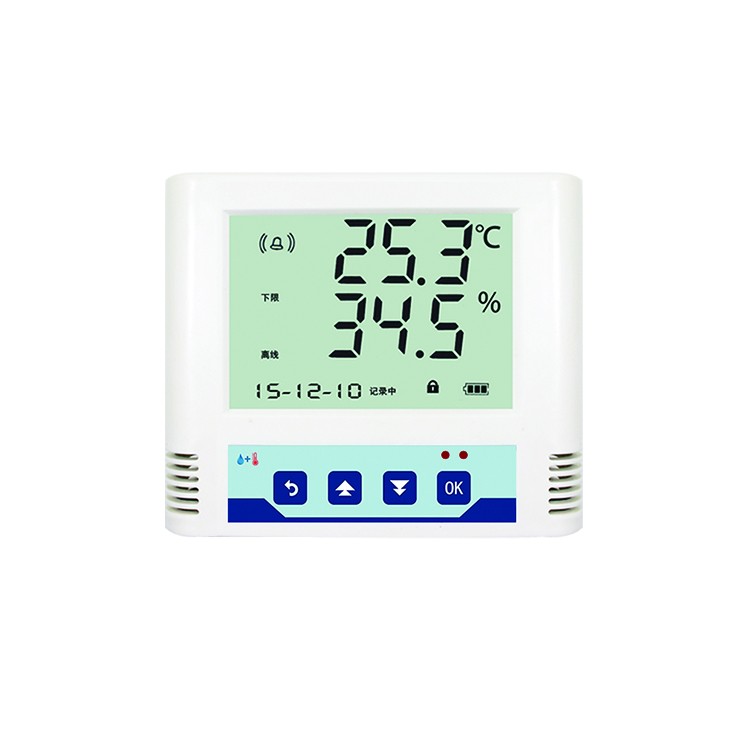

Ethernet type temperature and humidity transmitter TCP-2.jpg

Ethernet type temperature and humidity transmitter TCP-4.jpg

Ethernet type temperature and humidity transmitter TCP-3.jpg

Specifications

Attribute
Customized support	OEM, ODM, OBM
Name	Indoor LCD display smart temperature and humidity sensor
Keywords	Temperature and Humidity Probe Sensor
Display	LCD Screen
Alarm	Built in buzzer, external sound and light alarm, optional relay
Storage mode	Automatic loop storage
Storage capacity	65535 articles
Output signal	Ethernet（ModBus-TCP）
Temperature Measurement
Range	-40°C to + 80°C
Accuracy	± 0.5°C
Humidity Measurement
Range	0% to 100% RH
Accuracy	± 3%
Physical Characteristics
Power Supply	10-30VDC

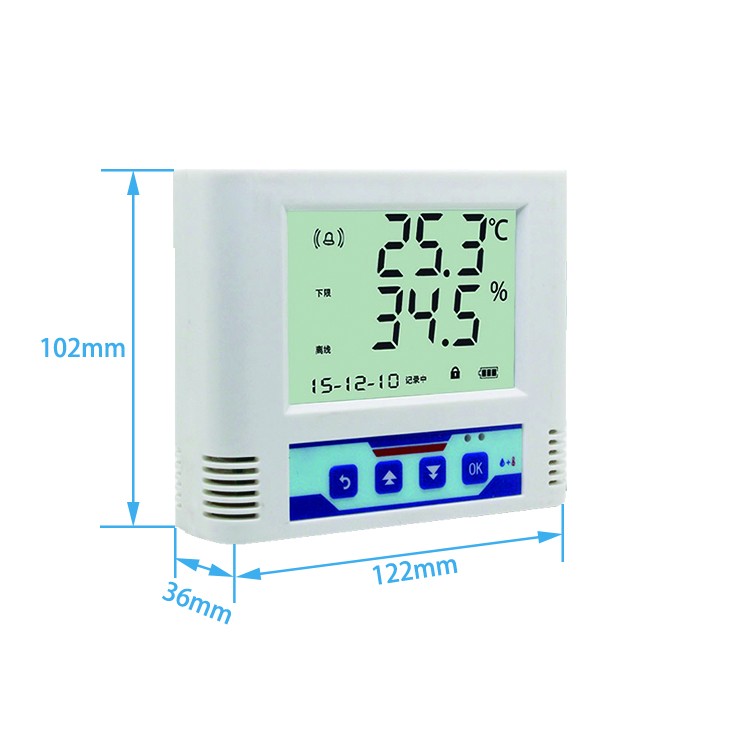

Dimensions	122x102x36 mm
Installation	Wall Mounting
