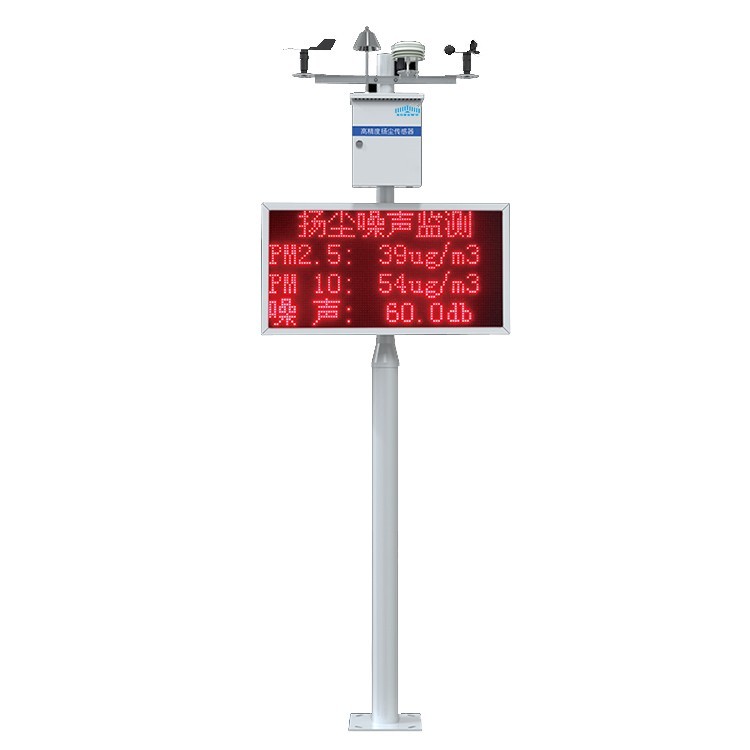

Online Monitoring System for Noise and Dust

●Support 1x shutter box (temperature, humidity, noise, air pressure) acquisition.
●Support 1x wind speed acquisition, 1x wind direction acquisition, and 1x relay output (default can be connected to on-site secondary relay control fog cannon).
●Upload data to the monitoring software platform through 4G mode, and be able to connect to an external LED screen (54cm * 102cm) to display the current numerical information in real-time.

Specifications

Power Supply	AC220V
Communication Interface	GPRS wireless transmission (4G optional)
Air temperature sensor	Range: -40~+80 ℃ Resolution: 0.1 ℃
Air temperature sensor	Accuracy: ± 0.5 ℃ (25 ℃)
Air humidity sensor	Range: 0-100% RH Resolution: 0.1%
Air humidity sensor	Accuracy: ± 3% RH (60% RH, 25 ℃)
Atmospheric Pressure Sensor	Range:0～120kPa Resolution：0.1kPa
Atmospheric Pressure Sensor	Accuracy：±0.15kPa@25℃ 101kPa
Wind speed Sensor	Range：0～60m/s Resolution：0.1 m/s
Wind speed Sensor	Accuracy：±0.3m/s
Wind direction Sensor	Range：8 directions
Noise Sensor	Accuracy：30～130dB Resolution：0.1dB
Noise Sensor	Accuracy: ± 0.5dB (at reference pitch, 94dB@1kHz ）
PM	Range：0～1000μg/m³ Resolution：1μg/m³
PM	Particle counting efficiency: 50%@0.3μm，98%@≥0.5μm。 PM2.5 Accuracy： ±3%FS（@100μg/m³、25℃、50%RH）
LED Screen	Size 54cm * 102cm
Relay	1 or 2 channels, connected to a secondary relay, capable of controlling on-site fog gun firing
Equipment Bracket	2/3m upright pole (optional)
Sampling method	Pump suction type
