The working principle of LoRA to 4G conversion

what is LoRa

 LoRa is low power LAN wireless standard, low power consumption is generally difficult to cover distance, remote general power consumption is high, the name of LoRa is remote radio (Long Range Radio), its biggest characteristic is in the same power conditions than other wireless transmission distance farther, realize the unity of low power consumption and distance, it under the same power consumption than the traditional radio frequency communication distance of 3-5 times.

 LoRa gateway is a gateway device for remote data transmission using LoRa wireless modulation technology. The LoRa gateway is located at the core of the LoRa star network, which is an information bridge between the terminal and the server, and is a multi-channel receiver. The LoRa gateway is sometimes called a LoRa base station or a LoRa concentrator. The definitions are different, but the meaning is the same.

The LoRa gateway uses different frequency expansion factors and different frequency expansion factors, and therefore can theoretically demodulate multiple frequency extension factors in the same channel. Gateways and network servers are connected via a standard IP, and terminals communicate with one or more gateways via a single hop. All terminals adopt two-way communication and support remote software upgrade.

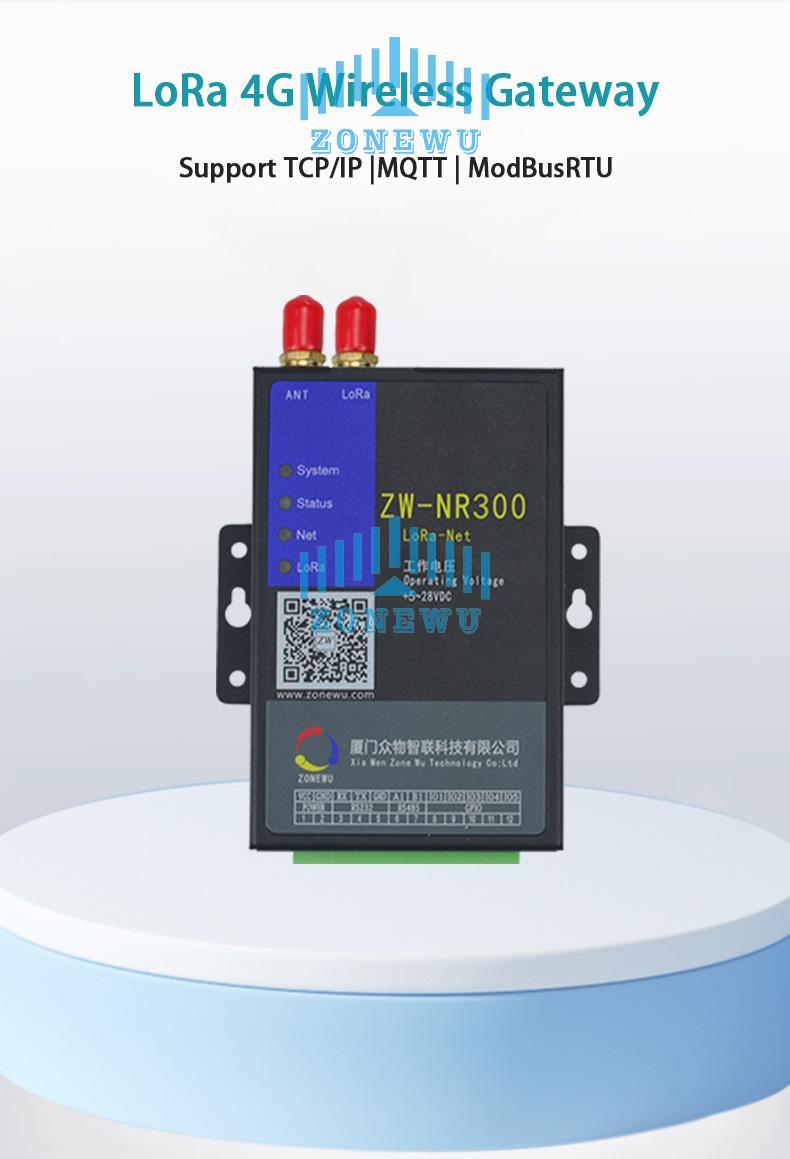

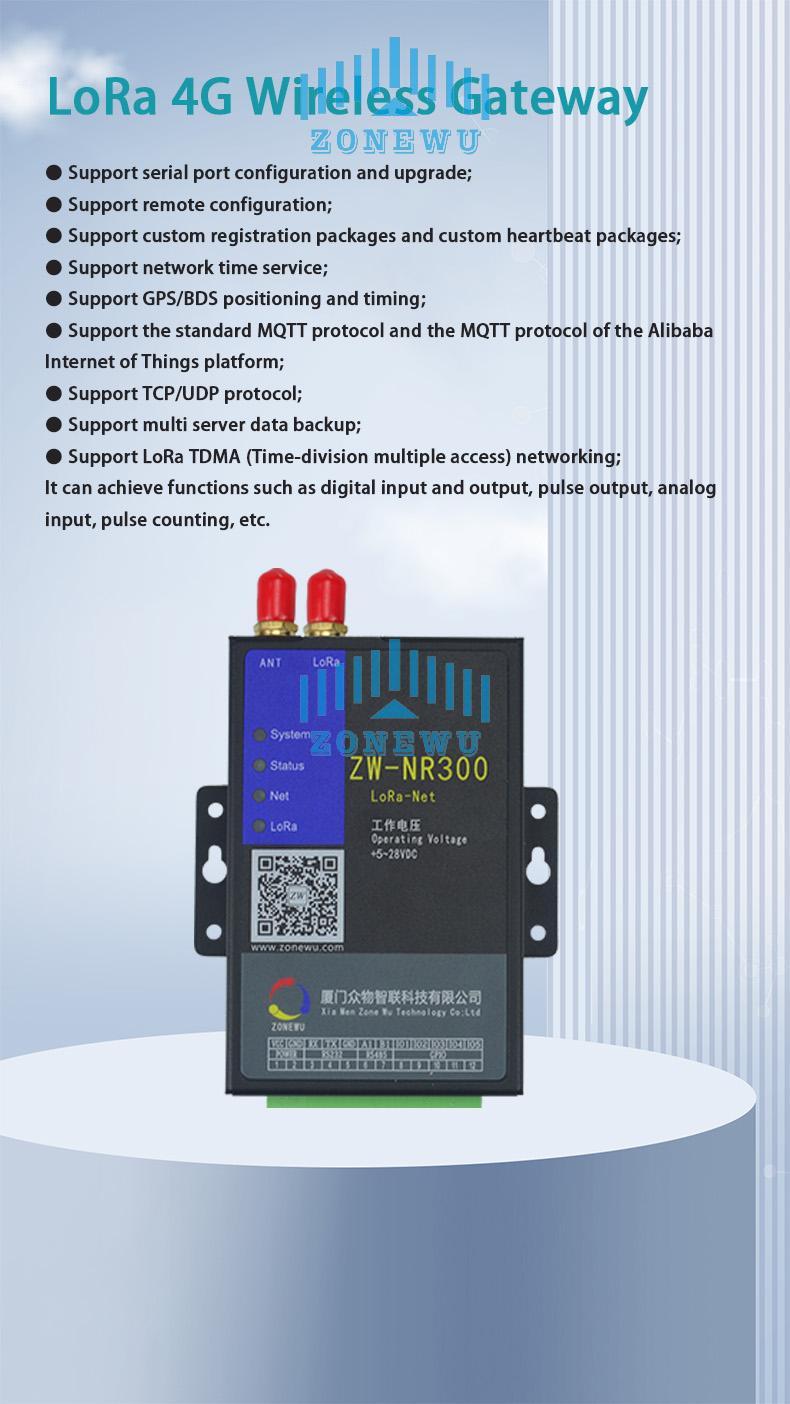

 Principle and use of LoRa to 4G gateway

LoRa gateway uses Lora RF communication technology to transmit the data of multiple points to the gateway, and Lora gateway is transmitted to the server through Ethernet or 4G network, so as to realize remote data collection and monitoring. The Lora gateway supports up to 100 wireless temperature and humidity acquisition nodes, and the simultaneous monitoring of multiple serial port devices, with a monitoring range radius of up to 3 Km. Support cloud platform, can realize history query.
