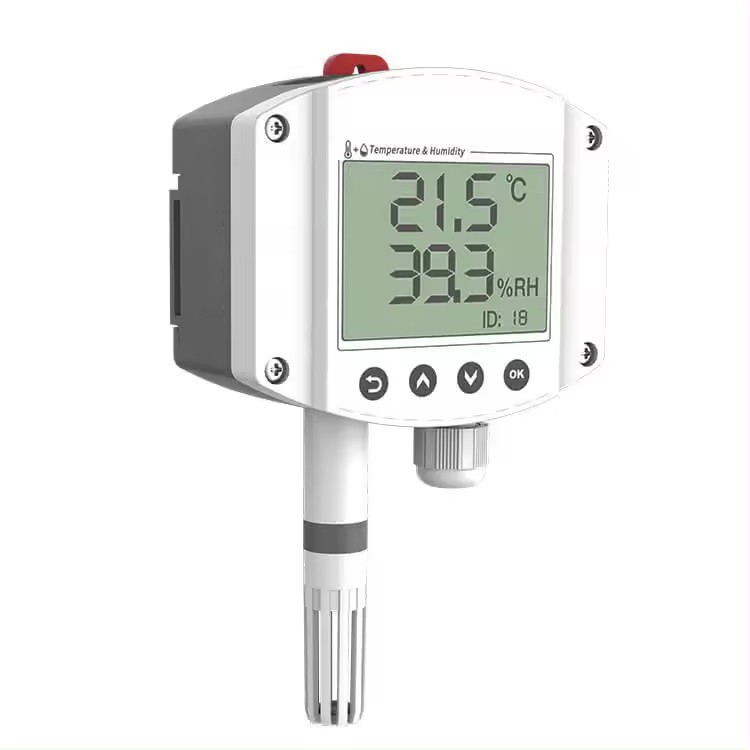

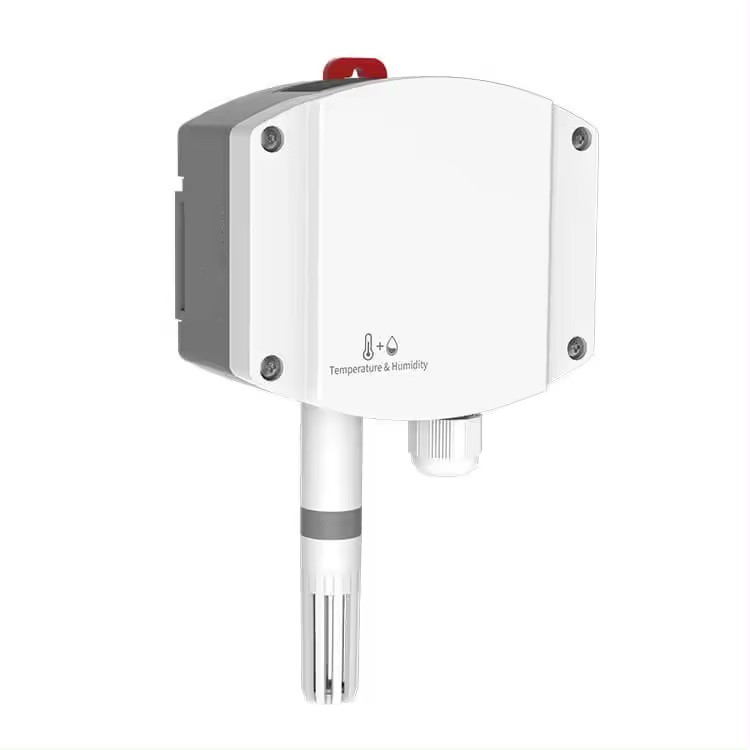

Industrial grade LCD display temperature and humidity transmitter (Analog type)

The transmitter is an industrial wall mounted high protection level enclosure. The circuit adopts industrial grade microprocessor chips imported from the United States and high-precision temperature and humidity sensors imported, ensuring excellent reliability, high precision, and interchangeability of the product. Adopting standard industrial interface 4-20mA/0-10V/0-5V analog signal output, it can be connected to on-site digital display meters, PLCs, frequency converters, industrial control hosts and other equipment, safe and reliable, with beautiful appearance and convenient installation.

Specifications






Attribute

Customized support

OEM, ODM, OBM

Name

Waterproof High Air Temperature And Humidity Sensor

Keywords

Temperature and Humidity Probe Sensor

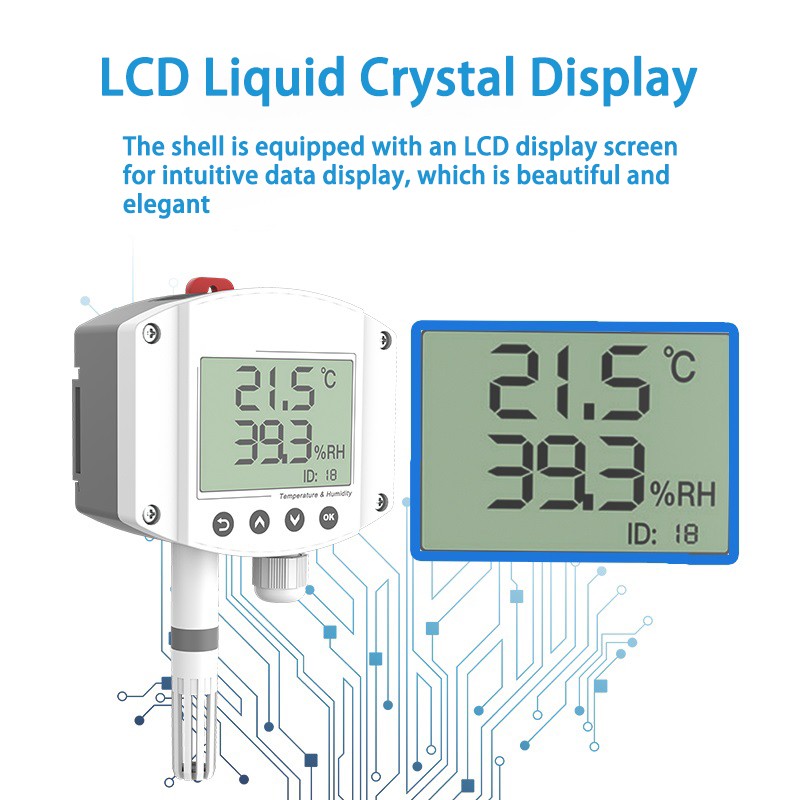

Display

LCD Screen

Output signal

4-20mA/0-5V/0-10V

Application

Industrial Temperature Measuring

Response time

1s

Temperature Measurement

Range

-40°C to + 80°C

Accuracy

± 0.4°C



Humidity Measurement

Range

0% to 100% RH

Accuracy

± 2%



Physical Characteristics

Power Supply

10-30VDC

Dimensions

147x88x41 mm

Material

ABS Plastic

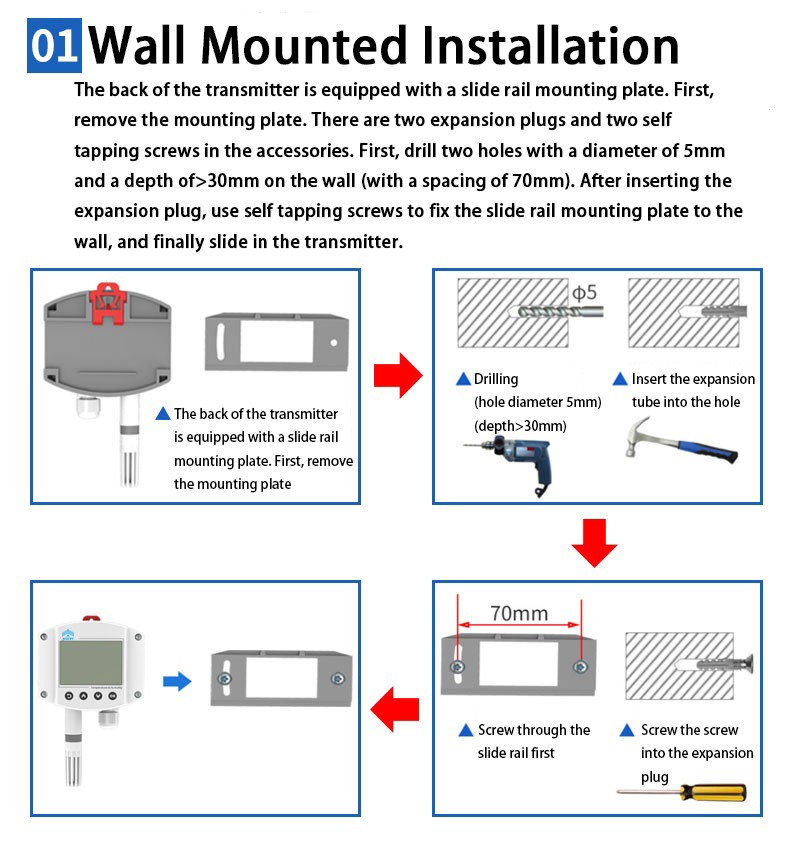

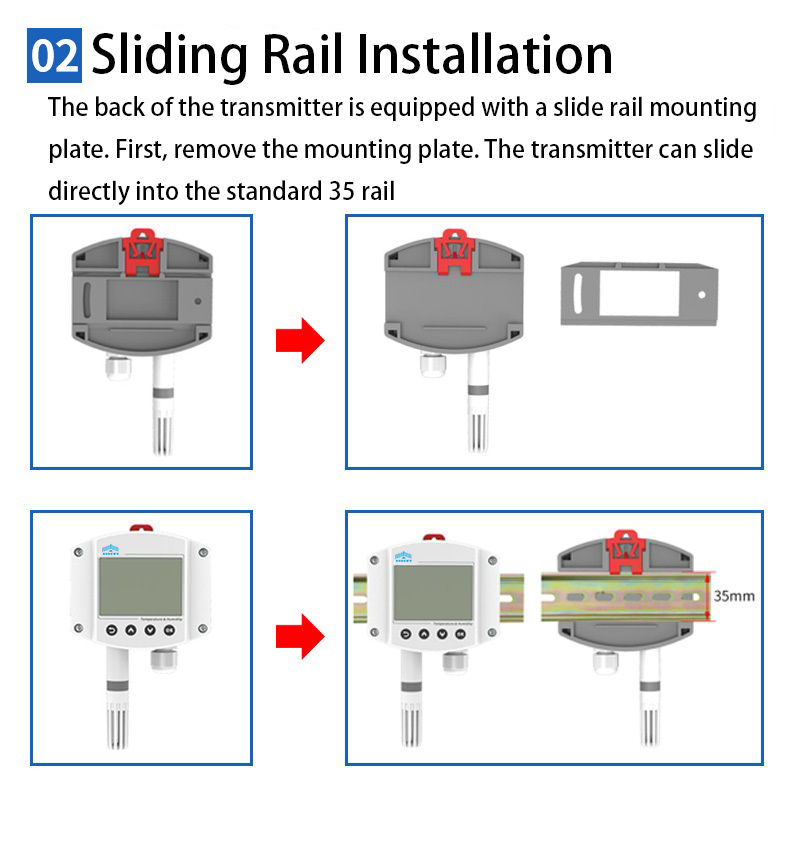

Installation

Wall Mounting
