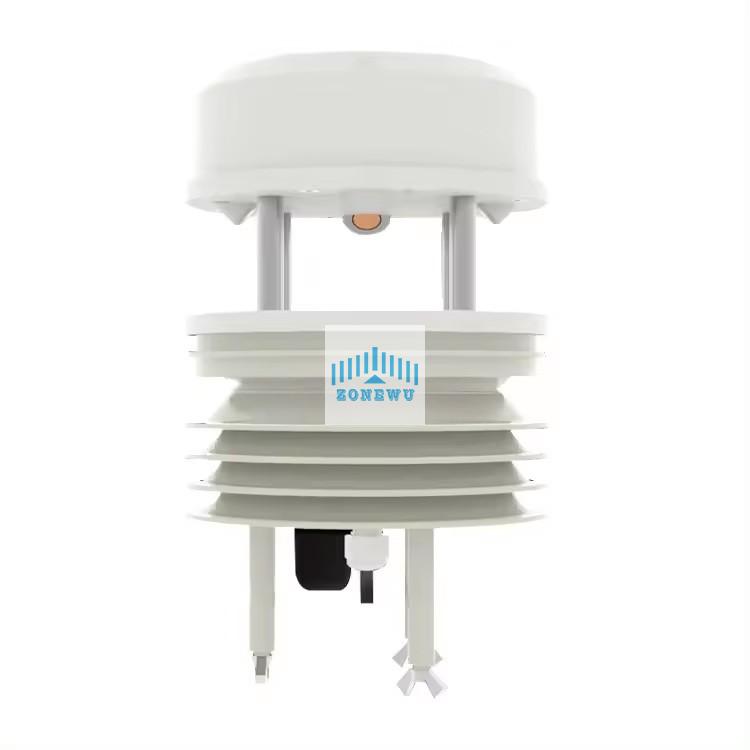

Ultrasonic integrated multi element meteorological transmitter

Ultrasonic integrated multi element meteorological transmitter

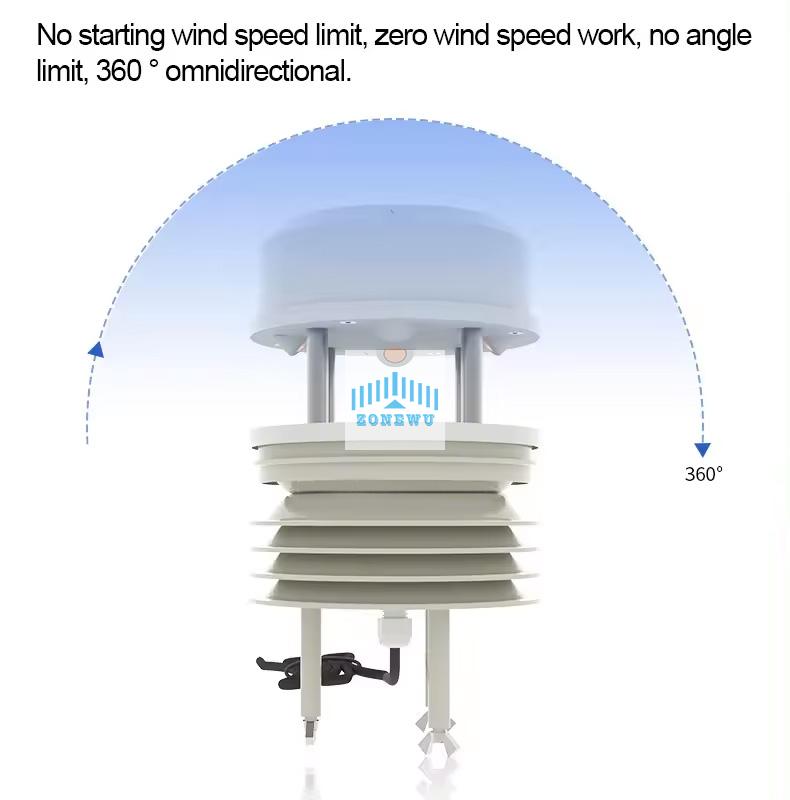

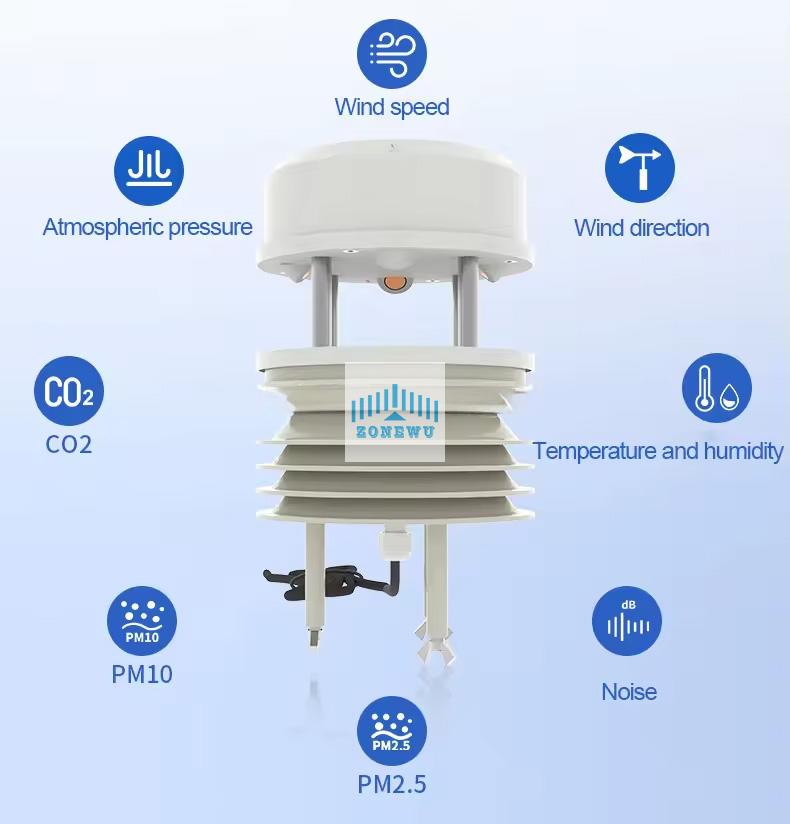

Integrating wind speed, direction, temperature and humidity, noise collection, PM2.5 and PM10, carbon dioxide, and atmospheric pressure; The wind speed and direction are measured using the principle of ultrasonic waves, with no starting wind speed limit, zero wind speed operation, no angle limit, 360 ° omnidirectional, and can simultaneously obtain data on wind speed and direction.

ultrasonic weather station sensor 3.jpg

Specifications

Attribute
Customized support	OEM, ODM, OBM
Name	marine use modbus ultrasonic weather station sensor with wind
Description	modbus weather station
Output signal	RS485
Operation temperature	-40℃~+60℃

	Measuring Range	Accuracy	Response time	Long-term stability
Wind speed	0~60m/s	±(0.2m/s±0.02*v)(60%RH,25℃)	1S	--
Wind direction	0~359°	±3°(60%RH,25℃)	1S	--
Humidity	0%RH~99%RH	±3%RH(60%RH,25℃)	≤1s	≤1%/y
Temperature	-40℃~+80℃	±0.5℃(25℃)	≤1s	≤0.1℃/y
Atmospheric pressure	0-120Kpa	±0.15Kpa@25℃ 101Kpa	≤1s	-0.1Kpa/y
Noise	30dB~120dB	±0.5dB	≤1s	≤3db/y
PM10 PM2.5	0-1000ug/m3	±3%FS(@100μg/m3,25℃,50%RH)	≤90S	≤1%/y
CO2	0-5000ppm	±(50ppm+ 3%F·S) (25℃)	≤90S	≤1%/y
