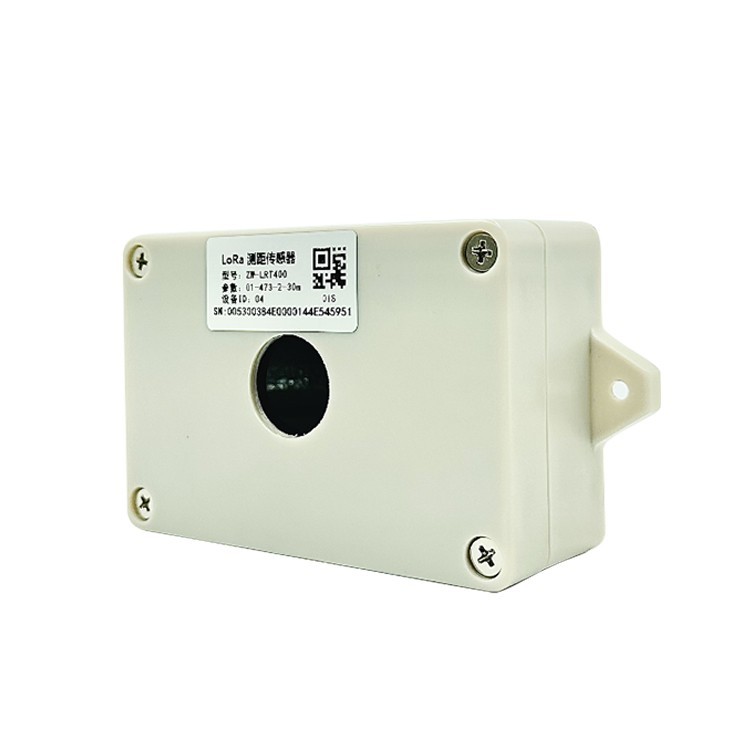

LoRa ToF laser ranging sensor

● The ToF laser ranging sensor adopts ToF (Time of Flight) technology, which can accurately detect the distance between the sensor and the target in a short period of time.

Specifications





Wireless Transmission

Communication Protocol

LoRaWAN,LoRa TDMA Networking

Frequency

CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4

Tx Power

20dBm (915) / 16dBm (868) / 17dBm (470)

Mode

OTAA/ABP Class A

Probe arameters

Range

0-6m

Accuracy

1cm



Operation

Configuration

NFC Configuration via Mobile App



Physical Characteristics

Power Supply

ER26500 Li-SOCl2 8500 mAh battery

Battery Life

3 years

Operating Temperature

-30°C to 70°C

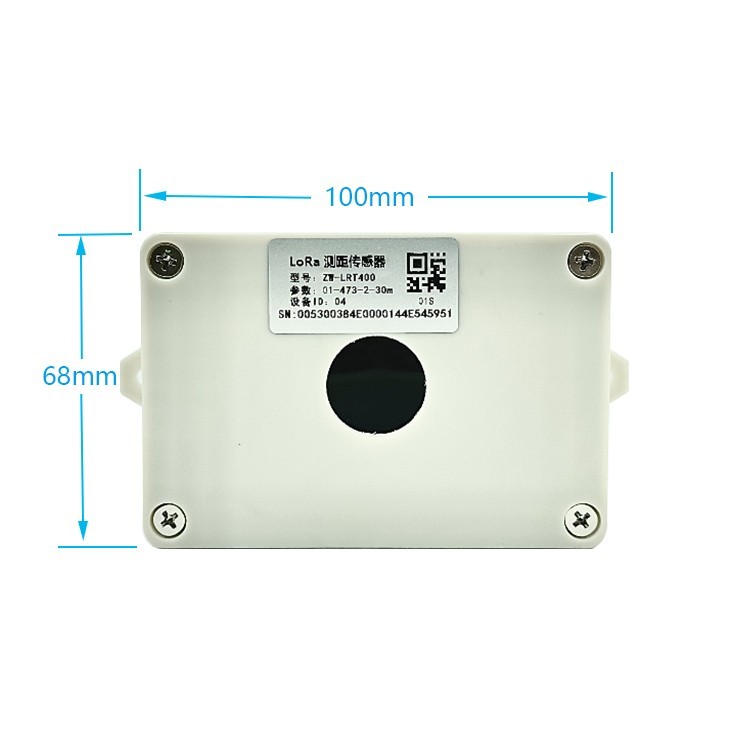

Dimensions

100x68x40  mm

Installation

Wall hanging and holding pole
