Soil temperature and moisture sensor

CO2 sensor2.jpgsoil moisture sensor6.jpgsoil moisture sensor7.jpgsoil moisture sensor8.jpgsoil moisture sensor10.jpg

Specifications






Attribute

Customized support

OEM, ODM, OBM

Name

Soil Temperature Humidity EC Sensors Soil Moisture Conductivity Sensor

Application

Moisture sensor

Output signal

4-20mA/0-5V/0-10V/RS485

Operation temperature

-40~+60

Response time

1s

Soil moisture

Range

0-100%

Repeatability

0.1%

Detection accuracy

±2% within 0-50%, @ (brown soil, 30%, 25)

±3% within 50-100%, @ (brown soil, 60%, 25)

Soil temperature

Range

-40~80

Repeatability

0.1

Detection accuracy

±0.5(25)

Soil EC

Range

0-20000μS/cm

Repeatability

10μS/cm

Detection accuracy

±3% in the range of 0-10000μS/cm;

±5% in the range of 10000-20000μS/cm



Physical Characteristics

Power Supply

5-30VDC

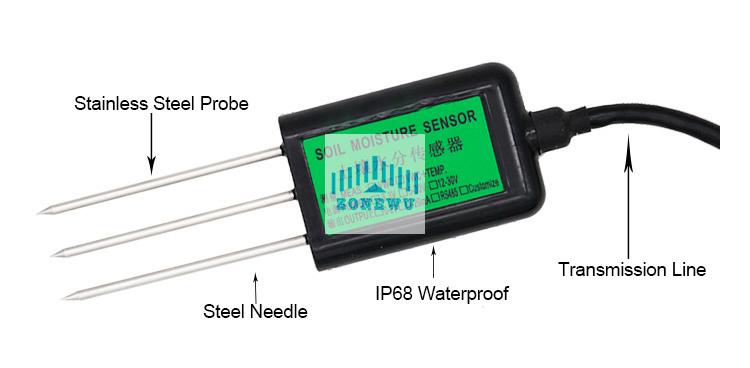

Probe material

304 stainless steel

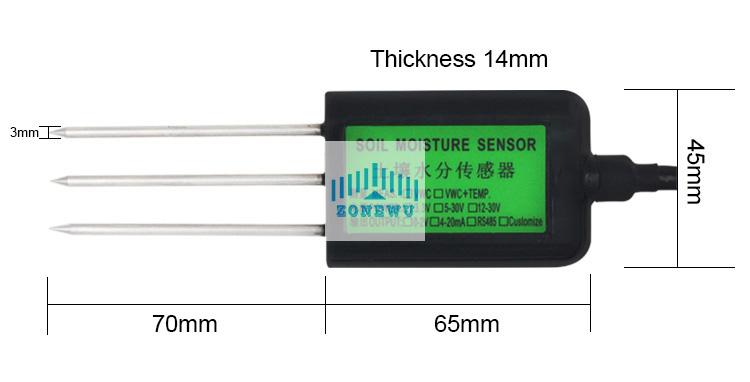

Physical dimensions

45*15*123mm
