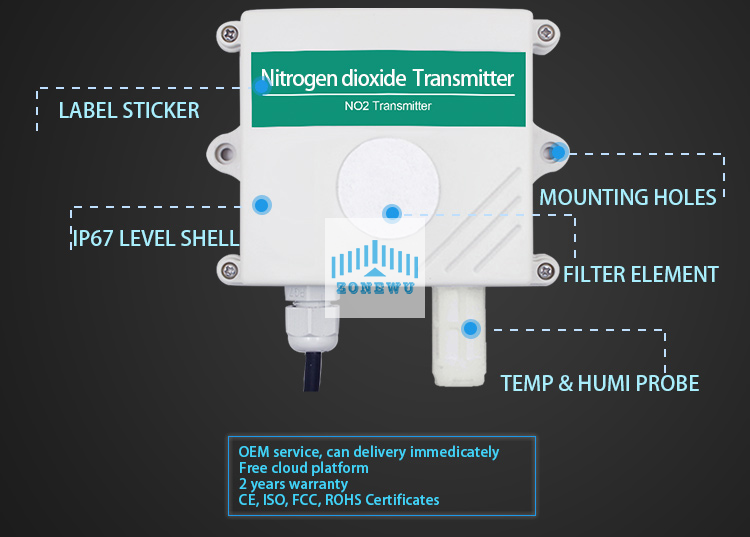

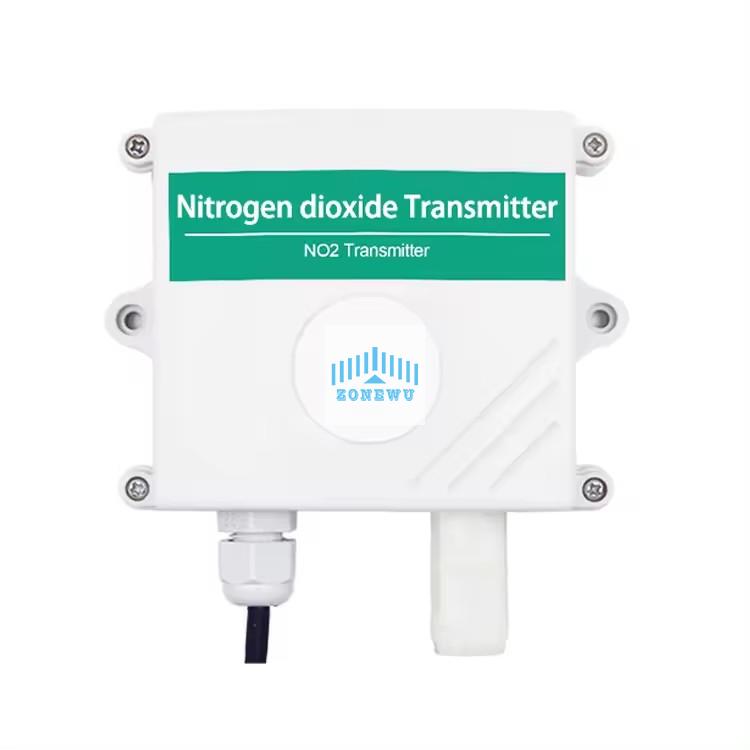

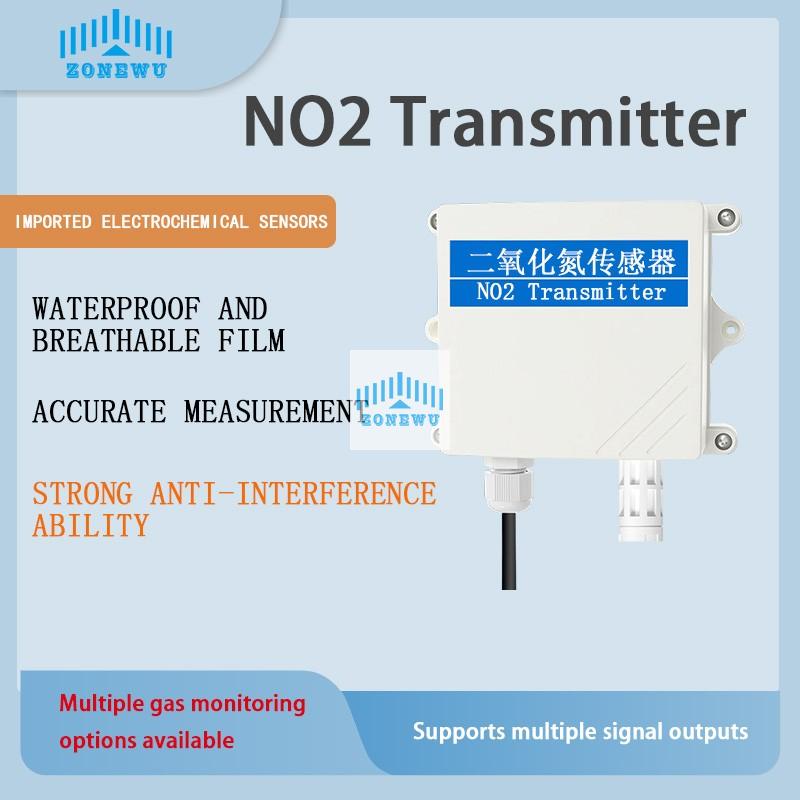

Nitrogen dioxide transmitter

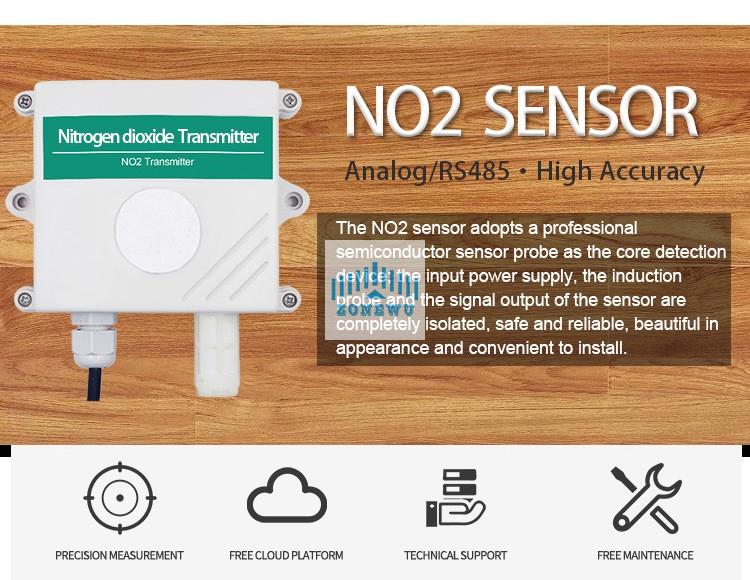

The nitrogen dioxide transmitter adopts imported top brand electrochemical nitrogen dioxide sensors, which have the characteristics of rapid response, sensitivity, and strong anti-interference ability. After our company's unique compensation algorithm and multi-stage standard gas calibration, it also has the characteristics of long life, high precision, high repeatability, and high stability. Suitable for situations that require monitoring of nitrogen dioxide leakage concentration.

Specifications

Attribute
Customized support	OEM, ODM, OBM
Name	Nitrogen Dioxide Detector Gas Meter No2 Detectors Digital NO2 Sensor
Detecting Gas	NO2

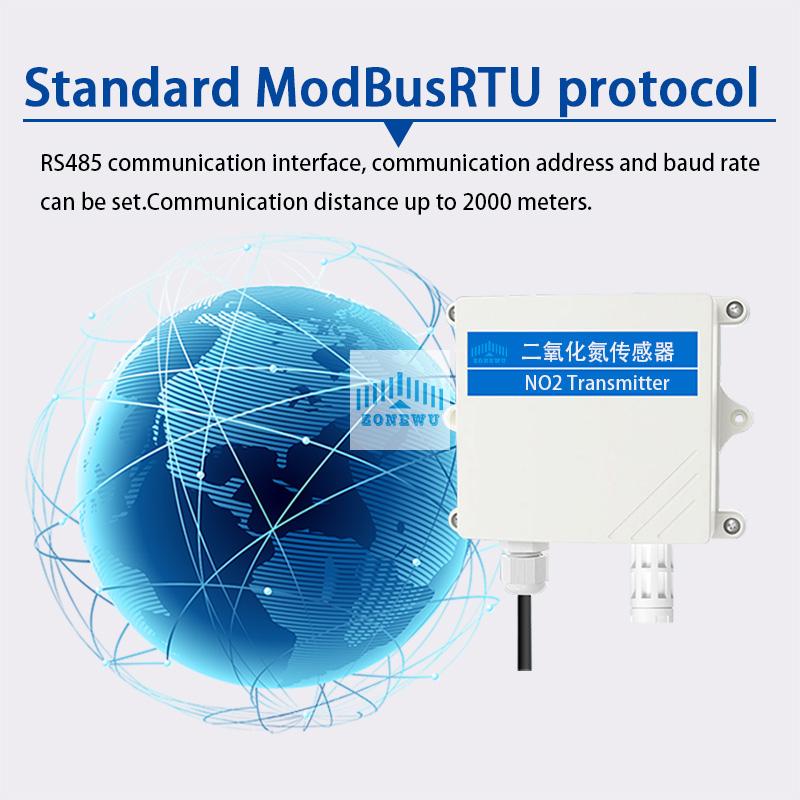

Output signal	4-20mA/0-5V/0-10V/RS485
Working temperature	-20~+50 ℃, 0-90% RH (no condensation)
Response time	20ppm: ≤30S, 2000ppm: ≤60S
Application	nitrogen dioxide detection
NO2 Measurement
Range	0-20ppm/0-2000ppm
Resolution ratio	20ppm: 0.1ppm 2000ppm: 1ppm
Detection accuracy	±5%FS
Physical Characteristics
Power Supply	10-30VDC

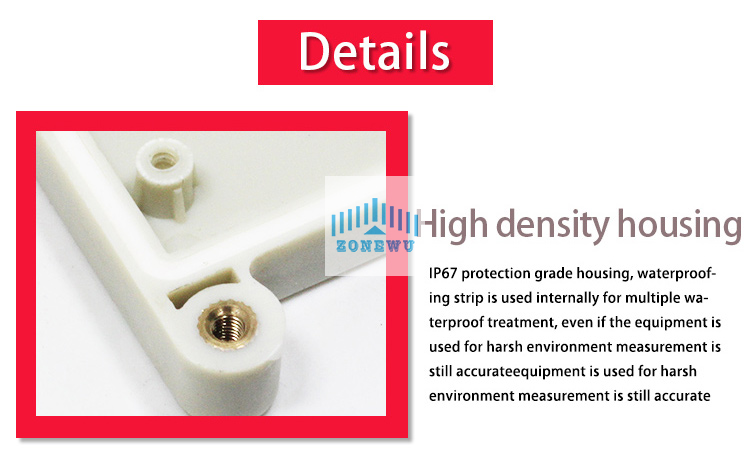

Material	ABS Plastic

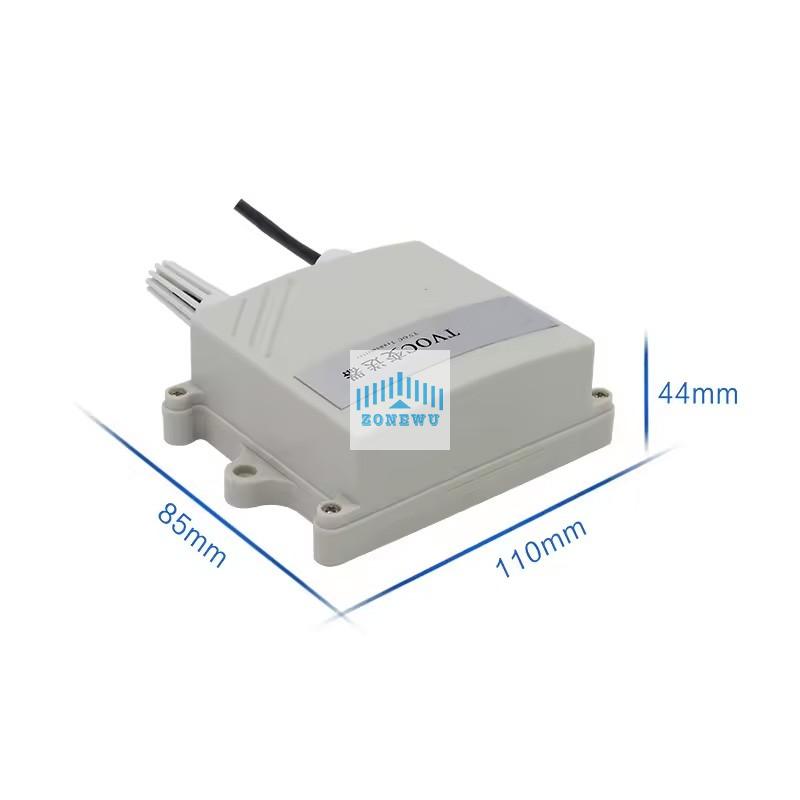

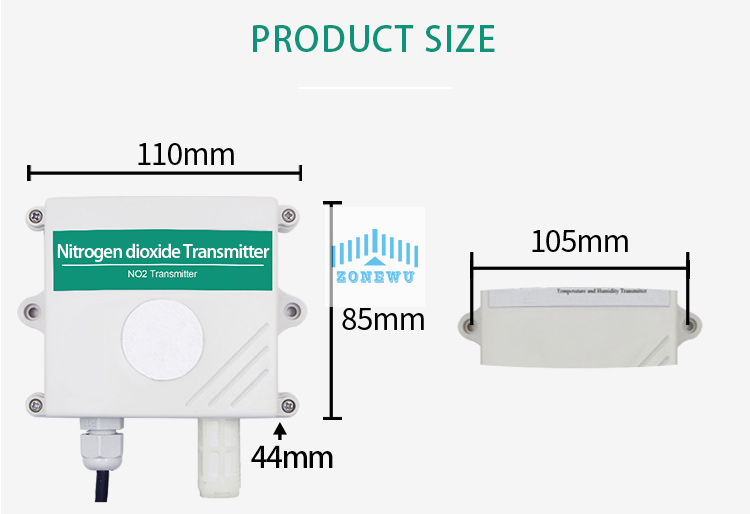

Physical dimensions	110x85x44mm
Installation	Wall mounted installation
