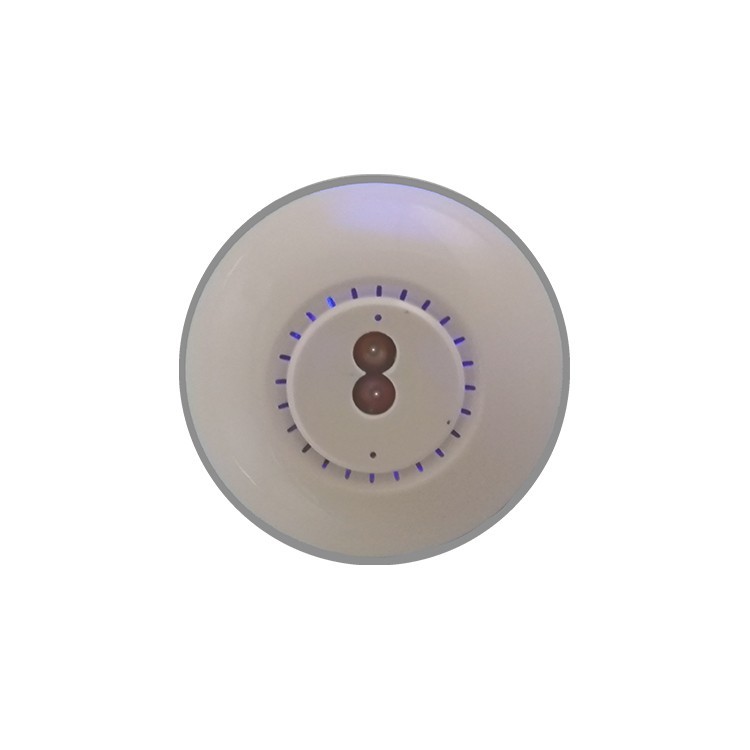

LoRa pedestrian flow collection sensor

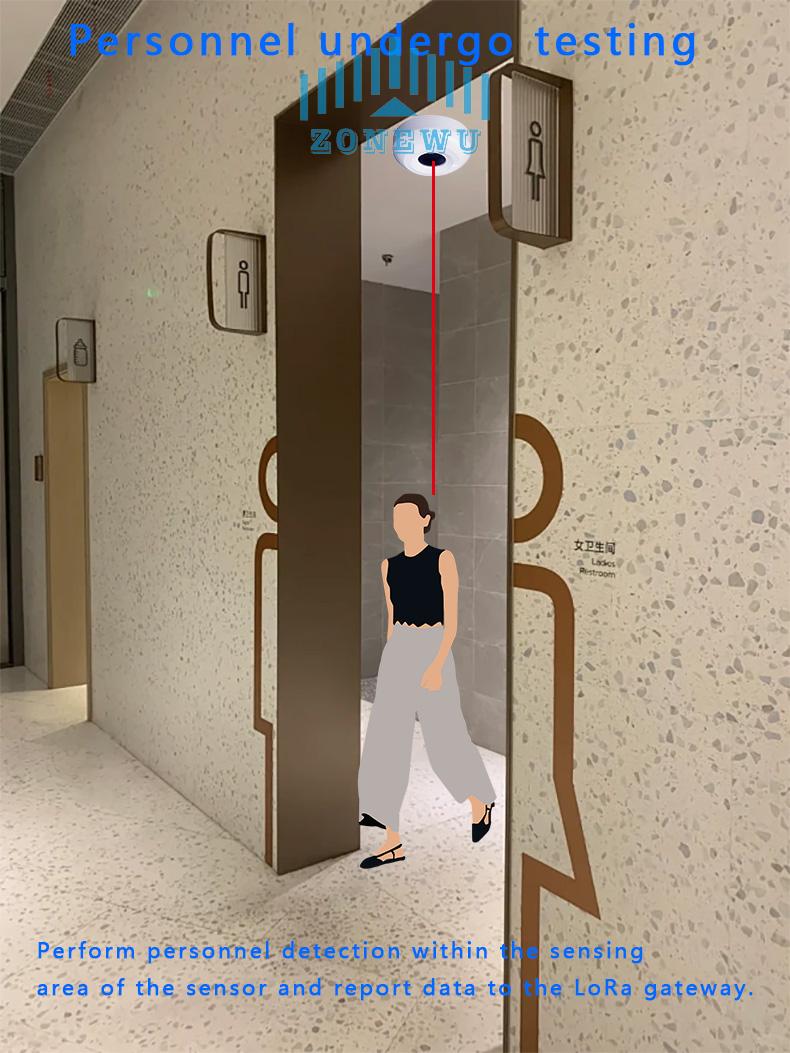

The ZW-ST803 pedestrian traffic collection terminal is a product of LPWAN (Low Power Wide Area Network).Based on LoRaTM spread spectrum modulation technology, terminals can communicate over ultra long distances. Using the principle of infrared laser photoelectric diffuse reflection, non-contact measurement is adopted. When in use, the detector is installed on the side of the inlet and outlet, either ceiling mounted or wall mounted, and fixed. When the human body enters the detection area, it can be sent and the data is transmitted to the gateway.

Product details

The ZW-ST803 pedestrian traffic collection terminal is a product of LPWAN (Low Power Wide Area Network).

Based on LoRaTM spread spectrum modulation technology, terminals can communicate over ultra long distances. Using the principle of infrared laser photoelectric diffuse reflection, non-contact measurement is adopted. When in use, the detector is installed on the side of the inlet and outlet, either ceiling mounted or wall mounted, and fixed. When the human body enters the detection area, it can be sent and the data is transmitted to the gateway.

This product is widely used in the M2M industry in the IoT industry chain, such as schools, hospitals, banks, gas stations, residential areas, stations, computer rooms, public toilets, and other application scenarios.

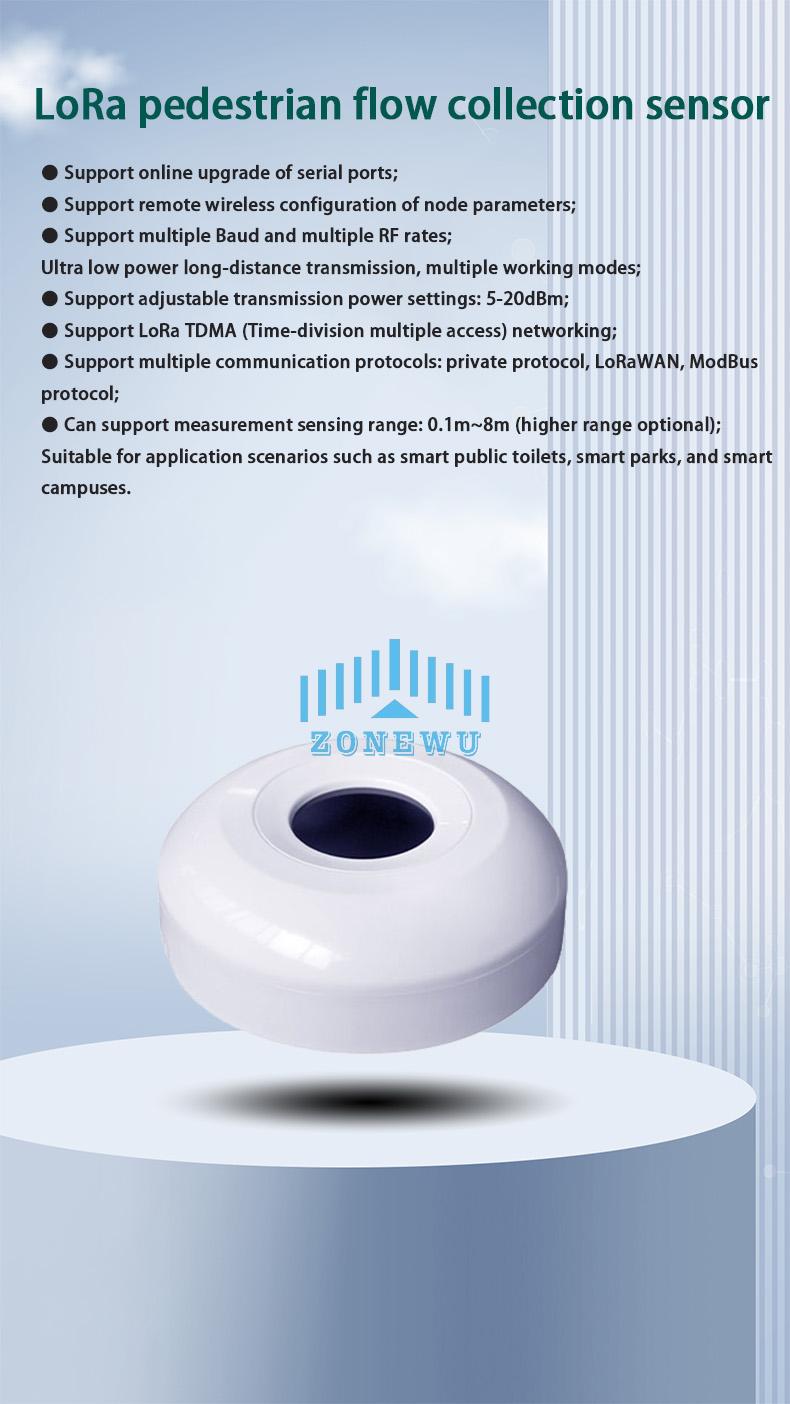

<a href=https://www.zonewu.com/en/LoRaWAN-Sensor.html target='_blank'>LoRa</a> pedestrian flow collection sensor1.jpg

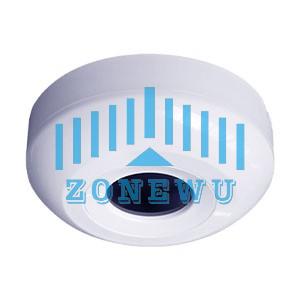

<a href=https://www.zonewu.com/en/LoRaWAN-Sensor.html target='_blank'>LoRa</a> pedestrian flow collection sensor3.jpg

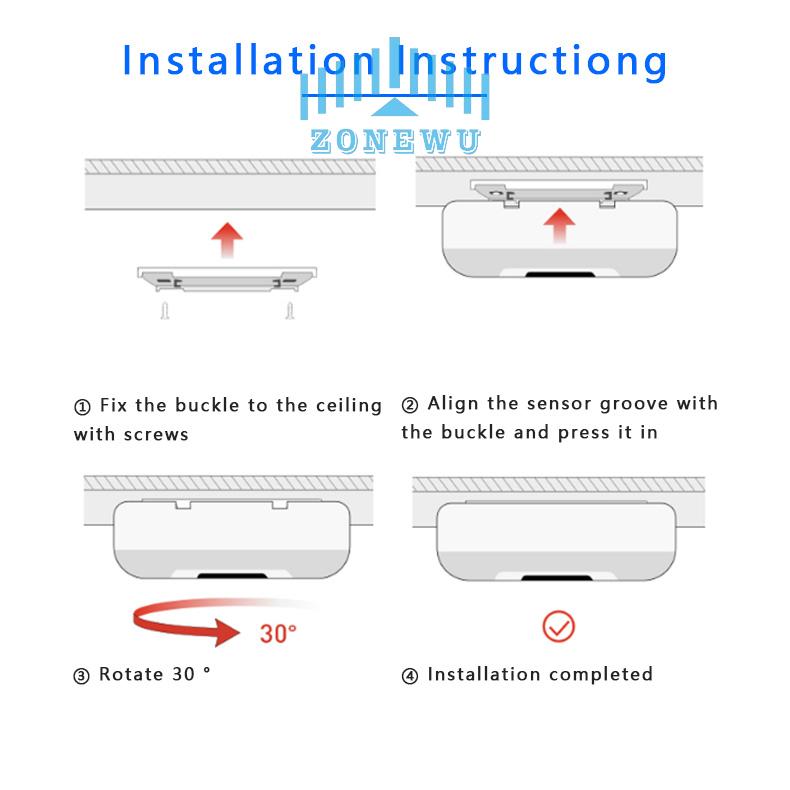

Installation Diagram

LoRa pedestrian flow collection sensor2.jpg

Specifications






Wireless Transmission

Communication Protocol

LoRaWAN,LoRa TDMA Networking

Frequency

CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4

Tx Power

20dBm (915) / 16dBm (868) / 17dBm (470)

Mode

OTAA/ABP Class A



Probe Arameters

Range

0-6m

Accuracy

1cm



Operation

Configuration

NFC Configuration via Mobile App、Local serial port, remote configuration



Physical Characteristics

Power Supply

12/24VDC

Operating Temperature

-30°C to 70°C

Dimensions

95x34  mm

Installation

Ceiling according to
