Concrete temperature and humidity sensor

The ZW-LRT200 concrete temperature and humidity monitor is a product of LPWAN (Low Power Wide Area Network).Based on LoRaTM spread spectrum modulation technology, terminals can communicate over ultra long distances. A wireless temperature and humidity monitoring instrument that integrates data collection and monitoring. The product can be externally connected with 3 digital DS18B20 temperature probes and 1 AM2301A temperature and humidity sensor, with high detection accuracy, stable performance, and low power consumption. Built in battery with charging function. Equipped with low battery voltage alarm, can preset threshold values according to the on-site environment, actively report abnormalities, and has good stability and reliability. Adopting aviation joint method, installation is simple and convenient.

Product details

The ZW-LRT200 concrete temperature and humidity monitor is a product of LPWAN (Low Power Wide Area Network).

Based on LoRaTM spread spectrum modulation technology, terminals can communicate over ultra long distances. A wireless temperature and humidity monitoring instrument that integrates data collection and monitoring. The product can be externally connected with 3x digital DS18B20 temperature probes and 1x temperature and humidity sensor, with high detection accuracy, stable performance, and low power consumption. Built in battery with charging function. Equipped with low battery voltage alarm, can preset threshold values according to the on-site environment, actively report abnormalities, and has good stability and reliability. Adopting aviation joint method, installation is simple and convenient.

This product is widely used in the M2M industry and is widely used in the IoT industry chain, such as temperature monitoring during the pouring of large volume concrete foundation caps and frames, and temperature monitoring during the pouring of bridges and piers during construction.

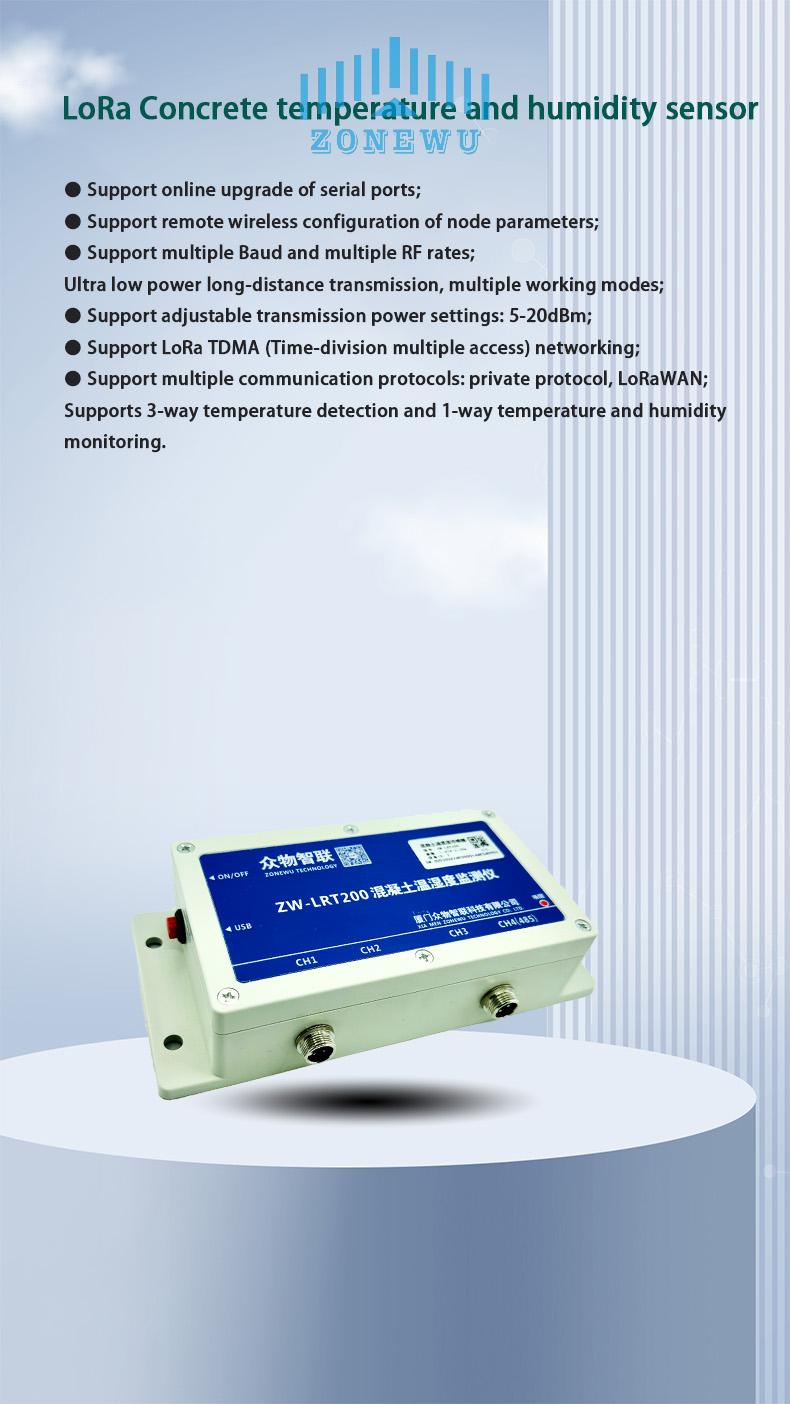

<a href=https://www.zonewu.com/en/LoRaWAN-Sensor.html target='_blank'>LoRa</a> Concrete temperature and humidity sensor 1.jpg


Specifications







Wireless Transmission

Communication Protocol

LoRaWAN,LoRa TDMA Networking

Frequency

CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4

Tx Power

20dBm (915) / 16dBm (868) / 17dBm (470)

Mode

OTAA/ABP Class A

Temperature Sensor

Range

-55°C to +125°C

Accuracy

±0.5°C

Temperature and Humidity Sensor

Humidity Range

0~100% RH

Humidity Accuracy

±3% RH

Temperature Range

-40~+80 ℃

Temperature Accuracy

±0.3 ℃



Operation

Configuration

NFC Configuration via Mobile App



Physical Characteristics

Power Supply

ER26500 Li-SOCl2 8500 mAh battery

Battery Life

3 years

Operating Temperature

-30°C to 70°C

Dimensions

158x90x46  mm

Installation

Wall hanging and holding pole
