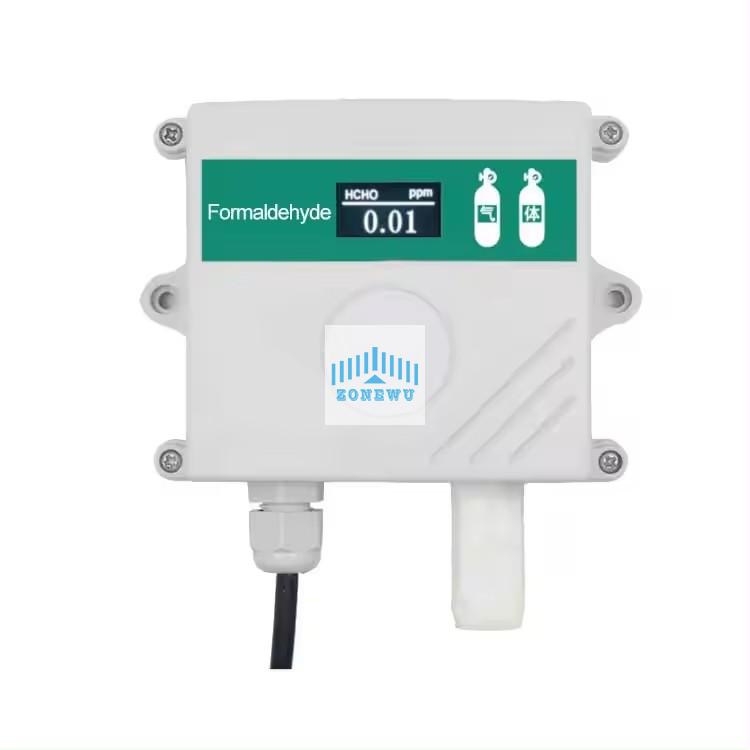

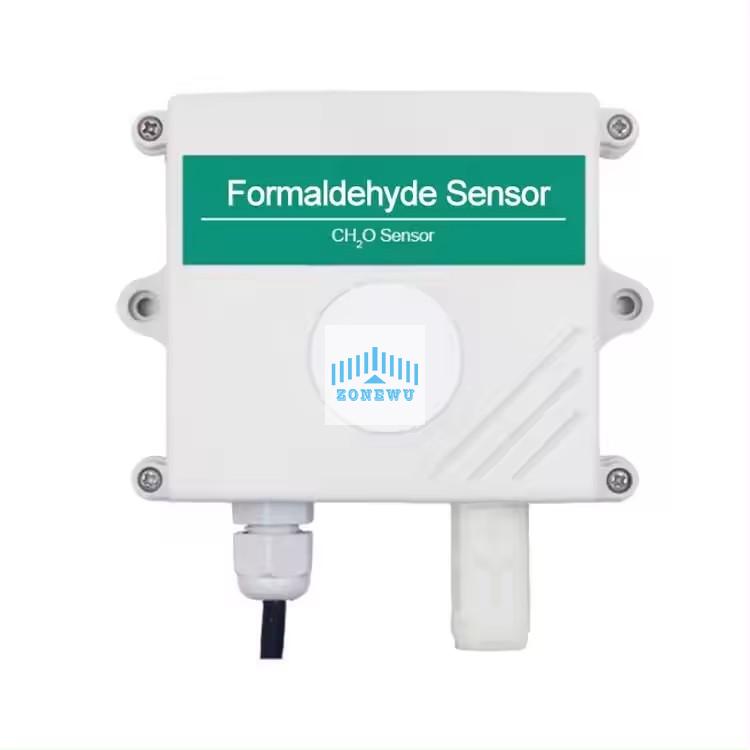

Formaldehyde sensor

High measurement accuracy with repeatability up to ± 2%;
Range 0~5ppm, other ranges can also be customized;
On site power supply adopts 10~30V DC wide voltage power supply, which can adapt to various DC power sources on site;

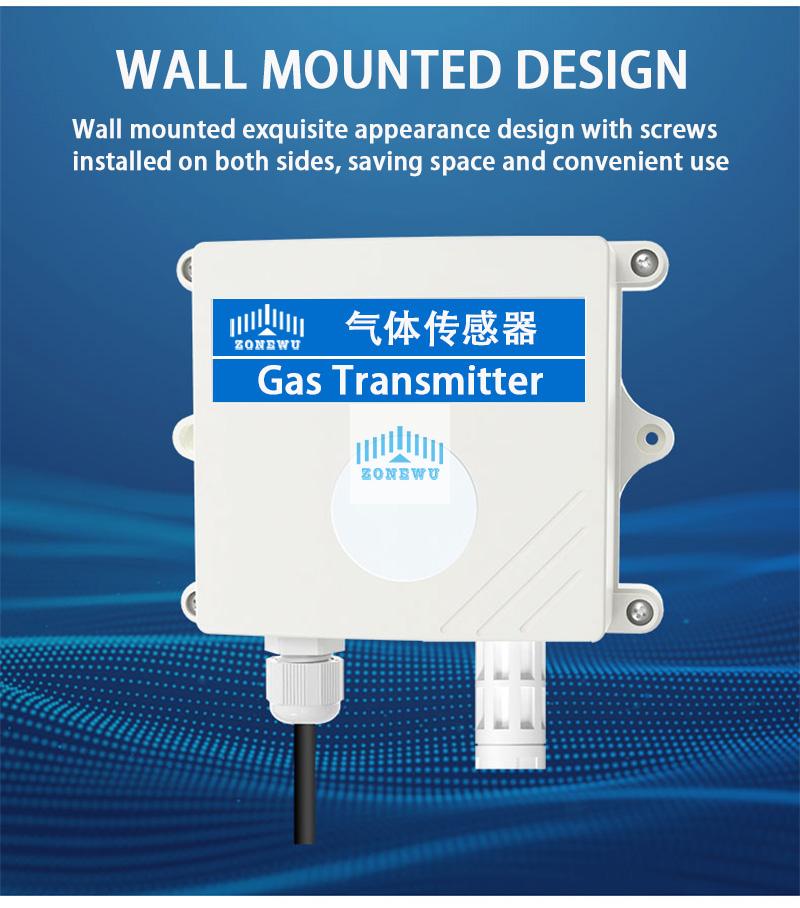

Adopting a wall mounted waterproof shell, it is easy to install and has a high level of protection, which can be applied to harsh on-site environments.

CO2 sensor2.jpg Formaldehyde sensor6.jpg Formaldehyde sensor7.jpg

Specifications

Attribute
Customized support	OEM, ODM, OBM
Name	CH₂O formaldehyde test analyzer hcho gas sensor detector
Detecting Gas	CH₂O

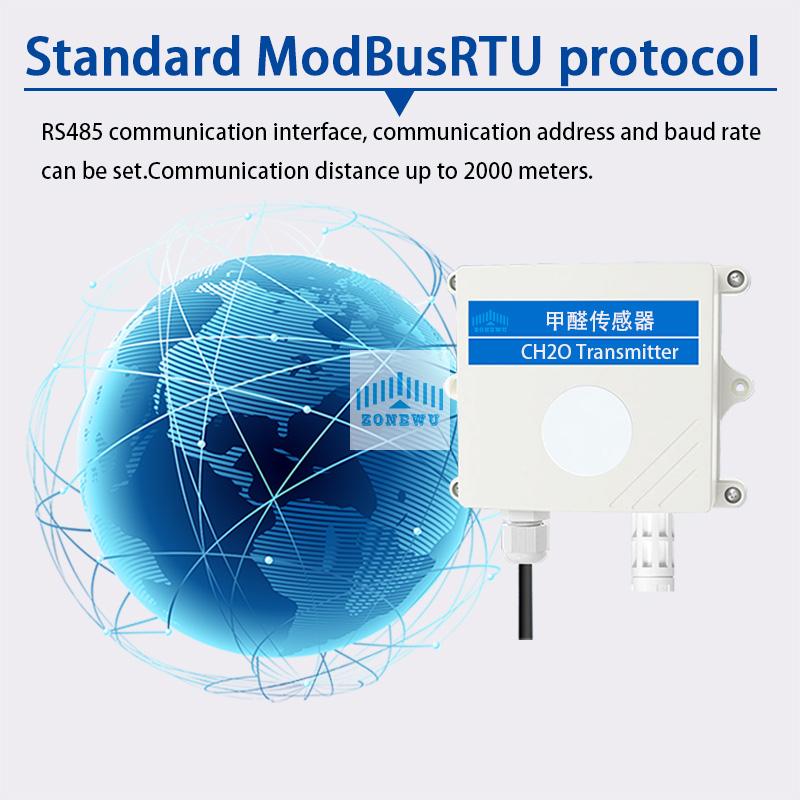

Output signal	4-20mA/0-5V/0-10V/RS485
Working temperature	-20~+50 ℃, 0-90% RH (no condensation)
Response time	≤35s
Application	Formaldehyde gas detection
CH₂O Measurement
Range	0~5ppm
Repeatability	1ppm
Detection accuracy	±5%FS
Physical Characteristics
Power Supply	10-30VDC
Material	ABS Plastic
Physical dimensions	110x85x44mm
Installation	Wall mounted installation
